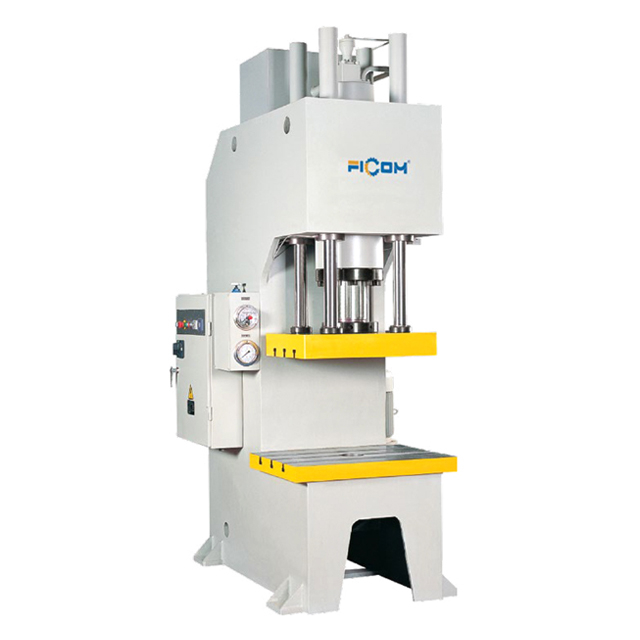

YL41 Series Single-column Hydraulic Straightening And Mounting Press

It adopt intellegient structure,c type single arm frame structure, has the feature such as good reliable,simple structure and easy operation.
The frame is entirely welded with steel plates and treated to relive stress by tempering.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points.
Availability:
Quantity:
Inquire Add to Basket

  • YL41

  • FICOM

Overview

· Hydraulic system adopt pressure pre-release device,low impact of hydraulic pressure.

· Independent electrical control, reliable,audio-visual and convenient for maintenance.

· Centralized button control system,with adjustment,hand and semi-auto operateion modes at operator’s choice(semi-automatic has two type tech:set-stroke single and set-presser single).

· The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.



-1

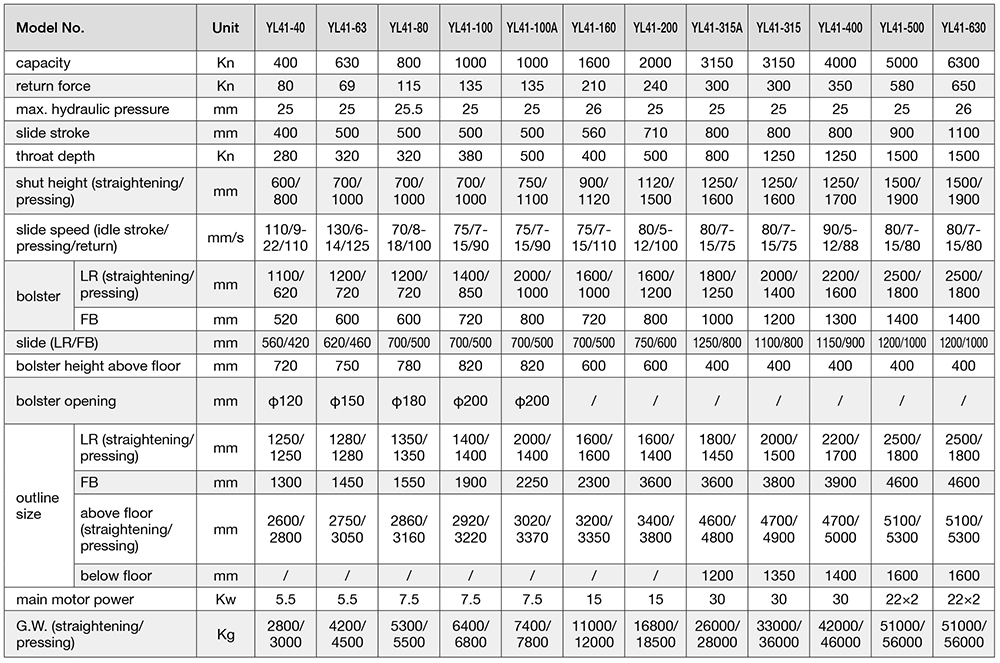

Technical Parameters


B
