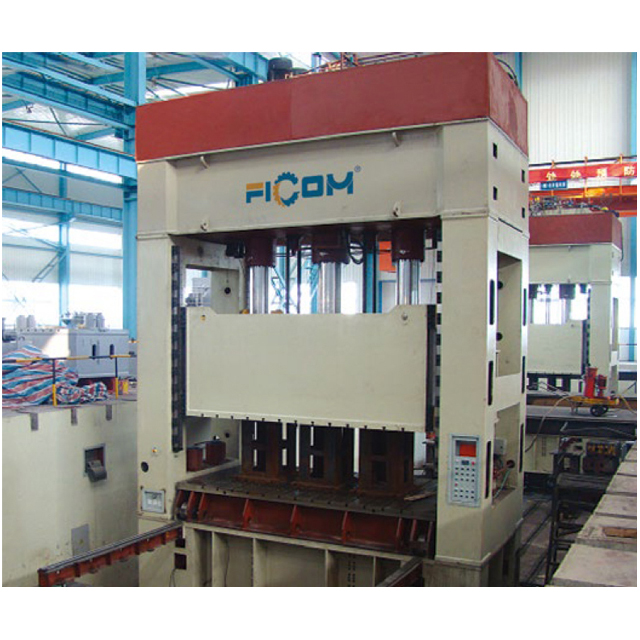

YL34
FICOM
· Four-angle and eight-side guide rail in high precision and with strong capacity against deflection,concentrated lubrication.
· New type of oil cylinder sealing components marked by high reliability and long service life.
· Sliding blocks operating in high speed, ensuring high efficiency.
· The slide operating pressure, no-load quick travel and low-speed movement can be adjusted according to technological requirements.
· Hydraulic cushion is fitted beneath the worktable; adequate knockout hole and hydraulic cushion are prepared on the plate of worktable with the operating modes including drawing, ejection and no ejection.
· Four-angle and eight-side guide rail in high precision and with strong capacity against deflection,concentrated lubrication.
· New type of oil cylinder sealing components marked by high reliability and long service life.
· Sliding blocks operating in high speed, ensuring high efficiency.
· The slide operating pressure, no-load quick travel and low-speed movement can be adjusted according to technological requirements.
· Hydraulic cushion is fitted beneath the worktable; adequate knockout hole and hydraulic cushion are prepared on the plate of worktable with the operating modes including drawing, ejection and no ejection.
