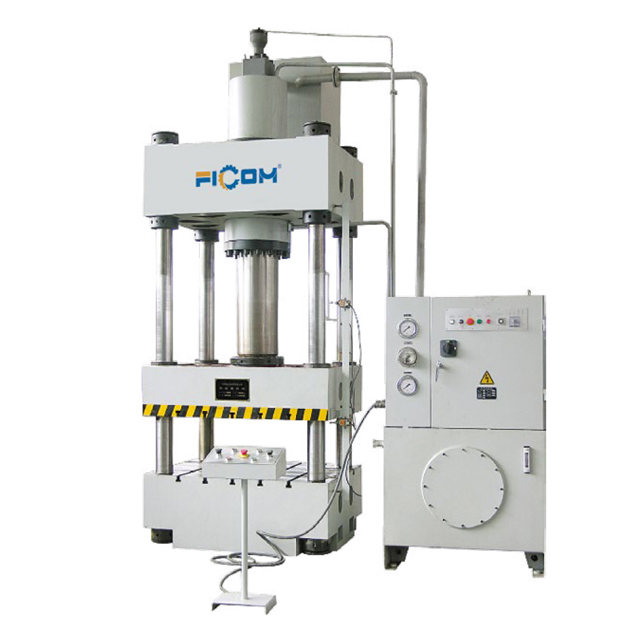

YL32 Series Four-column Hydraulic Press

Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio.
Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
Independent electrical control, reliable, audio-visual and convenient for maintenance.
Availability:
Quantity:
  • YL32

  • FICOM

Overview

· Centralized button  control system,with adjustment,hand and semi-auto operation modes at operator's choice.

· Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.

· The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.



-1

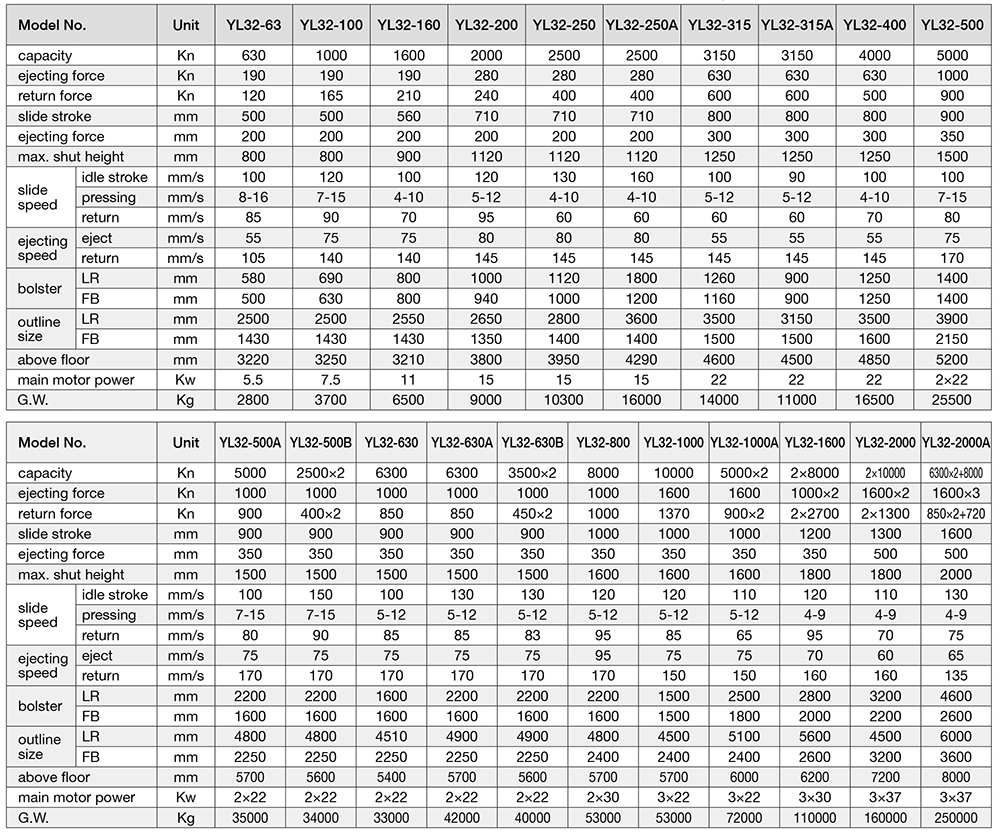

Technical Parameters

B
