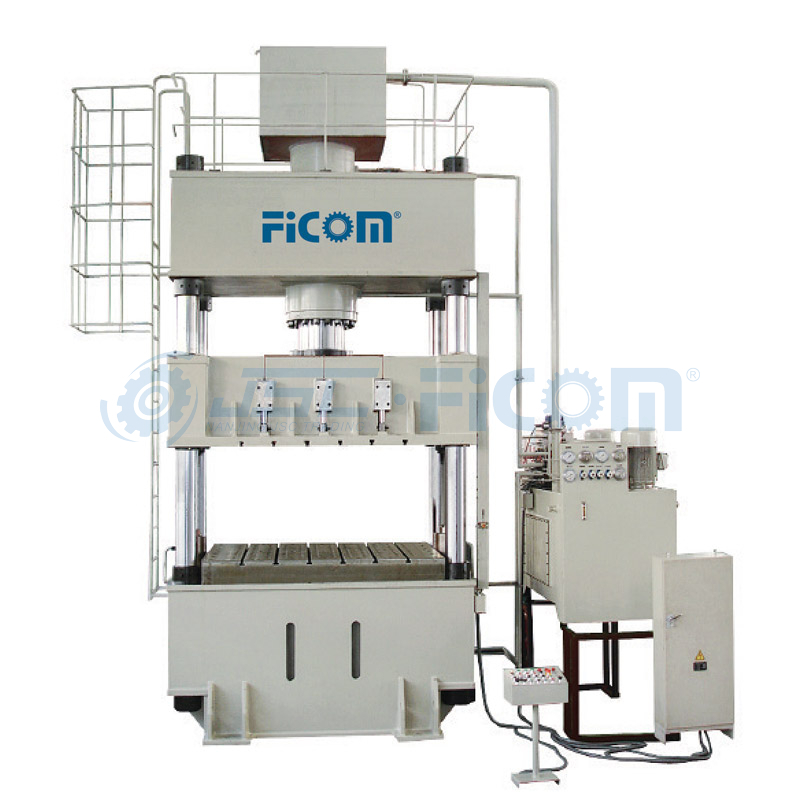

Computer optimized structure design; four-column structure: simple, economic and practical.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points,Hydraulic integrated system is adopted seperate control unit.
Quantity: | |
---|---|
· Independent electrical control, reliable,audio-visual and conve-nient for maintenance.
· Centralized button control system,with adjustment,hand and semi-auto operateion modes at operator’s choice(semi-automatic has two type tech:set-stroke single and set-pressure single).
· The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological require-ments.
Model No. | Unit | YL27-100 | YL27-160 | Y27-200 | YL27-250 | YL27-315 | YL27-400 | |
rated force | Kn | 1000 | 1600 | 2000 | 2500 | 3150 | 4000 | |
return force | Kn | 160 | 210 | 240 | 400 | 600 | 500 | |
ram stroke | mm | 510 | 560 | 710 | 710 | 800 | 800 | |
daylight | mm | 800 | 900 | 1120 | 1120 | 1250 | 1250 | |
cushion force | Kn | 400 | 630 | 630 | 1000 | 1250 | 1250 | |
cushion return force | Kn | 147 | 250 | 250 | 320 | 360 | 360 | |
cushion stroke | mm | 200 | 200 | 250 | 250 | 300 | 300 | |
ram speed | idle stroke | mm/s | 100 | 110 | 150 | 130 | 100 | 130 |
pressing | mm/s | 7~15 | 4~10 | 5~12 | 7~15 | 5-12 | 4~10 | |
return | mm/s | 85 | 65 | 95 | 90 | 60 | 70 | |
cushion speed | knock out | mm/s | 35 | 25 | 38 | 40 | 30 | 30 |
return | mm/s | 100 | 65 | 95 | 110 | 100 | 100 | |
table size(L-R×F-B) | mm | 690×630 | 800×800 | 1000×940 | 1100×1000 | 1260×1160 | 1250×1250 | |
cushion area(L-R×F-B) | mm | 350×350 | 500×500 | 670×670 | 670×670 | 820×820 | 820×820 | |
dimensions (L-R×F-B×Height above floor) | mm | 2500×1150 ×3400 | 2890×1250 ×3700 | 3100×1350 ×4000 | 3250×1350 ×4200 | 3100×2100 ×4800 | 3150×2300 ×5100 | |
motor power | Kw | 7.5 | 11 | 15 | 22 | 22 | 22 | |
G.W. | Kg | 5500 | 8200 | 11000 | 14000 | 18000 | 22000 |
Model No. | Unit | YL27-400A | YL27-500 | YL27-500A | YL27-500B | YL27-630 | YL27-630A | |
rated force | Kn | 4000 | 5000 | 5000 | 2500×2 | 6300 | 3150×2 | |
return force | Kn | 500 | 900 | 900 | 400×2 | 850 | 600×2 | |
ram stroke | mm | 800 | 900 | 900 | 900 | 900 | 900 | |
daylight | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | |
cushion force | Kn | 1250 | 2000 | 2000 | 1000×2 | 1250×2 | 1250×2 | |
cushion return force | Kn | 360 | 780 | 780 | 320×2 | 360×2 | 360×2 | |
cushion stroke | mm | 300 | 350 | 350 | 350 | 350 | 350 | |
ram speed | idle stroke | mm/s | 130 | 120 | 150 | 150 | 130 | 140 |
pressing | mm/s | 4~10 | 7~15 | 7~15 | 7~15 | 5~12 | 5~12 | |
return | mm/s | 70 | 80 | 90 | 90 | 85 | 85 | |
cushion speed | knock out | mm/s | 30 | 37 | 37 | 37 | 30 | 30 |
return | mm/s | 100 | 95 | 95 | 110 | 105 | 105 | |
table size(L-R×F-B) | mm | 1750×1250 | 1400×1400 | 2200×1600 | 2200×1600 | 1600×1600 | 2500×1800 | |
cushion area(L-R×F-B) | mm | 1270×820 | 970×970 | 1720×1120 | 1720×1120 | 1120×1120 | 2020×1270 | |
dimensions (L-R×F-B×Height above floor) | mm | 3700×2300 ×5250 | 5800×2600 ×5350 | 6600×2600 ×5550 | 6600×2600 ×5450 | 4150×2600 ×5600 | 5100×2600 ×6200 | |
motor power | Kw | 22 | 2×22 | 2×22 | 2×22 | 2×22 | 2×22 | |
G.W. | Kg | 28000 | 33000 | 47000 | 44000 | 42000 | 70000 |
Model No. | Unit | YL27-800 | YL27-800A | YL27-1000 | YL27-1250 | YL27-1500 | YL27-2000 | |
rated force | Kn | 8000 | 4000×2 | 10000 | 6300×2 | 5000×3 | 6300×2 +8000 | |
return force | Kn | 1000 | 500×2 | 1350 | 850×2 | 900×3 | 850×2 +720 | |
ram stroke | mm | 1000 | 1200 | 1000 | 1300 | 1500 | 1600 | |
daylight | mm | 1800 | 1800 | 1800 | 1800 | 2000 | 2000 | |
cushion force | Kn | 1600×2 | 1600×2 | 2000×2 | 2000×2 | 1250×4 | 1600×4 | |
cushion return force | Kn | 600×2 | 600×2 | 580×2 | 580×2 | 360×4 | 600×4 | |
cushion stroke | mm | 400 | 400 | 400 | 400 | 500 | 500 | |
ram speed | idle stroke | mm/s | 150 | 150 | 130 | 150 | 120 | 130 |
pressing | mm/s | 5~12 | 5~12 | 5~12 | 5~12 | 5~12 | 4~10 | |
return | mm/s | 95 | 95 | 85 | 85 | 70 | 75 | |
cushion speed | knock out | mm/s | 30 | 30 | 30 | 37 | 37 | 28 |
return | mm/s | 85 | 80 | 105 | 125 | 125 | 75 | |
table size(L-R×F-B) | mm | 2200×1600 | 3500×2000 | 2500×1800 | 3500×2000 | 4000×2600 | 4600×2600 | |
cushion area(L-R×F-B) | mm | 1570×1120 | 2920×1420 | 2020×1270 | 2920×1420 | 3220×2020 | 3820×2020 | |
dimensions (L-R×F-B×Height above floor) | mm | 5200×2800 ×6400 | 6500×2800 ×7000 | 6500×3000 ×6800 | 5200×3200 ×7300 | 5800×3500 ×8000 | 6500×3600 ×8600 | |
motor power | Kw | 2×30 | 2×30 | 3×22 | 3×30 | 3×37 | 3×37 | |
G.W. | Kg | 75000 | 105000 | 95000 | 140000 | 175000 | 270000 |
