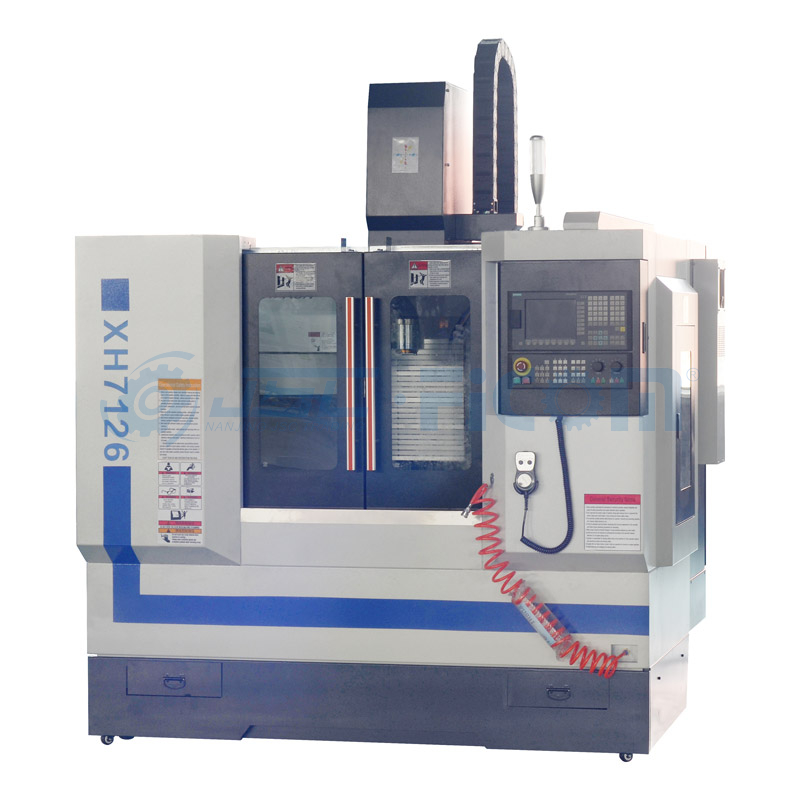

XH7126
FICOM
Model | XH7126 |
Main Motor Power KW | 3.7KW |
Spindle Max. Rotating Speed | Servo Spindle 6000rpm |
Z Motor Torque | 7.7N.m |
X Motor Torque | 6N.m |
Y Motor Torque | 6N.m |
Spindle Taper | BT40 |

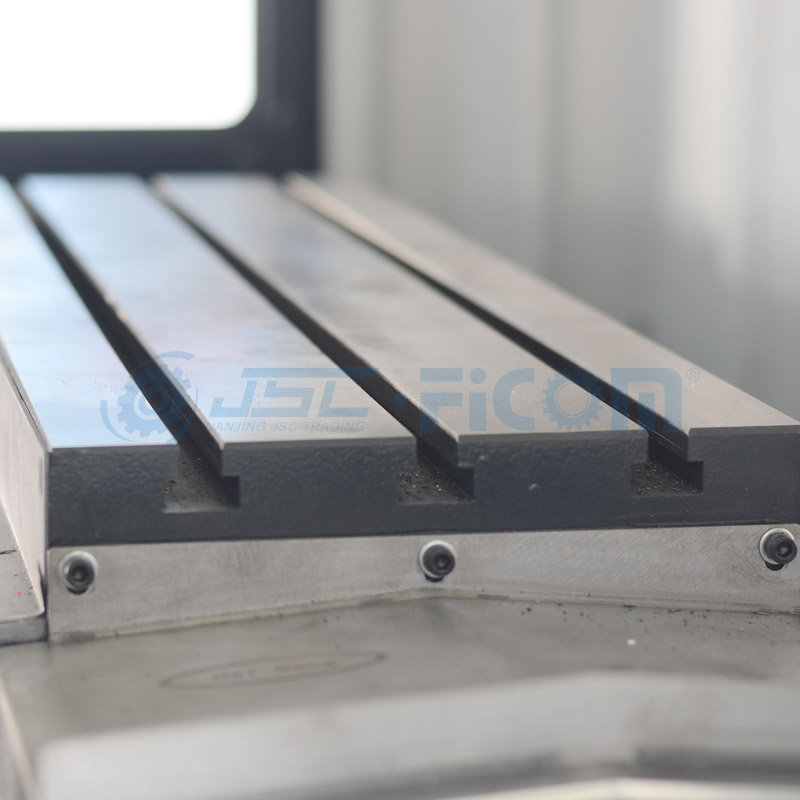

Worktable Size | 800×260mm |
Travel (Longitudinal X/Horizontal Y/Vertical Z) | 450×320×420mm |
Distance of Spindle Axis to Guideway Plane | 360mm |
Distance of Spindle End to Worktable | 90-470mm |
The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
Positioning Accuracy | 0.02mm |
Repeated Positioning Accuracy | 0.01mm |
Machine Overall Dimension (L×W×H) mm | 2600×1950×2400 |
Machine Net Weight KG | 2400 |
Magazine Capacity | 10/12 (Bamboo Hat) |
System Configuration | Siemens 808D |
External Protection Level | Full Closed |
