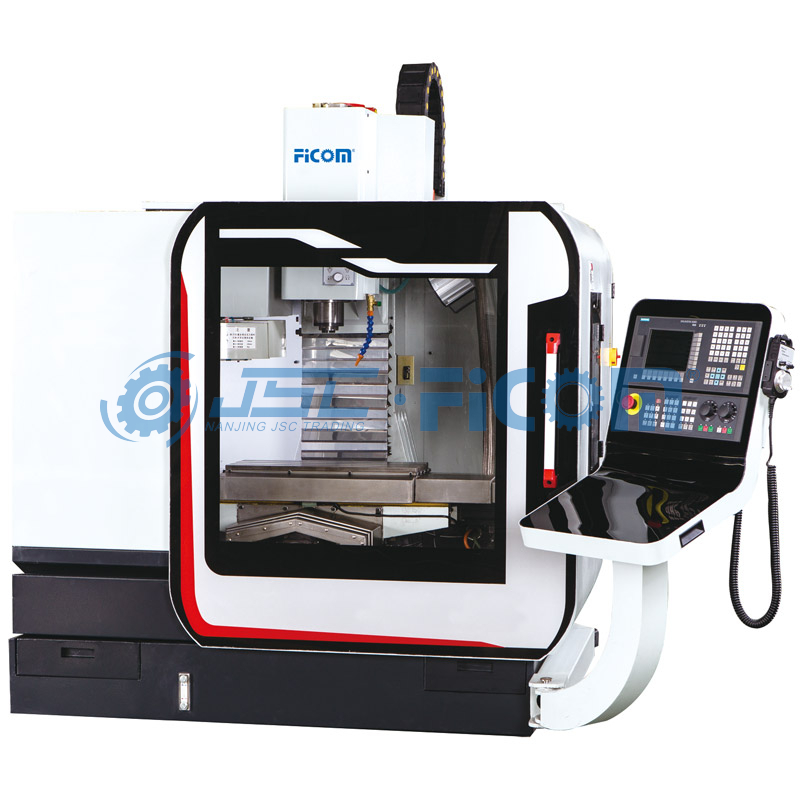

Model No. | XH7125 | XK7125 | XH7132 | XK7132 |
table travel(X,Y,Z) | 400×240×400mm | 400×240×400mm | 620×350×500mm | 620×350×500mm |
table size | 600×250mm | 600×250mm | 920×320mm | 920×320mm |
number/width.distance of T-slot | 3-14-75mm | 3-14-75mm | 3-14-85mm | 3-14-85mm |
distance from spindle nose to table surface | 60-460mm | 60-460mm | 100-600mm | 100-600mm |
distance from spindle axis to column guideway | 325mm | 325mm | 395mm | 395mm |
taper of spindle | BT30 | BT30 | BT40 | BT40 |
spindle speed range | 60-6000rpm | 60-6000rpm | 60-6000rpm | 60-6000rpm |
spindle motor power | (AC servo)3.7Kw | (AC servo)3.7Kw | (AC servo)3.7Kw | (AC servo)3.7Kw |
rapid feed speed | 60000mm/min | 60000mm/min | 18000mm/min | 18000mm/min |
feed speed | 2.5-3000mm/min | 2.5-3000mm/min | 2.5-3000mm/min | 2.5-3000mm/min |
tool magazine capability | 10qty | 16qty | ||
max.dimension of tool | Φ92mm | Φ120×200mm | ||
max.weight of tool | 5Kg | 8Kg | ||
position accuracy | ±0.0015mm | ±0.02mm | ±0.015mm | ±0.02mm |
repeat positioning accuracy | 0.075mm | 0.01mm | 0.0075mm | 0.01mm |
overall dimension | 1650×1600×2000mm | 1650×1600×2000mm | 2100×1970×2170mm | 2100×1970×2170mm |
G.W. | 1530Kg | 1450Kg | 2750Kg | 2650Kg |
taiwan drum-type tool magazine capability 10 tools | spindle speed is 6000 rpm | automatic intermittent lubrication | large flow coolant pump |

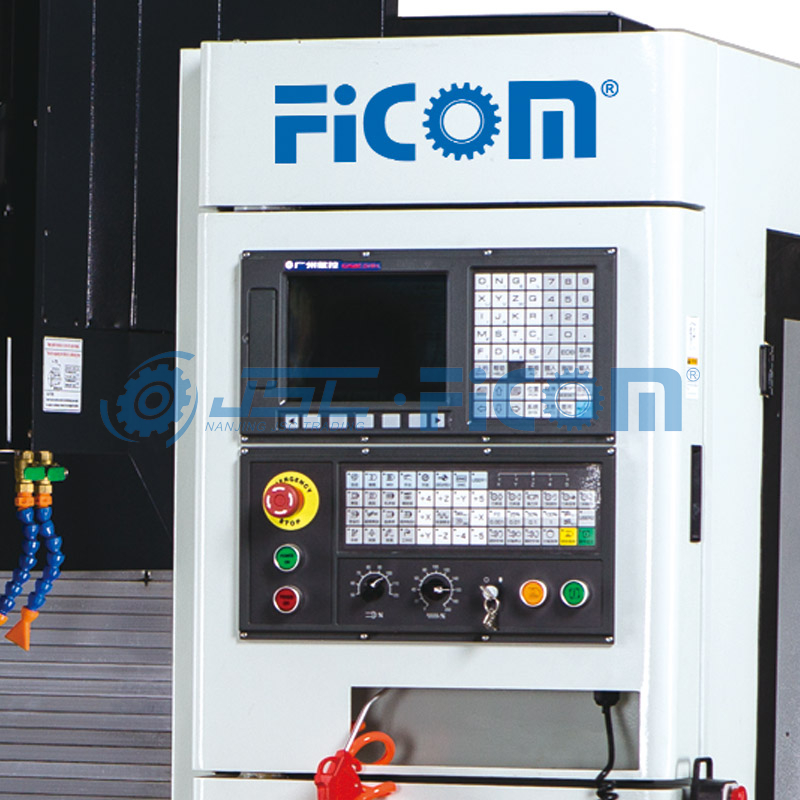

GSK 25I CNC system | RS232 interface |

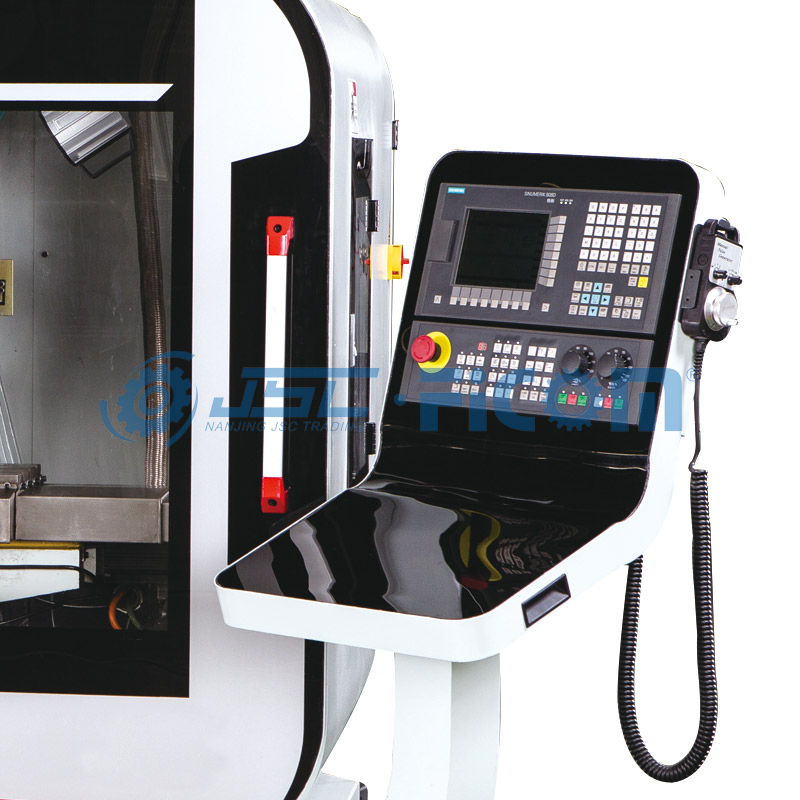

SIEMENS 808D or HNC-22M | SIEMENS 828D | KND-1000Ⅱ CNC system | self-made spindle 3000 rpm |
FANUC 0i mate-MD | KND-2000M CNC system | automatic chip conveyor | NC A axis |
disc-type tool magazine capability 16 tools |
