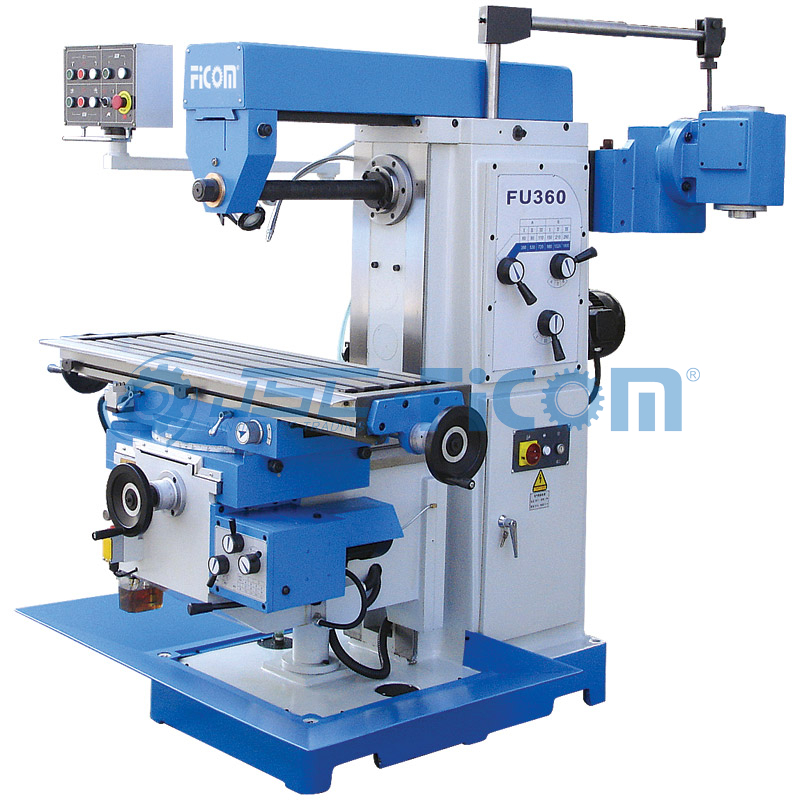

X6036
FICOM
| Model No. | X6036 |
| spindle taper | 7:24 ISO50 |
| distance from spindle center line to worktable | 0~420mm |
| distance from spindle center line to arm | 175mm |
| spindle speed | 12steps 60~1800rpm |
| worktable size | 1250mm×360mm |
| worktable travel longitudinal | 600mm |
| worktable travel cross | 250mm |
| worktable travel vertical | 420mm |
| worktable swivel angle | ±15°~±45° |
| worktable longitudinal/cross power feed | 8steps 22~55mm/min |
| rapid:810mm/min | |
| worktable elevating power feed | 590mm/min |
| worktable "T" slot number | 3 |
| worktable "T" slot width | 18mm |
| worktable "T" slot distance | 80mm |
| arm travel | 500mm |
| main moter | 4Kw |
| worktable power feed motor | 750W |
| worktable elevating moter | 1.1Kw |
| coolant pump | 90W |
| coolant flow | 25L/min |
| overall dimension(L×W×H)cm | 188×170×183 |
| N.W. | 2200Kg |
| drill chuck | drawbar | work lamp | coolant systemchip tray |
| X-axis mechanical power feed | Y-axis mechanical power feed | toolbox&tools | operation manual |
| quality certificate | packinglist |
| DRO | vise | milling collet chuck | rotary table |
| dividing head | 58 pcs clamping kits | keyless drill chuck |
