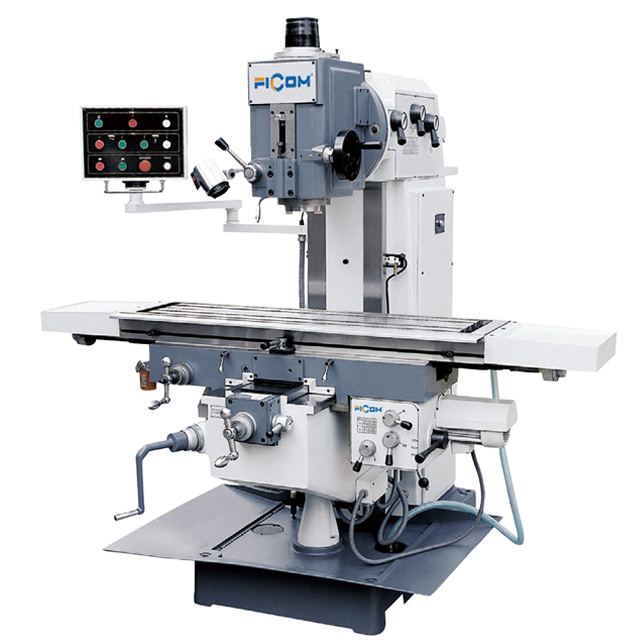

X5032 Universal Knee-type Milling Machine

Availability:
Quantity:
Inquire Add to Basket

  • X5032

  • FICOM

Overview

· A: Spindle is steady

· B: Spindle is movement

· C: Spindle is movement but travel is longer


-1


Technical Parameters
Model No. X5032A UM5032B X5032C
table size 1320×320mm 1320×320mm 1320×320mm
table travel 800(750)×300mm 800(750)×300mm 1000×300mm(manual)
number/Width/Distance of T-slot 5-14-63mm 5-14-63mm 5-14-63mm
spindle taper ISO50 ISO50 ISO50
distance from spindle nose to table surface 45-445mm 35-435mm 35-435mm
distance from spindle center to vertical guideway 320mm 360mm 360mm
spindle speed range 58-1710rpm 58-1710rpm 58-1710rpm
spindle motor power 4Kw 4Kw 4Kw
overall dimension 1770×1820×1880mm 1770×1820×1880mm 2020×1820×1880mm
G.W. 2400Kg 2400Kg 2400Kg


Standard Accessories
drill chuck drawbar work lamp milling vice
coolant system chip tray X-axis mechanical power feed Y-axis mechanical power feed
toolbox&tools operation manual quality certificate packinglist


Optional Accessories
DRO vise milling collet chuck rotary table
dividing head 58 pcs clamping kits keyless drill chuck
