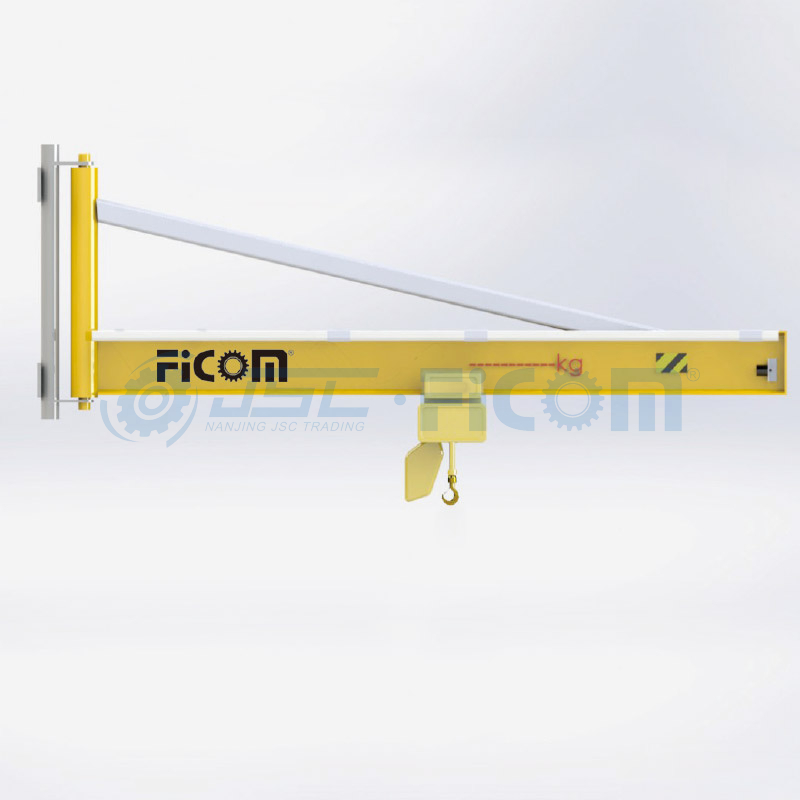

Wall Type JIB Crane Model: WJB (Capacity: up to 2 ton)

Advanced design,collection the advantages of industry’s top brands.
Safe & reliable,precise positioning,and effcient operationa.
Core components imported,frequency control sysytem as standard.
Slewing range 180°,Non-standard products can be designed.
Electrical rotation or manual rotation,trolley drived by electric or manual as optional.
High effciency and make the most use of factory space.

Quantity:
  • WJB
  • FICOM
Overview

Span: up to 6m (depend on capacity)

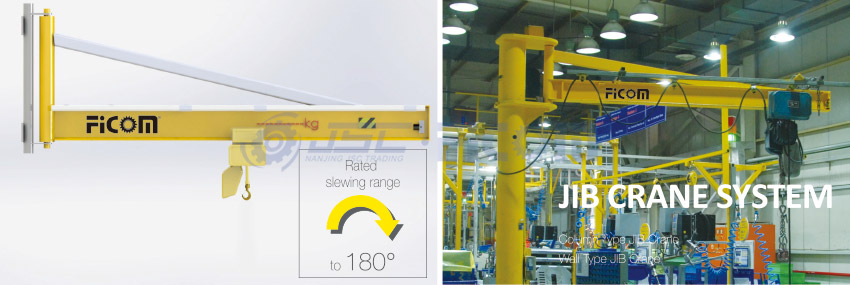

90C

JIB Crane System


JIB crane system include coloumn type JIB crane and Wall type JIB crane.

Both two types can operated by electrials or manuals.



Column jib crane is convenient material hadling solution.It can be installed and used under the overhead crane,or in an open area to cover.

Multiple stations simlutaneously;or installed in machining or assembly station to complete the stage operation with other type crane systems.


91


The Advantages of JIB Crane


Easy operation

Accurate orientation,highly-effcient operation

Top Shaft configuration precision tapered roller bearings and ball assembly,providing guarantee for smoothoperation and long service life.

Stiffeners on base plate minimize the deflection of the crane,make easier operation the precise positioning load,and Disperss ground foces point.


Easy Installation

Independent support assembly and spiral arms are installed separately

The embedded bearing assembly is significantly reduced the required installation space

Spiral arms can be installed very closed the plant celling or the below of top barrier,It maxiumum use the space and increase hoist lift.

Hoist trolley stop are bolt fixed,its position are changed according the requirments


Security

Top postioing pins prevent the support assembly accidental movement upwardly


Full load operation

We considering 25% rated load for impact load, 15% rated load are considering for the lifting mechanism during design.

Our JIB crane can full load operating.
