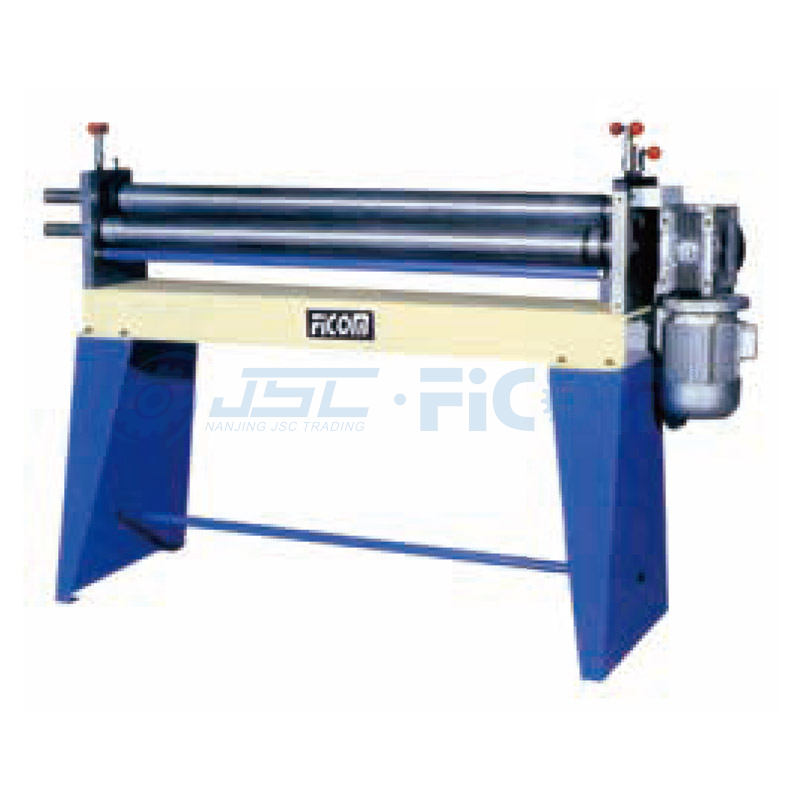

W11G Rolling Machine

Asymmetrical 3 rolling machine is especially designed for thin sheet, Have pre-bending fuction, the upper roller can be moved easily for taking out the material. Base on customer’s different request, we can especially design for customer.SO it will have more fuction in one machine.
There have two choice base on different driven.

Quantity:

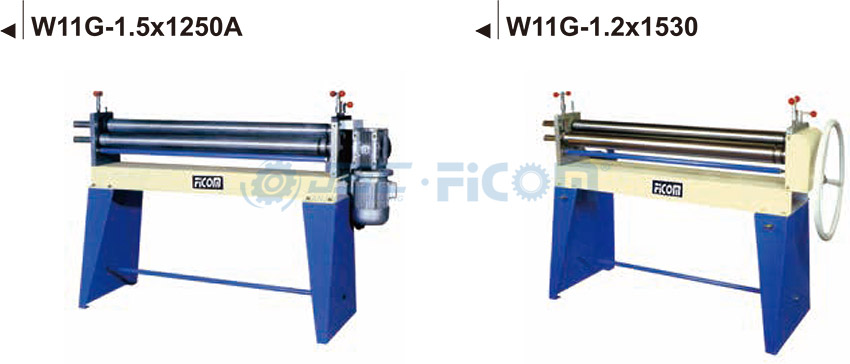

  • W11G
  • FICOM
Overview


20


Technical Parameters
Asymmetrical 3 Rolling By Manual
Model

Roller Diameter

(mm)

Max Thickness

(mm)

Max Width

(mm)

Weight

(Kg)

Dimension

(mm)

W11G-1.5×1270 62 1.5 750 225 1750×550×1120
W11G-1.2×1530 62 1.2 1000 251 2000×470×1140
W11G-2×1000 62 2 1250 198 1480×530×1170


Asymmetrical 3 Rolling By Motor Drive
Model

Roller Diameter

(mm)

Max Thickness

(mm)

Max Width

(mm)

Power

(Kw)

Weight

(Kg)

Dimension

(mm)

W11G-1.5×1270A 62 1.5 1270 0.75 248 1780×550×1120
W11G-1.2×1530A 62 1.2 1530 0.75 275 2050×550×1120
W11G-2×1000A 62 2 1000 0.75 220 1510×550×1170
W11G-3×2500A 62 3 2500 0.75 2050 4100×1100×1270
W11G-4×1300A 100 4 1300 2.2 1300 2200×900×900
W11G-4×1600A 100 4 1600 2.2 1650 2600×900×900
W11G-4×2000A 120 4 2000 3.0 2250 3250×880×1260
