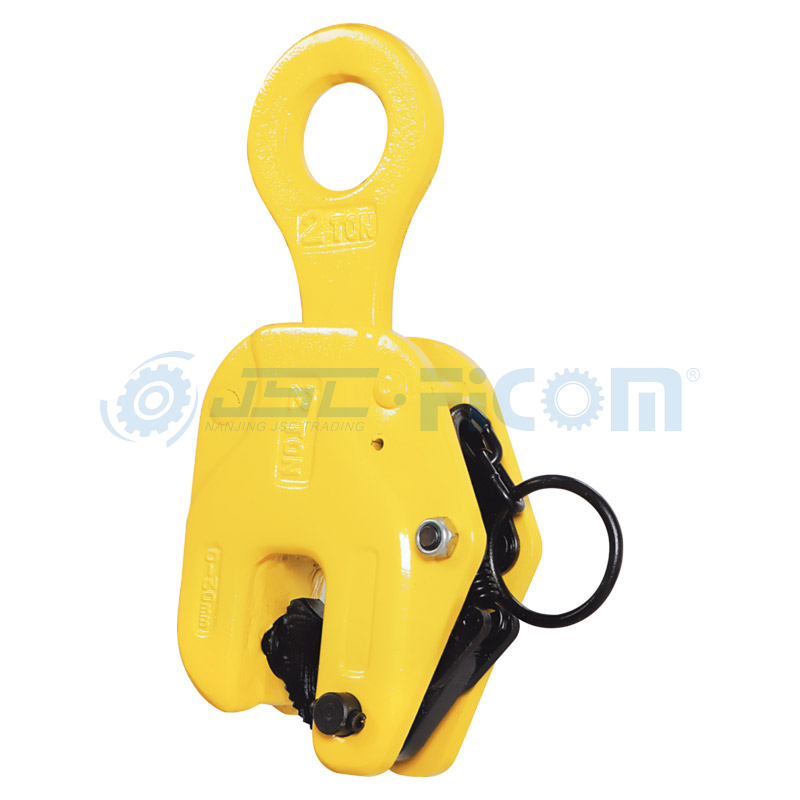

Vertical Lifting Clamp, Item Code: 122### (Capacity: 1000-5000 kg)

Standard design clamp for vertical lifting of steel plates and steel structures.The spring-loaded tightening lock mechanism assures a positive initial clamping force.
Clamps are equipped with a safety machanism,ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The clamp is locked in closed as well as in open position.
Manufactured from high quality carbon steel.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
Availability:
Quantity:
  • 122###

  • FICOM

Overview

Capacity: 1000-5000 kg

71

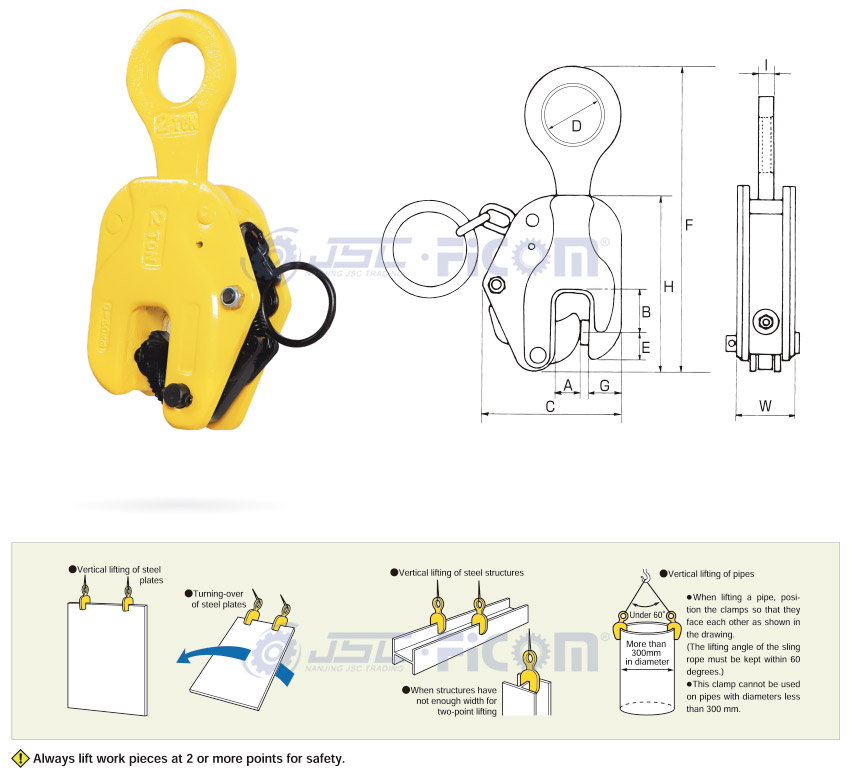

Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

Dimensions (mm)

Net

Weight

(kg)

A B C D E F G H W I
122010 1000 0-20 24 32 123 46 22 274 29 142 52 12 4.3
122020 2000 0-30 35 42 152 50 25 302 38 188 63 14 7.2
122030 3000 0-35 38 48 170 58 35 360 45 203 68 19 11
122050 5000 0-50 52 54 220 62 58 458 58 236 76 20 17.3

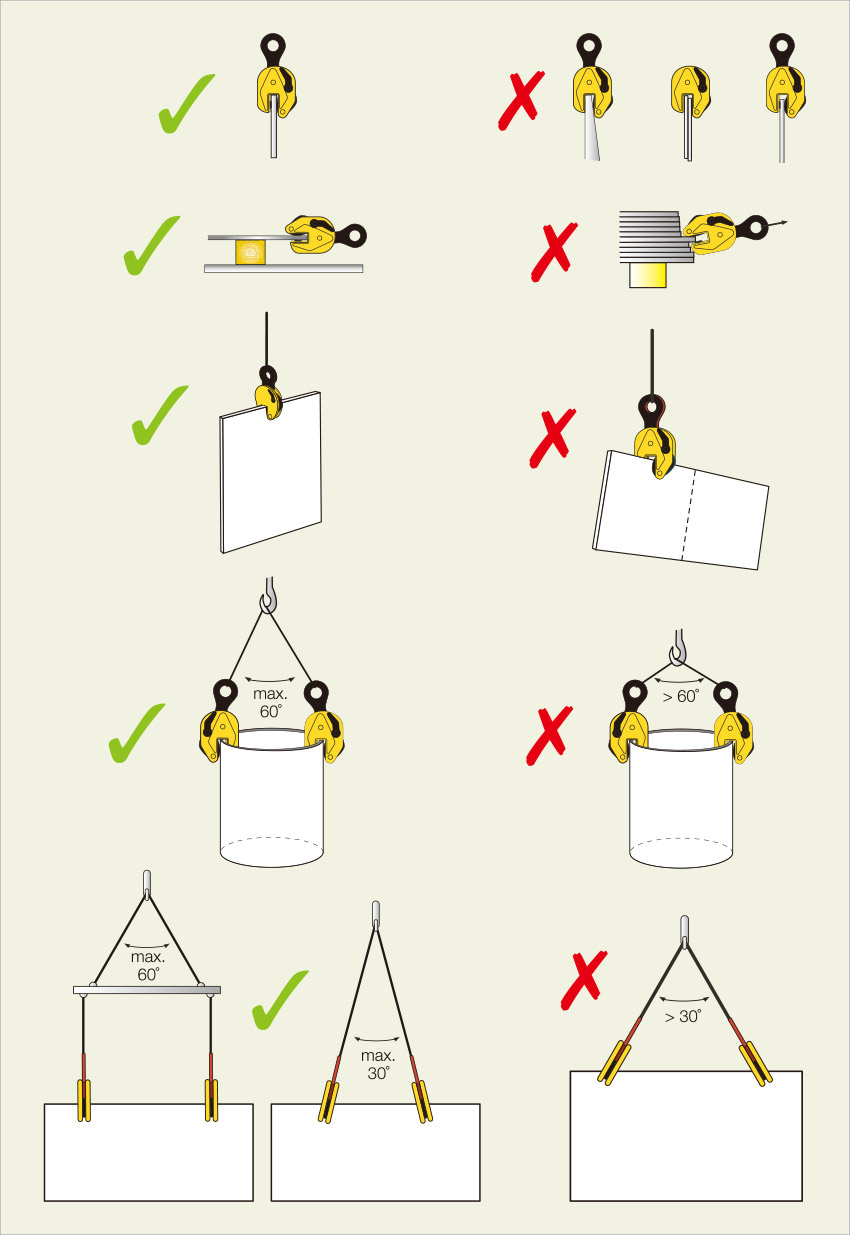

Safely Lifting

72
