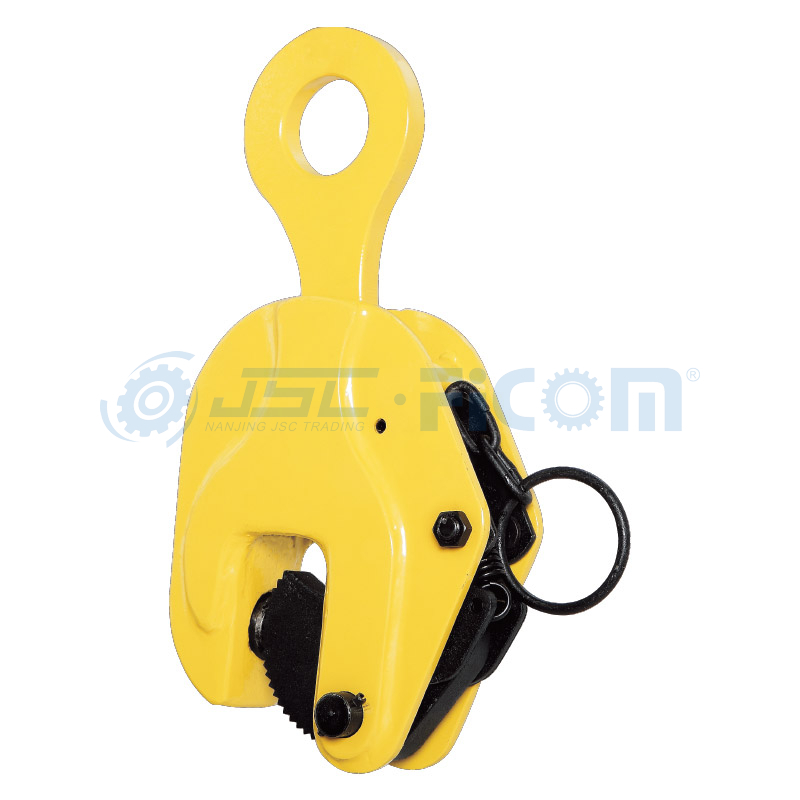

Vertical Lifting Clamp, Item Code: 121### (Capacity: 800-10000 kg)

Standard design clamp for vertical lifting of steel plates and steel structures.The spring-loaded tightening lock mechanism assures a positive initial clamping force.
Clamps are equipped with a safety machanism,ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The clamp is locked in closed as well as in open position.
Manufactured from high quality carbon steel.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
Availability:
Quantity:
  • 121###

  • FICOM

Overview

Capacity: 800-10000 kg

70


Technical Parameters

Item

Code


Capacity

(pair/kg)


Jaw

Opening

(mm)

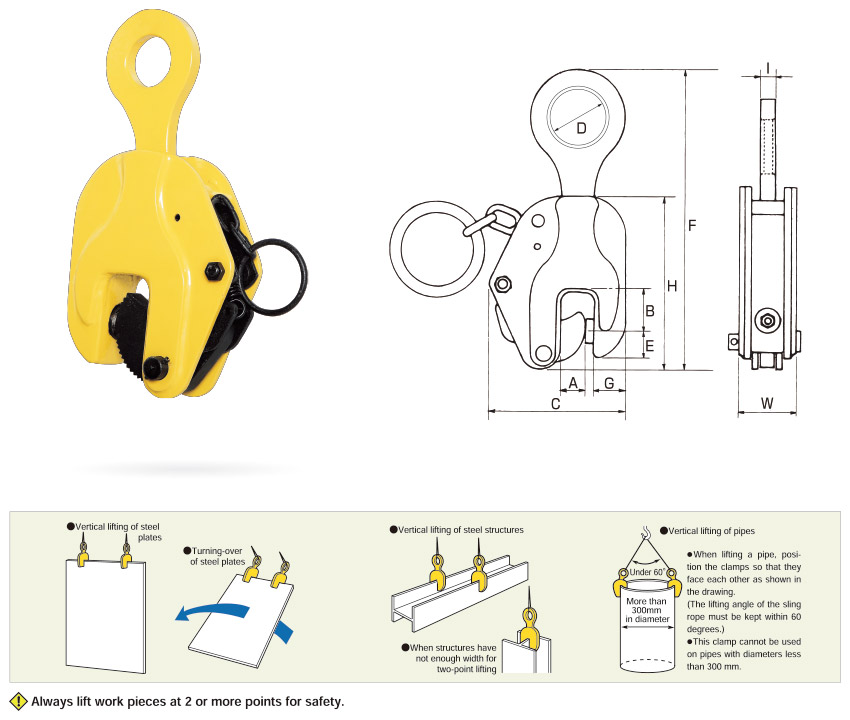

Dimensions (mm)

Net

Weight

(kg)

A B C D E F G H W I
121008 800 0-16 18 27 100 36 19 265 27 140 49 10 2.8
121010 1000 0-22 24 32 123 46 22 274 29 142 52 12 3.6
121020 2000 0-30 35 42 152 50 25 302 38 188 63 14 5.5
121030 3000 0-40 38 48 170 58 35 360 45 203 68 19 10
121050 5000 0-50 52 54 220 62 58 458 58 236 76 20 17
121080 8000 0-60 66 54 250 65 58 468 66 305 100 25 26
121100 10000 0-80 100 55 271 65 59 500 70 335 100 25 32
