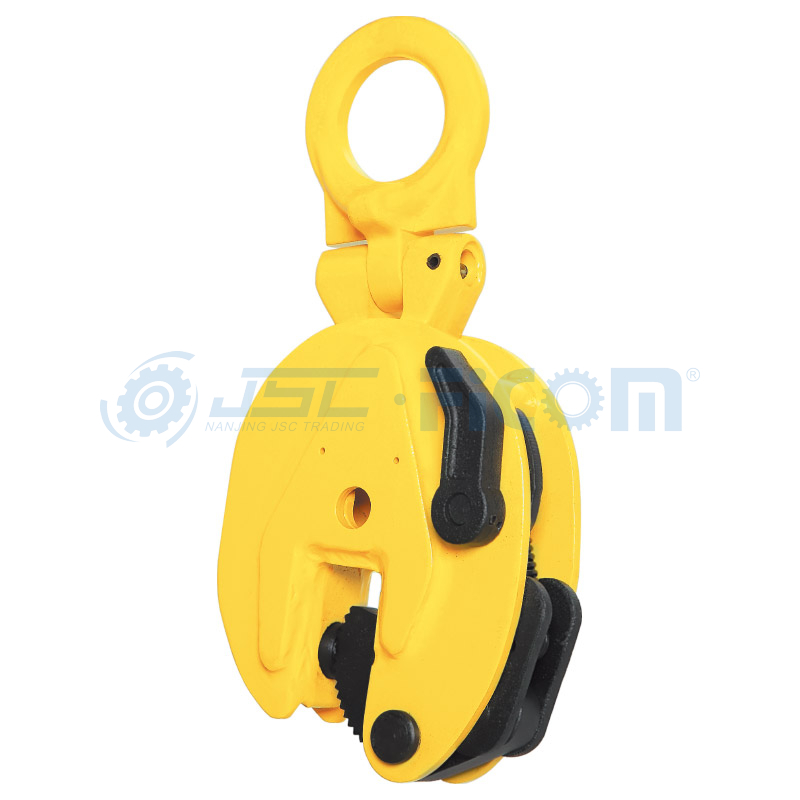

Vertical Lifting Clamp, Item Code: 120### (Capacity: 800-16000 kg)

For lifting and transporting of steel plates and structures from all positions(horizontal,vertical and sidelong).
Articulated lifting shackle.
Equipped with a safety mechanism,ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The clamp is locked in closed as well as in open position.
Lifting capacity and jaw opening are clearly engraved in the body.

Quantity:
  • 120###
  • FICOM
Overview

Capacity: 800-16000 kg

69


Technical Parameters

Item Code


Capacity

(pair/kg)

Jaw Opening

(mm)

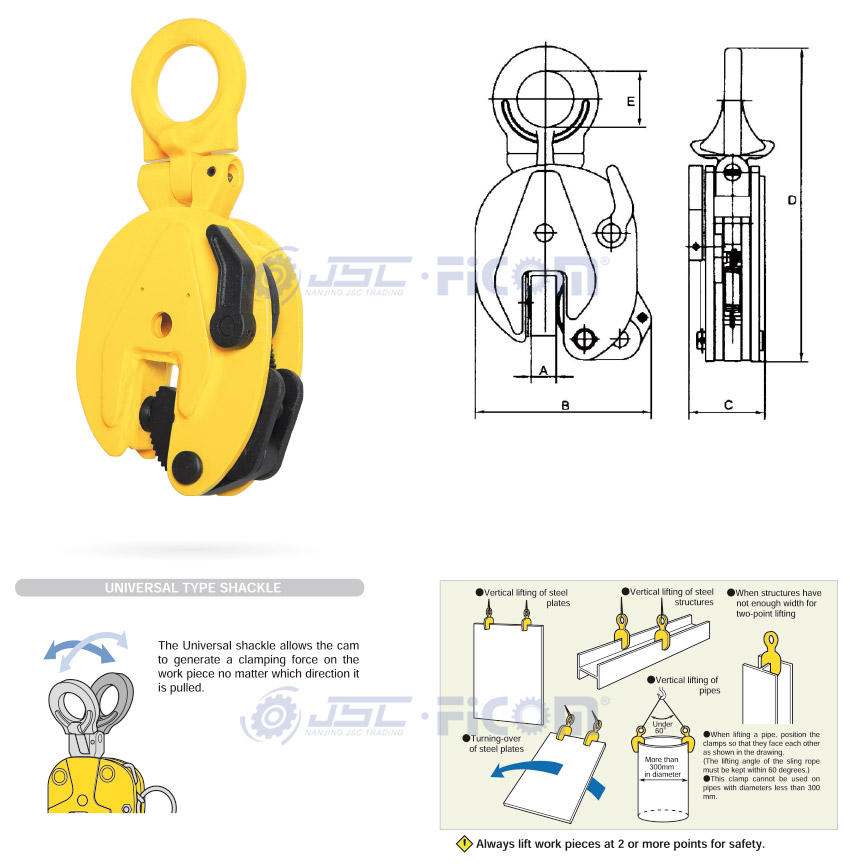

Dimensions (mm)

Net Weight

(kg)

A B C D E
120008 800 0-15 15 105 45 218 30 2
120010 1000 0-20 20 145 63 305 48 4
120016 1600 0-20 30 170 68 375 60 7
120020 2000 0-35 30 175 68 375 60 8
120021 2000 0-35 30 185 68 375 60 8
120030 3000 0-30 35 230 90 450 65 11
120050 5000 0-50 50 250 110 500 65 17.3
120080 8000 0-50 50 290 120 520 85 37
120120 12000 50-90 100 400 117 673 100 50
120160 16000 60-100 150 490 128 790 100 65
