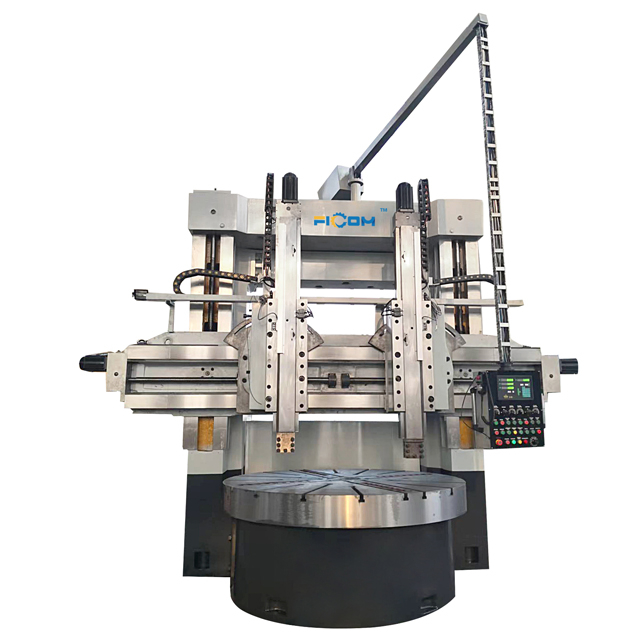

VL5225D
FICOM
· This series machine is suitable for internal and external turning, internal and external tapering, facing, slotting, thread, contour surface turning (CNC) The spindle drive adopts servo motors, through 2 steps.
· Spindle speed changing unit, to make work table realize stepless speed regulation.
· Work table spindle adopts short spindle and constant flow hydrostatic guide way, keep high centering accuracy, high rotating accuracy, big loading capacity and small deformation.
· Feed system adopts AC servo motor drive leadscrew though gear box.
· Two axis feed system all adopts leadscrew, both ends fixded and prestretching, advanced high rigidity.
· Machine adopts Push Button Station, feed system configure handheld unit, Easy to operate.
· The configuration of spindle driver and feed system can be interchangeable with general type and CNC type.
| Model No. | VL5225D | VL5240D | VL5240DH | VL5250D | VL5250DH | VL5263D | VL5263DH |
| max turning diameter | 2500mm | 4000mm | 4000mm | 5000mm | 5000mm | 6300mm | 6300mm |
| max height of work piece | 1600mm | 2000mm | 2500mm | 2500mm | 2500mm | 2500mm | 2500mm |
| max weight of work piece | 16t | 20t | 40t | 32t | 40t | 32t | 40t |
| work table diameter | 2250mm | 3600mm | 3600mm | 4500mm | 4500mm | 4500mm | 4500mm |
| work table speed | 0.63~63r/min | 0.5~50r/min | 0.4~40r/min | 0.4~40r/min | 0.4~40r/min | 0.4~40r/min | 0.4~40r/min |
| max torque of work table | 63KN.m | 63KN.m | 100KN.m | 100KN.m | 125KN.m | 100KN.m | 125KN.m |
| rapid speed of rail head | 4000mm/min | 4000mm/min | 4000mm/min | 4000mm/min | 4000mm/min | 4000mm/min | 4000mm/min |
| max cutting force of right rail head | 35KN | 35KN | 40KN | 40KN | 40KN | 40KN | 40KN |
| max cutting force of left rail head | 30KN | 30KN | 30KN | 30KN | 30KN | 30KN | 30KN |
| range of right rail head feed speed | 1~50mm/min | 1~50mm/min | 1~50mm/min | 1~50mm/min | 1~50mm/min | 1~50mm/min | 1~50mm/min |
| range of left rail head feed speed | 0.1~1000mm/min | 0.1~1000mm/min | 0.1~1000mm/min | 0.1~1000mm/min | 0.1~1000mm/min | 0.1~1000mm/min | 0.1~1000mm/min |
| travel of ram | 1000mm | 1000mm | 1250mm | 1250mm | 1250mm | 1250mm | 1250mm |
| section of ram | 220×220mm | 220×220mm | 240×240mm | 240×240mm | 240×240mm | 240×240mm | 240×240mm |
| swivel of right rail head | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° |
| section of tool | 50×40mm | 50×40mm | 50×50mm | 50×50mm | 50×50mm | 50×50mm | 50×50mm |
| main power | 55Kw | 55Kw | 55Kw | 75Kw | 75Kw | 75Kw | 75Kw |
| overall dimension | 5690×4210×5700mm | 7780×5140×5620mm | 12480×5430×7640mm | 14340×5850×7640mm | 14340×5850×7640mm | 16640×6930×7640mm | 16640×6930×7640mm |
| G.W. | 38t | 55t | 80t | 90t | 95t | 95t | 105t |
