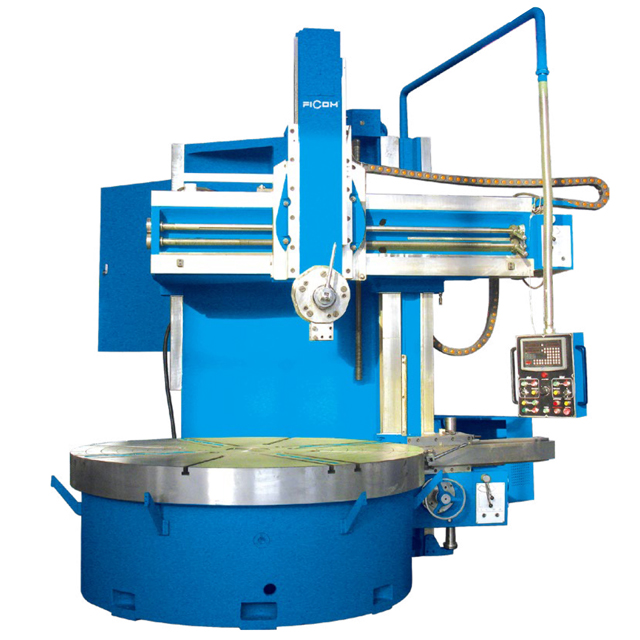

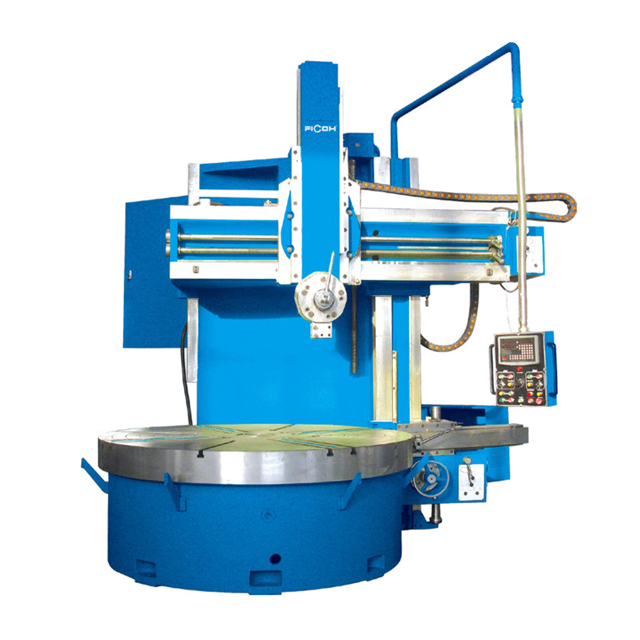

VL5126S Single Column Vertical Lathe

Availability:
Quantity:
Inquire Add to Basket

  • VL5126S

  • FICOM


Overview

· With DRO 3 AXIS as standard




-1



Technical Parameters
Model No. VL5107S VL5108S VL5110S VL5112S VL5116S VL5120S VL5123S VL5126S VL5132S
max. turning diameter of railhead 700mm 800mm 1000mm 1250mm 1600mm 2000mm 2300mm 2600mm 3200mm
max. working height 700mm 800mm 800mm 1000/1200mm 1000/1200/1400/1600/1800mm 1000/1200mm 1350/1600/1800mm 1500/1800mm 1600/1800mm
max. weight of workpiece 1.2t 1.2t 2t 4t 5t 8t 8t 10t 10/30t
table diameter 600mm 720mm 900mm 1000mm 1400mm 1800mm 2000mm 2300mm 2830mm
speed range of table 10~315r/min 10~315r/min 8~250r/min 6.3~200r/min 5~160r/min 3.5~110r/min 2.5~80r/min 1.4~45r/min 0.5-63r/min
speed-step of table 16 steps 16 steps 16 steps 16 steps 16 steps 16 steps 16 steps 16 steps Two gears stepless
travel of railhead (Horizontal) 420mm 570mm 670mm 700mm 915mm 1050mm 1150mm 1300mm 1800mm
travel of railhead (Vertical) 600mm

600(turret)

700(ram)

600(turret)

700(ram)

600(turret)

800(ram)

800(turret)

1000(ram)

800(turret)

1000(ram)

800(turret)

1000(ram)

 1000mm 1000mm
travel of sidehead ( Horizontal) 500mm 500mm 500mm 630mm 630mm 630mm 630mm 730mm
travel of sidehead (Vertical) 700mm 810mm 810mm 900mm 900mm 1150mm 1150mm 1180
travel of crossbeam 420mm 420mm 580mm 650/850mm 650/850/1050/1250/1450mm 850/1050mm 1000/1250/1450mm 1100/1400mm 1300/1500mm
moving degrees limit of railhead ±30° ±30° ±30° ±30° ±30° ±30° ±30° ±30° ±30°
feed range of railhead/sidehead 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min 0.8~86mm/min
rapid traveling speed of railhead/sidehead 1800mm/min 1800mm/min 1800mm/min 1800mm/min 1800mm/min 1800mm/min 1800mm/min 1800mm/min 1800mm/min
traveling speed of crossbeam 440mm/min 440mm/min 440mm/min 440mm/min 440mm/min 440mm/min 440mm/min 440mm/min 440mm/min
power of feeding motor 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw 1.3/1.8kw
power of main motor 15kw 15kw 15kw 22kw 22kw 30kw 30kw 37kw 55/75kw
G.W. 5t 6.5t 8t 9t 12.5t 15t 18t 22t 30t
