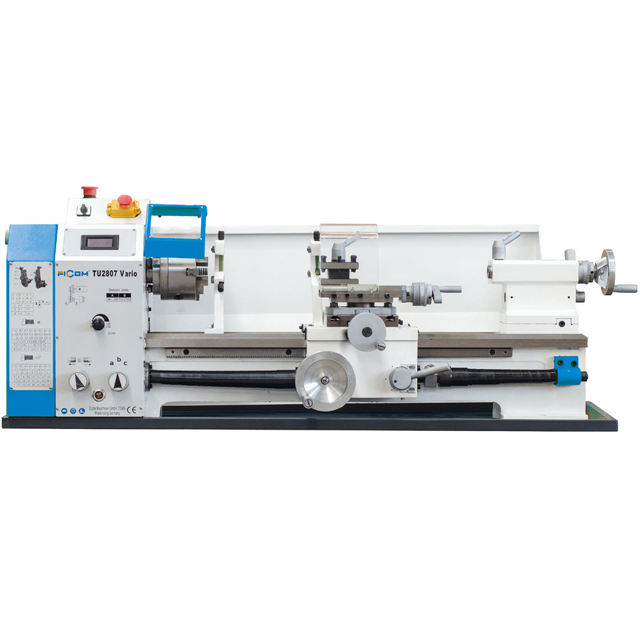

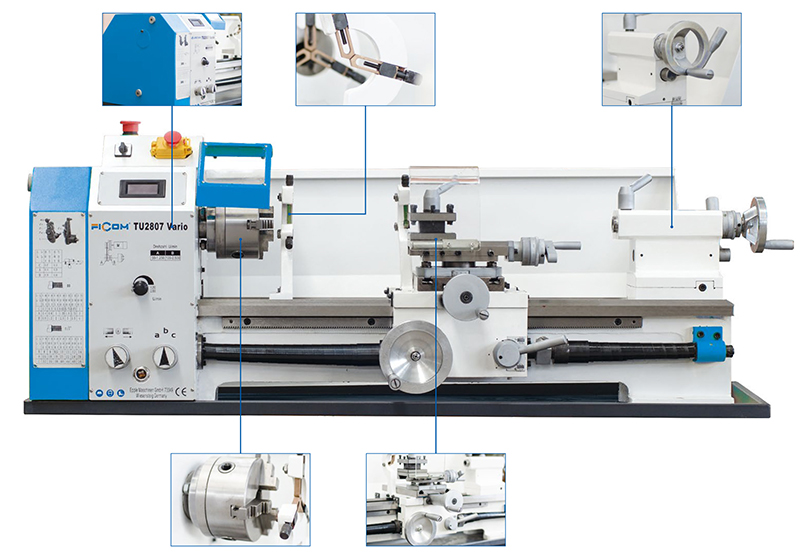

TU2807 / TU2807 Vario
FICOM
Model No. | Unit | TU2807 | TU2807 Vario |
swing over bed | mm | Ø280(11.02") | Ø290(11.41") |
swing over cross slide | mm | Ø170(6.69") | Ø175(6.89") |
admits between | mm | 700(27.56") | 700(27.56") |
center height | mm | 140(5.51") | 145(5.71) |
width of bed | mm | 180(7.09") | 180(7.09") |
spindle bore | mm | Ø26(1.02") | Ø26(1.02") |
spindle taper | MT4 | MT4 | |
3-jaw chuck | mm | Ø125(4.92") | Ø125(4.92") |
range of spindle speed | rpm | 150-2000 | 150-2000 |
compound rest travel | mm | 60(2.36") | 60(2.36") |
cross slide travel | mm | 140(5.51") | 145(5.71) |
max. section of tool | mm | 18×18(0.71"×0.71") | 18×18(0.71"×0.71") |
threads metric pitches | mm | 0.2-3.5(0.01"-0.14") | 0.2-3.5(0.01"-0.14") |
threads imperial pitches | 8-56TPI | 8-56TPI | |
quill diameter | mm | Ø30(1.18") | Ø30(1.18") |
quill travel | mm | 105(4.13") | 105(4.13") |
quill taper | MT2 | MT2 | |
main motor power | W | 850W | 1100W |
overall dimension(L×W×H) | mm | 1220×660×560 | 1220×660×560 |
packing size(L×W×H) | mm | 1316×556×630 | 1316×556×630 |
N.W./G.W. | kg | 202/230 | 210/242 |
3-jaw chuck | Dead center MT1 | Change gears kit | Hexagon wrench |
Spanner | Splash guard | Chip tray |
Steady rest | Follow rest | Turning tools 8×8mm | Live center mt1 |
er16 collet | er16 collet chuck | Face plate 100mm | 4-jaw chuck |
Back plate | Oil gun |
