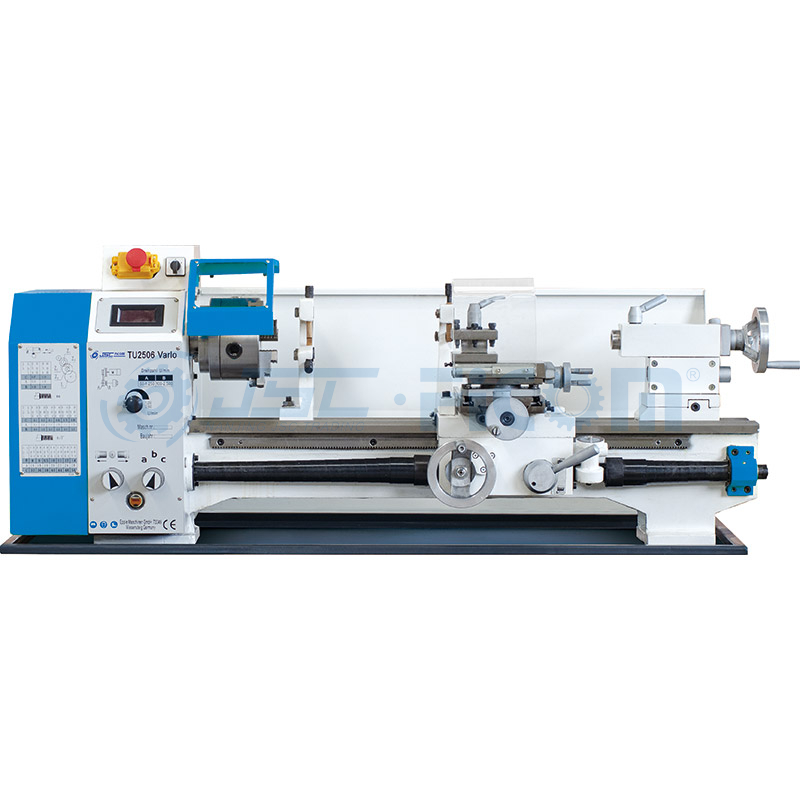

TU2506 / TU2506 Vario Mini-lathe

Quantity:
  • TU2506 / TU2506 Vario
  • FICOM
Overview


TU2506-7


Technical Parameters
Model No.

Unit

TU2506

TU2506 Vario

swing over bed

mm

Ø250(9.84")

Ø250(9.84")

swing over cross slide

mm

Ø150(5.91")

Ø150(5.91")

admits between

mm

550(21.65")

550(21.65")

center height

mm

125(4.92")

125(4.92")

width of bed

mm

134(5.28")

134(5.28")

spindle bore

mm

Ø26(1.02")

Ø26(1.02")

spindle taper


MT4

MT4

3-jaw chuck

mm

Ø125(4.92")

Ø125(4.92")

range of spindle speed

rpm

125-2000

30-4000

compound rest travel

mm

75(2.95")

75(2.95")

cross slide travel

mm

85(3.35")

85(3.35")

max. section of tool

mm

14×14(0.55"×0.55")

14×14(0.55"×0.55")

threads metric pitches

mm

0.2-3.5(0.01"-0.14")

0.2-3.5(0.01"-0.14")

threads imperial pitches


8-56TPI

8-56TPI

quill diameter

mm

Ø30(1.18")

Ø30(1.18")

quill travel

mm

70(2.76")

70(2.76")

quill taper


MT2

MT2

main motor power

W

550

850

overall dimension(L×W×H)

mm

1110×500×500

1110×500×500

packing size(L×W×H)

mm

1200×560×570

1200×560×570

N.W./G.W.

kg

140/159

140/159

Standard Accessories

3-jaw chuck

Dead center MT1

Change gears kit

Hexagon wrench

Spanner

Splash guard

Chip tray


Optional Accessories

Steady rest

Follow rest

Turning tools 8×8mm

Live center mt1

er16 collet

er16 collet chuck

Face plate 100mm

4-jaw chuck

Back plate

Oil gun
