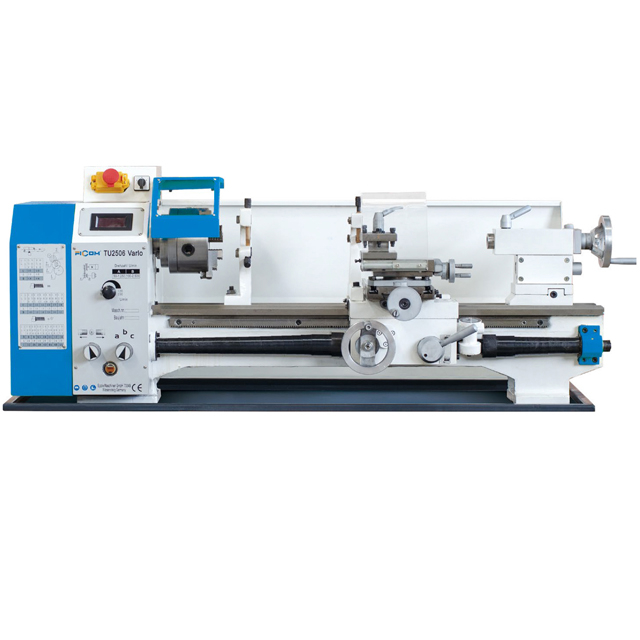

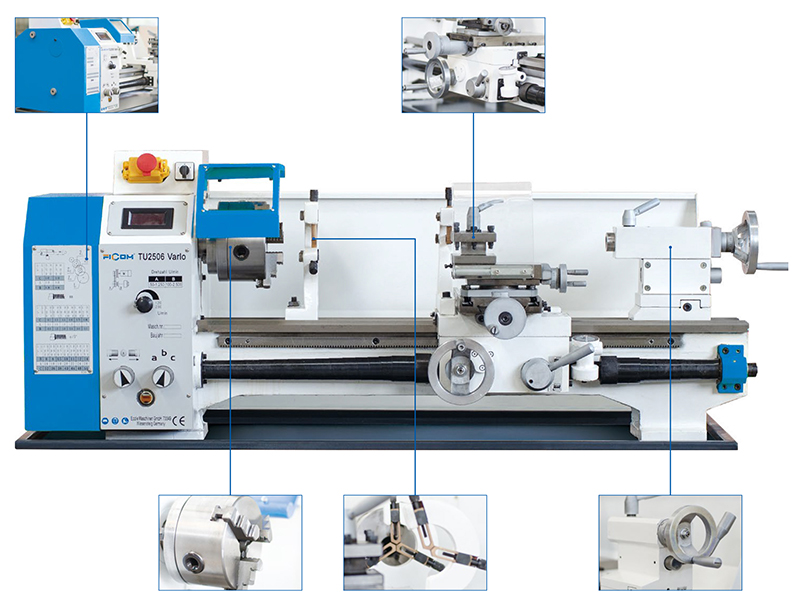

TU2506 / TU2506 Vario
FICOM
| Model No. | Unit | TU2506 | TU2506 Vario |
swing over bed | mm | Ø250(9.84") | Ø250(9.84") |
swing over cross slide | mm | Ø150(5.91") | Ø150(5.91") |
admits between | mm | 550(21.65") | 550(21.65") |
center height | mm | 125(4.92") | 125(4.92") |
width of bed | mm | 134(5.28") | 134(5.28") |
spindle bore | mm | Ø26(1.02") | Ø26(1.02") |
spindle taper | MT4 | MT4 | |
3-jaw chuck | mm | Ø125(4.92") | Ø125(4.92") |
range of spindle speed | rpm | 125-2000 | 30-4000 |
compound rest travel | mm | 75(2.95") | 75(2.95") |
cross slide travel | mm | 85(3.35") | 85(3.35") |
max. section of tool | mm | 14×14(0.55"×0.55") | 14×14(0.55"×0.55") |
threads metric pitches | mm | 0.2-3.5(0.01"-0.14") | 0.2-3.5(0.01"-0.14") |
threads imperial pitches | 8-56TPI | 8-56TPI | |
quill diameter | mm | Ø30(1.18") | Ø30(1.18") |
quill travel | mm | 70(2.76") | 70(2.76") |
quill taper | MT2 | MT2 | |
main motor power | W | 550 | 850 |
overall dimension(L×W×H) | mm | 1110×500×500 | 1110×500×500 |
packing size(L×W×H) | mm | 1200×560×570 | 1200×560×570 |
N.W./G.W. | kg | 140/159 | 140/159 |
3-jaw chuck | Dead center MT1 | Change gears kit | Hexagon wrench |
Spanner | Splash guard | Chip tray |
Steady rest | Follow rest | Turning tools 8×8mm | Live center mt1 |
er16 collet | er16 collet chuck | Face plate 100mm | 4-jaw chuck |
| Back plate | Oil gun |
