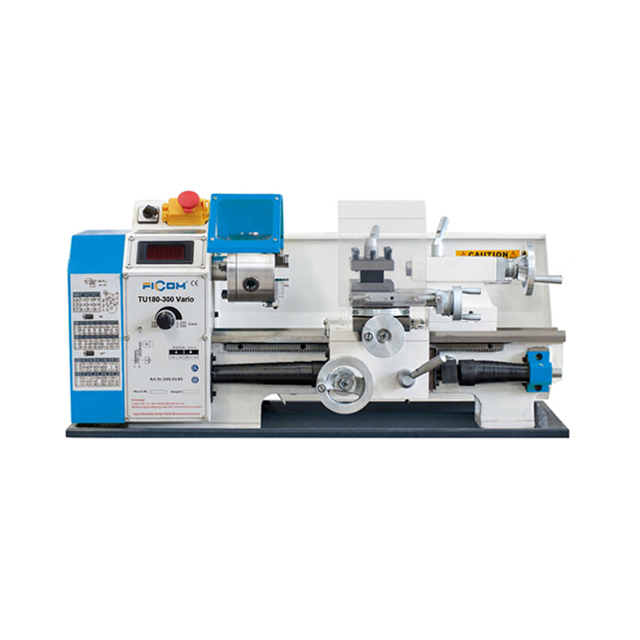

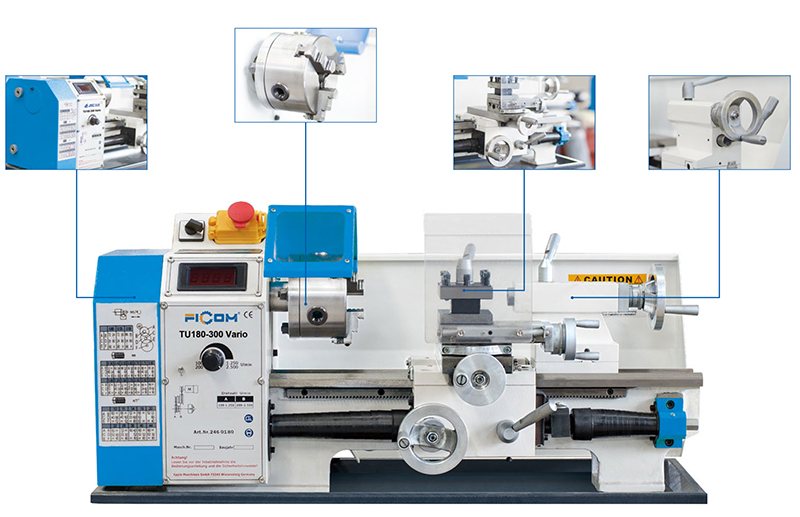

TU1803 Vario/TU2104 Vario
FICOM
| Model No. | Unit | TU1803 Vario | TU2104 Vario |
| swing over bed | mm | Ø180(7.09") | Ø210(8.27") |
swing over cross slide | mm | Ø120(4.72") | Ø210(8.27") |
admits betwee | mm | 300(11.81") | 400(15.75") |
center height | mm | 90(3.54") | 105(4.13") |
width of bed | mm | 100(3.94") | 100(3.94") |
spindle bore | mm | Ø21(0.83") | Ø21(0.83") |
spindle taper | MT3 | MT3 | |
3-jaw chuck | mm | Ø100(3.94") | Ø100(3.94") |
range of spindle speed | rpm | 150-2500 | 150-2500 |
compound rest travel | mm | 75(2.95") | 75(2.95") |
cross slide travel | mm | 85(3.35") | 85(3.35") |
max. section of tool | mm | 12×12(0.47"×0.47") | 12×12(0.47"×0.47") |
threads metric pitches | mm | 0.5-3(0.02"×0.12") | 0.5-3(0.02"×0.12") |
threads imperial pitches | 10-44TPI | 10-44TPI | |
quill diameter | mm | Ø25(0.98") | Ø25(0.98") |
quill travel | mm | 60(2.36") | 60(2.36") |
quill taper | MT2 | MT2 | |
main motor power | W | 600 | 600 |
overall dimension(L×W×H) | mm | 740×390×310 | 840×390×370 |
packing size(L×W×H) | mm | 760×500×480 | 900×480×450 |
N.W./G.W. | kg | 44/66 | 48/70 |
3-jaw chuck | Dead center MT1 | Change gears kit | Hexagon wrench |
Spanner | Splash guard | Chip tray |
Steady rest | Follow rest | Turning tools 8×8mm | Live center mt1 |
er16 collet | er16 collet chuck | Face plate 100mm | 4-jaw chuck |
| Back plate | Oil gun |
