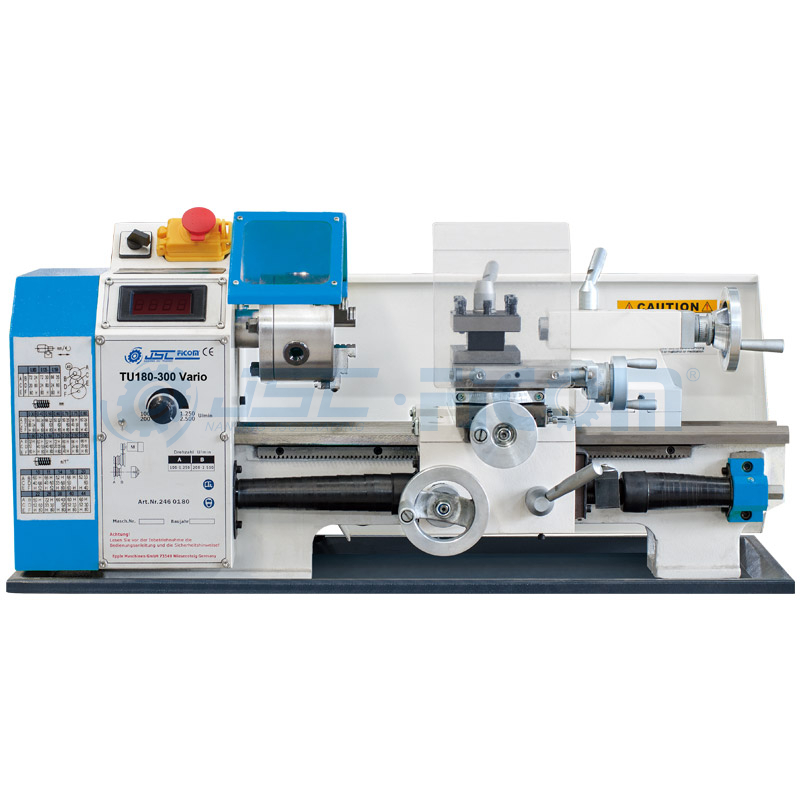

TU1803 Vario/TU2104 Vario Mini-lathe

Quantity:
  • TU1803 Vario/TU2104 Vario
  • FICOM
Overview


TU1803-6


Technical Parameters
Model No.

Unit

TU1803 Vario

TU2104 Vario

swing over bed

mm

Ø180(7.09")

Ø210(8.27")

swing over cross slide

mm

Ø120(4.72")

Ø210(8.27")

admits betwee

mm

300(11.81")

400(15.75")

center height

mm

90(3.54")

105(4.13")

width of bed

mm

100(3.94")

100(3.94")

spindle bore

mm

Ø21(0.83")

Ø21(0.83")

spindle taper


MT3

MT3

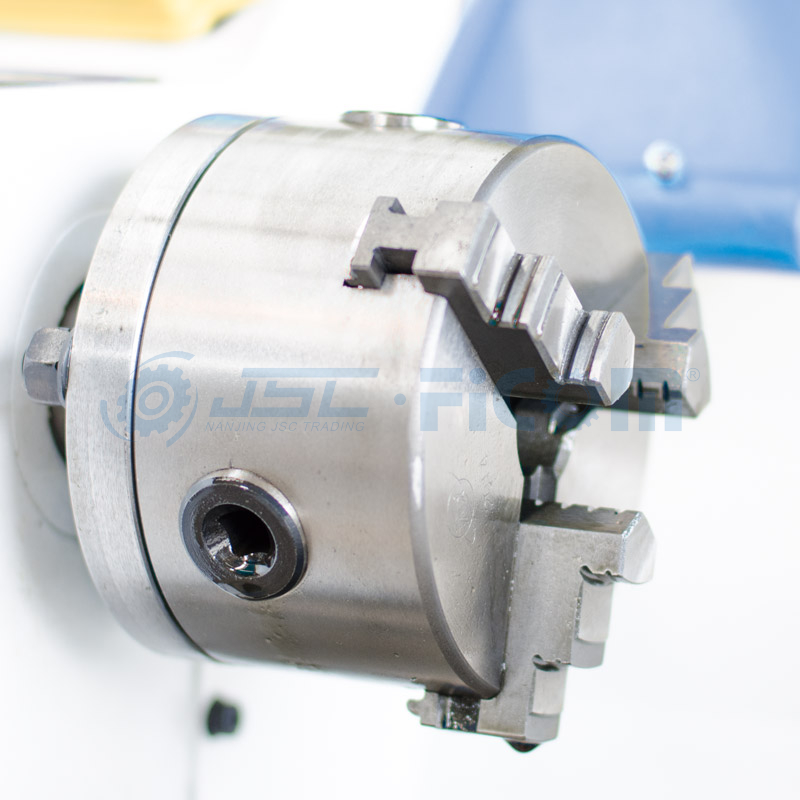

3-jaw chuck

mm

Ø100(3.94")

Ø100(3.94")

range of spindle speed

rpm

150-2500

150-2500

compound rest travel

mm

75(2.95")

75(2.95")

cross slide travel

mm

85(3.35")

85(3.35")

max. section of tool

mm

12×12(0.47"×0.47")

12×12(0.47"×0.47")

threads metric pitches

mm

0.5-3(0.02"×0.12")

0.5-3(0.02"×0.12")

threads imperial pitches


10-44TPI

10-44TPI

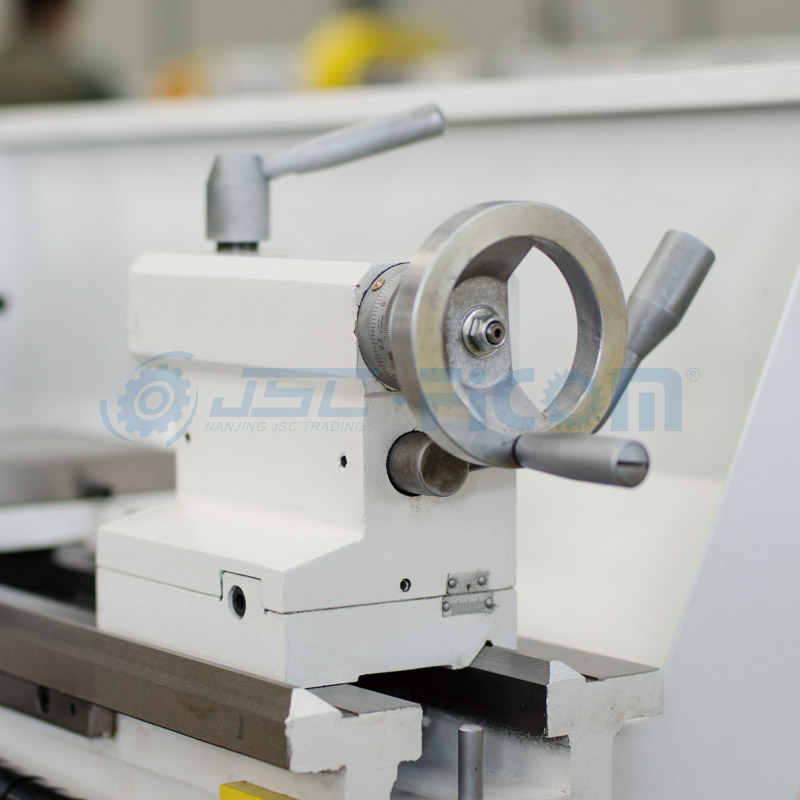

quill diameter

mm

Ø25(0.98")

Ø25(0.98")

quill travel

mm

60(2.36")

60(2.36")

quill taper


MT2

MT2

main motor power

W

600

600

overall dimension(L×W×H)

mm

740×390×310

840×390×370

packing size(L×W×H)

mm

760×500×480

900×480×450

N.W./G.W.

kg

44/66

48/70

Standard Accessories

3-jaw chuck

Dead center MT1

Change gears kit

Hexagon wrench

Spanner

Splash guard

Chip tray


Optional Accessories

Steady rest

Follow rest

Turning tools 8×8mm

Live center mt1

er16 collet

er16 collet chuck

Face plate 100mm

4-jaw chuck

Back plate

Oil gun
