TU0618 Variable Speed Mini-lathe/TU0618A Variable Speed Readout Mini-lathe
FICOM

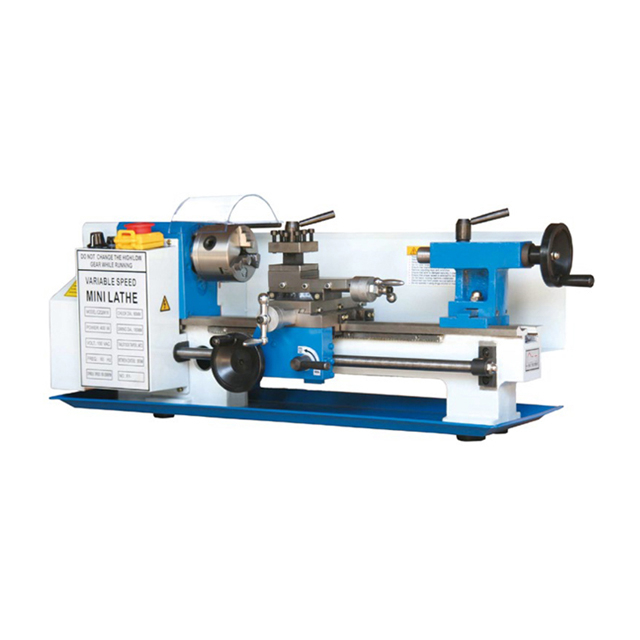

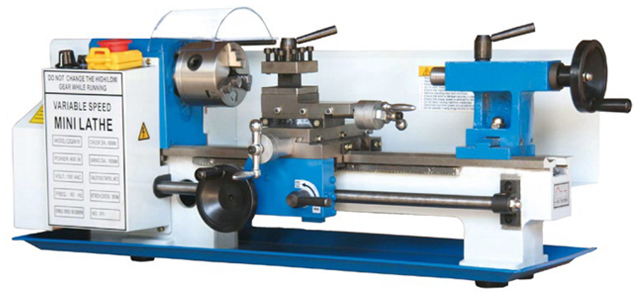

TU0618 Variable Speed Mini-lathe
• Induction harden bedway
• Variable speed
• DC motor

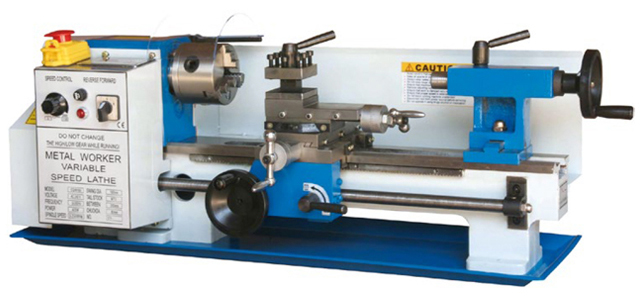

TU0618A Variable Speed Readout Mini-lathe
• Induction harden bedway
• Spindle Speed Readout
• Variable speed
• DC motor
| Model No. | Unit | TU0618 | TU0618A |
distance between centers | mm | 200/300/350(7.87"/11.81"/13.78") | 200/300/350(7.87"/11.81"/13.78") |
swing over bed | mm | 180(7.09") | 180(7.09") |
spindle taper | MT3 | MT3 | |
chuck diameter | mm | 80(3.15") | 80(3.15") |
spindle bore | mm | 20(0.79") | 20(0.79") |
tool slide travel | mm | 35(1.38") | 35(1.38") |
taper of tallstock quill | MT2 | MT2 | |
range of metric threads | mm | 0.5~2.5(0.02"~0.10") | 0.5~2.5(0.02"~0.10") |
range of inch threads | TPL | 12~52 | 12~52 |
cross slide travel | mm | 65(2.56") | 65(2.56") |
spindle accuracy | mm | 0.01 | 0.01 |
spindle speed | rpm | 50~2500 | 100~250 |
vol./freq | 230V/50Hz or 120V/60Hz | 230V/50Hz or 120V/60Hz | |
motor | W | 400 | 550 |
N.W. | kg | 35/38/40 | 35/38/40 |
G.W. | kg | 38/42/45 | 38/42/45 |
packing size | mm | 660/760/810×305×370 | 660/760/810×305×370 |
3-jaw chuck Ø80/Chang gears | Centers MT2 | Oil gun/Set of wrench | |
4-jaw chuck/Follow rest | Steady rest | Face plate 125mm/Stand | |
