plasma
FICOM

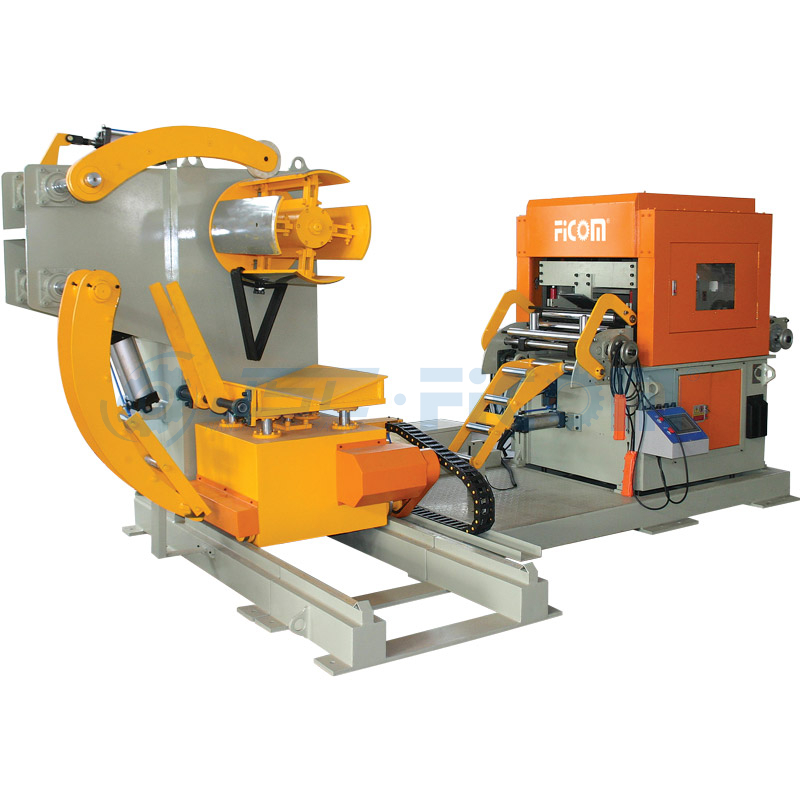

Standard Accessory
1. Upper roller adjustment by digital display.
2. Coil width adjusted by double handle wheel with precise scre word.
3. Pass line can be adjusted by the lifter driven by motor.

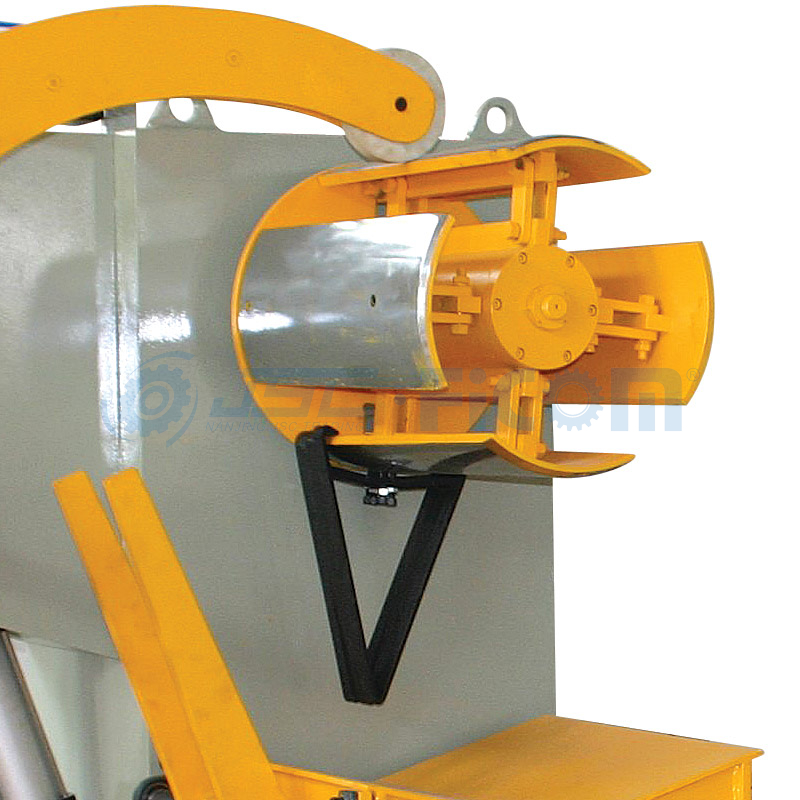

4. Uncoiler with four “A” steel backauges.
5. Pinch roll and straightener roll material: highstrength alloy bearing steel with hard chrome plating.
6. Pneumatic coil arm device.
7. Pneumatic peeler table.
8. Mitsubishi PLC control feeding program from Japan.
9. Feed accuracy controlled by Japan YaSKAWA servo moto with precise planetary reducer.
| Model No. | Unit | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| width of material | mm | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| thickness of material | mm | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| max. coil weithg | T | 2T | 2T | 3T | 3T | 5T | 5T | 5T | 8T |
| coil I.D. | mm | 508 | 508 | 508 | 508 | 508 | 508 | 508 | 508 |
| max. coil O.D. | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| max. speed | m/min | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| feed pitch accuracy | mm | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±0.15 |
| feed roll | upper1/lower1 | ||||||||
| work roll | upper4/lower3 | ||||||||
| voltage | 380V AC/60Hz | ||||||||
| air power supply | 5Kg/cm2 | ||||||||
| uncoller expansion | oil pressure | ||||||||
| sewo motor | Kw | AC2.9Kw | AC2.9Kw | AC2.9Kw | AC4.4Kw | AC4.4Kw | AC4.4Kw | AC5.5Kw | AC5.5Kw |
| uncoiler motor | Kw | 1.5Kw | 1.5Kw | 1.5Kw | 1.5Kw | 2.2Kw | 2.2Kw | 2.2Kw | 3Kw |
| coil car | optional | optional | optional | optional | optional | optional | optional | optional | |
| uncoil height | mm | ±100 | ±100 | ±100 | ±100 | ±100 | ±100 | ±100 | ±100 |
| Model No. | thickness | 0.5 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 |
| width | |||||||||
| TNCF4-300 | 300 | 260 | 200 | ||||||
| TNCF4-400 | 400 | 300 | 260 | ||||||
| TNCF4-500 | 500 | 400 | 300 | 260 | 200 | ||||
| TNCF4-600 | 600 | 500 | 450 | 350 | 260 | 200 | |||
| TNCF4-700 | 700 | 550 | 450 | 350 | 260 | 200 | |||
| TNCF4-800 | 800 | 600 | 450 | 350 | 260 | 200 | |||
| TNCF4-1000 | 1000 | 800 | 600 | 450 | 350 | 260 | 200 | ||
| TNCF4-1300 | 1300 | 900 | 600 | 450 | 350 | 260 | 200 | ||
