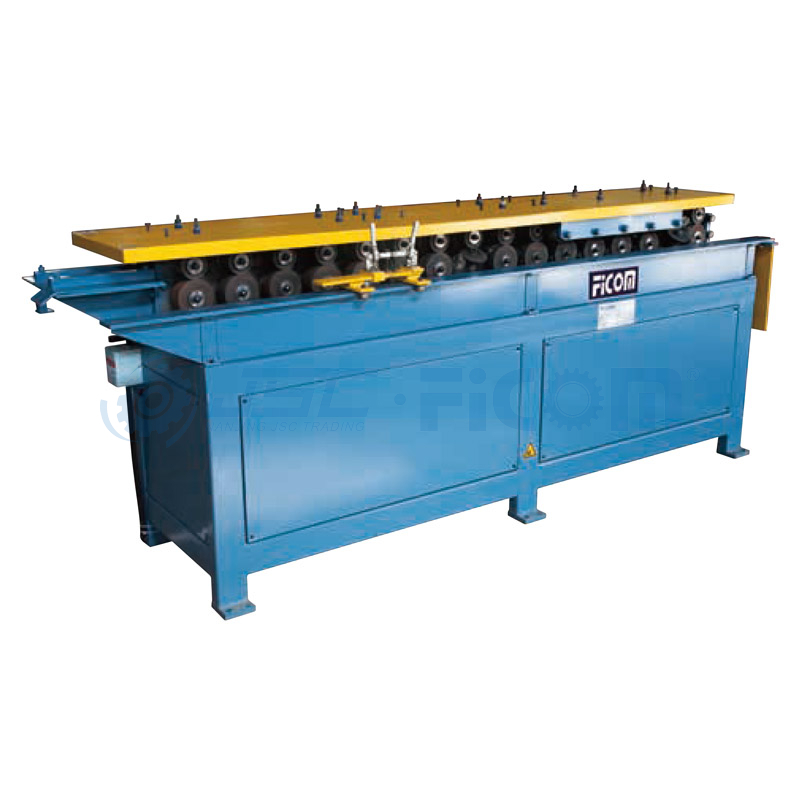

TF-12C / TF-12U / TF-15U / TF-16U TDF/TDC Flange Machine

TDF/TDC Flange rollforming is the main duct flange manufacture way in mostly country of the world. It can help you save cost and make your job very well.
JSC can supply the very nice TDF/TDC machine. Our product use good material and nice manufacture rolls, high precision bearing, hardened and ground roll shafts etc.

Quantity:
  • TF-12C / TF-12U / TF-15U / TF-16U
  • FICOM
Overview

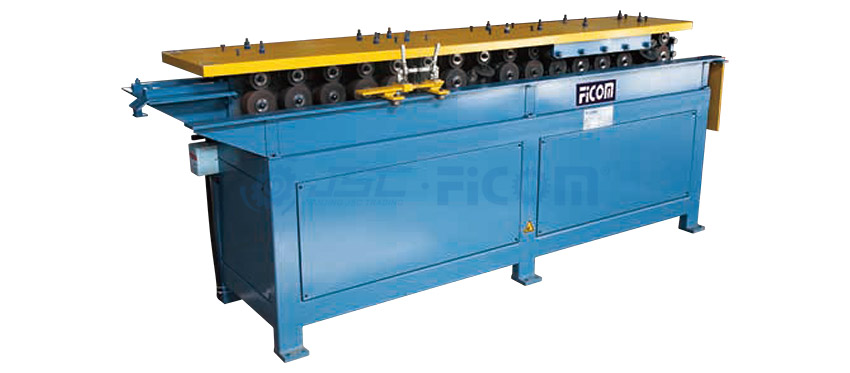

TF-12U1

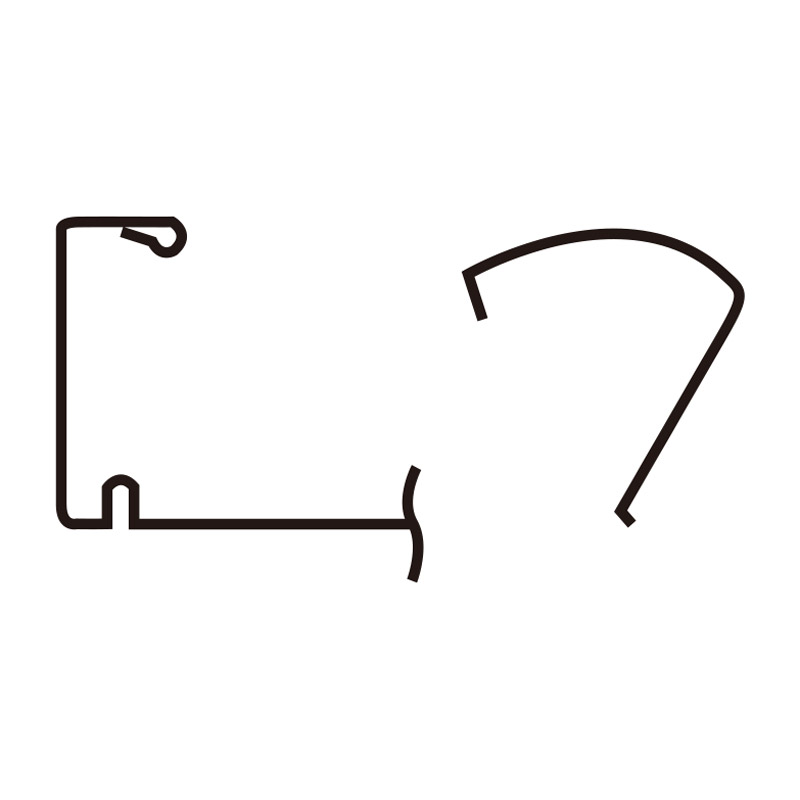

TDF/TDC Profile

TF-12U2

Technical Parameters
Model

Thickness

(mm)

Rolls

Units

Max speed

(m/min)

Power

(Kw)

Weight

(Kg)

Dimension

(mm)

TF-12C 0.4-1.2 14 8 2.2 1500 2500×700×1150
TF-12U 0.4-1.2 16 14 2.2 1800 2800×700×1150
TF-15U 0.7-1.5 20 14 2.2 2000 3600×700×1150
TF-16U 0.5-1.2(stainless) 20 14 2.2 2000 3600×700×1150
