TDF/TDC Flance Duct Automatic Line 6(B)

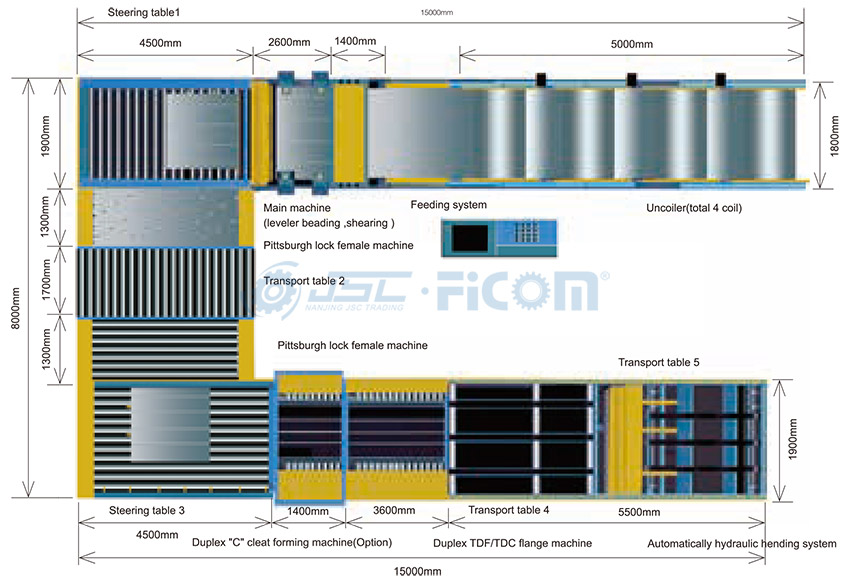

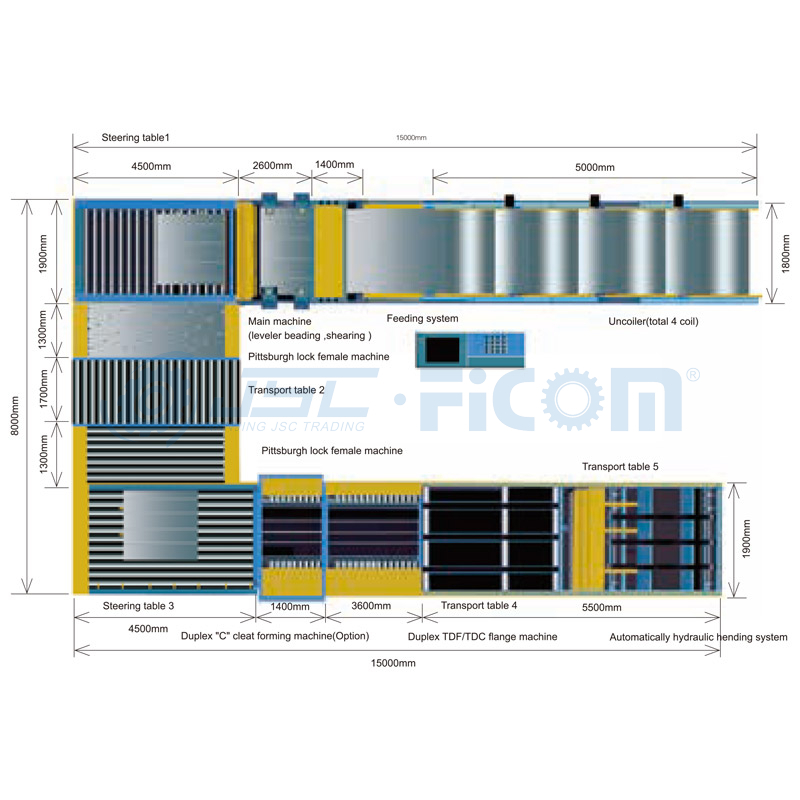

Struture and layout of the entire pipeline reasonable. was “ z ” or ” U ”-type distribution.
Modular design can be different functions need to choose a flexible combination of modules.
Can automatically implement the following functions: sheet Cut-length, 4 pcs duct manufacture, "L", "U" "口"Duct.
Autmaucally finish GDF flange and Pittsburgh-lock male&female.
Automatically feed material&finish beading.
Coil Straight, automatically notching.

Quantity:
  • DAL-6(B)
  • FICOM
Overview

Compared Automatic TDF duct flange 6 lines(A type), Automatic TDF duct flange 6 line(B type) is only implement the Pittsburghlock in a different way, A Type is get the pittsburghlock male by bending and get the pittsburghlock female by rollforming, but the B Type get the Pittsburghlock Male&Female both by Rollforming, so the B Type Line will need more transport table than A Type, The customer can choose base on their require.


Specifications:

  • Coil Thickness: 0.4-1.2mm

  • Part Width: 150-1300mm. 1500mm

  • Part Length Tolerance: ±0.5mm

  • Diagonal Tolerance:  ±0.8mm

  • Processing Speed: Up to 18M/min

  • Driven: Hydrulic drive

  • Power: 36KW

  • Beading Section: Satandard

  • Notching and hole Punching: FICom

  • Suitable for TDF/TDC, TDC2, Snop lock and Pittsburgh lock

  • CNC Controls: Japan Mistsbishi


04B

Technical Parameters
Model

Thickness

(mm)

Tolerance

(mm)

Max Speed

(m/min)

Coll Width

(mm)

DAL-6(1300B) 0.4-1.2 ±0.5 18 1300
DAL-6(1500B) 0.4-1.2 ±0.5 18 1500
