TDF/TDC Flance Duct Automatic Line 6(A)

TDF/TDC Flange Duct Automatic Line 6(A) represent the ultimate duct manufacturing. It is modular design for different flexible workstations. It produces duct from coil stock to ready-to-assemble are “ l ”. ” U ”, ” 口 ” section with formed connections. including Slip &Drive, Snap lick and Pittsburgh lick, beaded and TDF(TDC). It is automatical very well. It can help you save labor, cost and materia with high produce rate. It is the best choice for the big duct workshop.

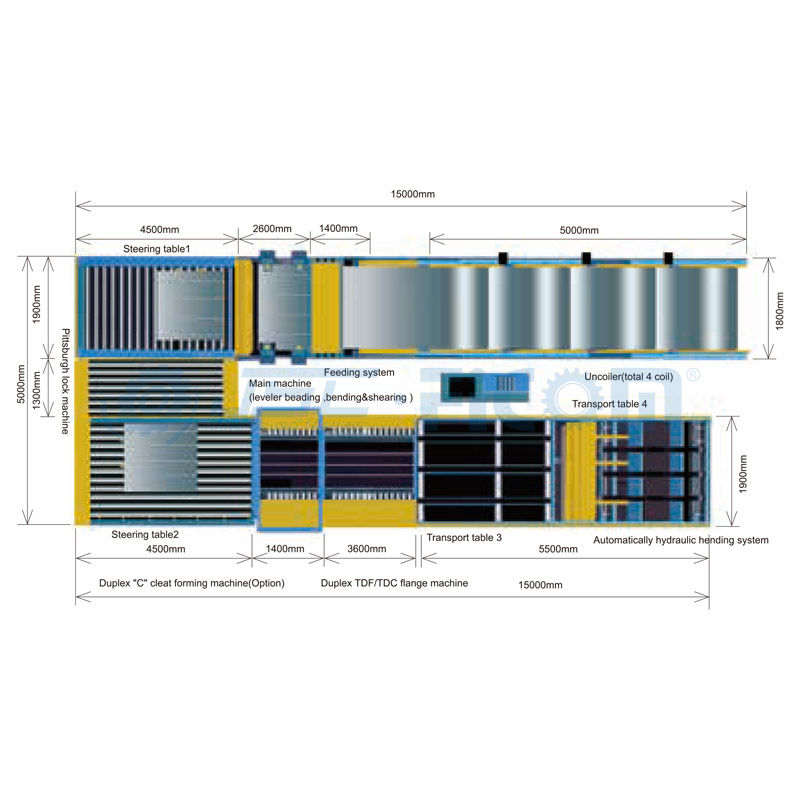

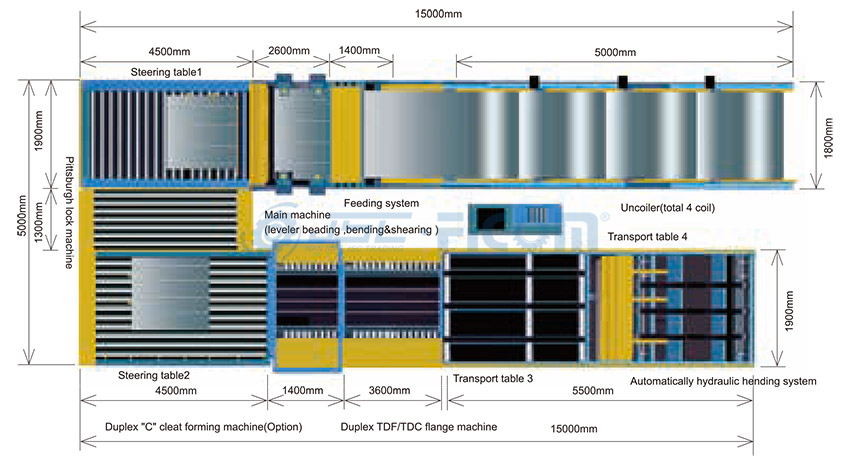

Its consists of uncoiler, Leveler with beading function, Encoder, Hydraulic notching system(4 tool speaial desigh ofr duct),Duplex slip & drive machine, Hydraulic bending and shearing system, Indutry CNC control system and our special duct manufacture software.
More options are sheet feed system, slip & drive, snap lock, and more uncoler.

Quantity:
  • DAL-6(A)
  • FICOM
Overview


04A

Technical Parameters
Model

Thickness

(mm)

Tolerance

(mm)

Max Speed

(m/min)

Coll Width

(mm)

DAL-6(1300) 0.4-1.2 ±0.5 18 1300
DAL-6(1500) 0.4-1.2 ±0.5 18 1500
