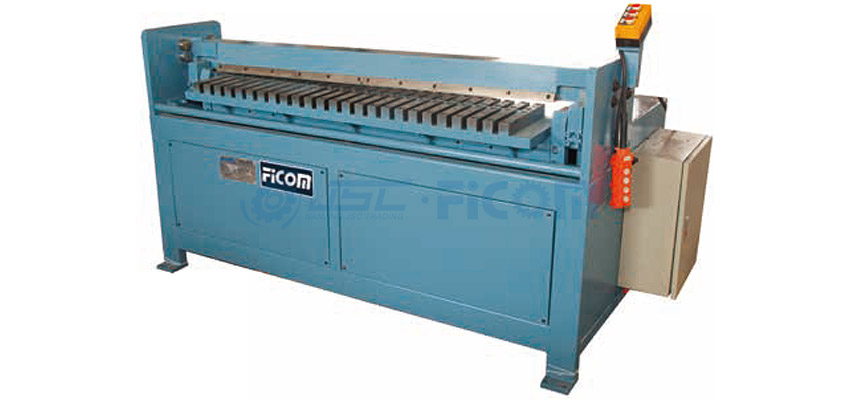

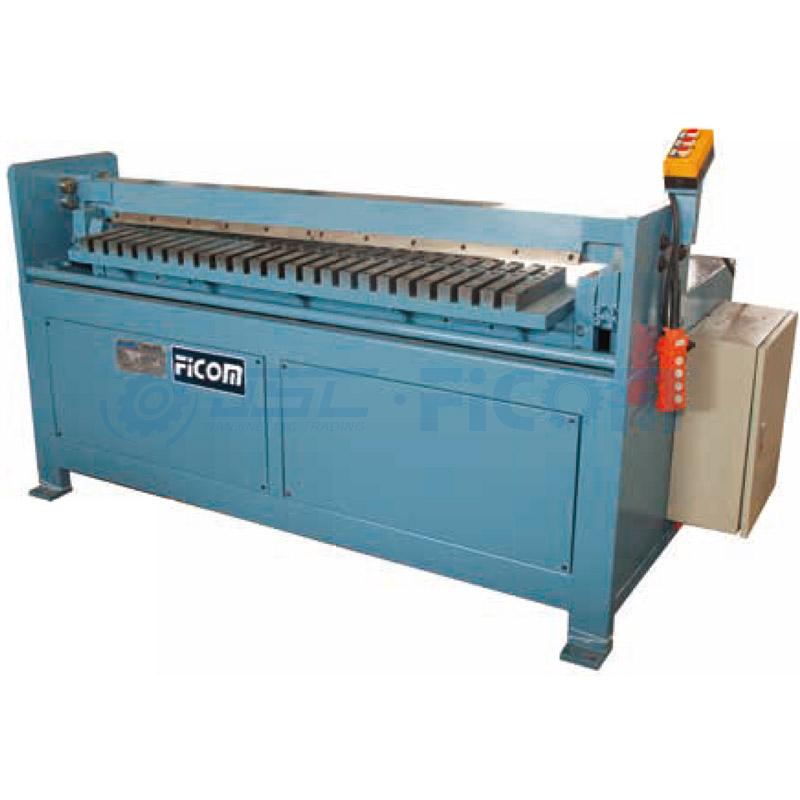

TB Hydraulic TDF/TDC Wrap Machine

TDC/TDF Wrap Brake is a hydraulic drive Bending Machine. The TDC Wrap Brake has a slotted bed and solid top forming beam. It is designed to form an L-section or Wrap(one-piece) TDC/TDF duct. The TDC/TDF Notch Locator positions the duct in the proper bending location for forming. This allows one-person operation. The machine is also designed to form various length fittings with a TDC Flange and Pittsburgh or Snap Lock seams.
Availability:
Quantity:
  • TB

  • FICOM

Overview


17


Technical Parameters
Model

TB-1.2×1500

TB-1.2×2000
Max Bend Thickness (mm) 1.2 1.2
Max Bend Length (mm) 1500 2000
Min Wrap Size (mm) 200×200 200×200
Frame Rugged Welded Steel Rugged Welded Steel
Beam With Power With Power
TDC/TDF Notching Locator TDC/TDF Notching Locator TDC/TDF Notching Locator
Motor Power (Kw) 4 4
Hydraulic Oil Storage (L) 80 80
Weight (Kg) 1200 1500
Dimension (mm) 1900×700×900 2500×700×900
