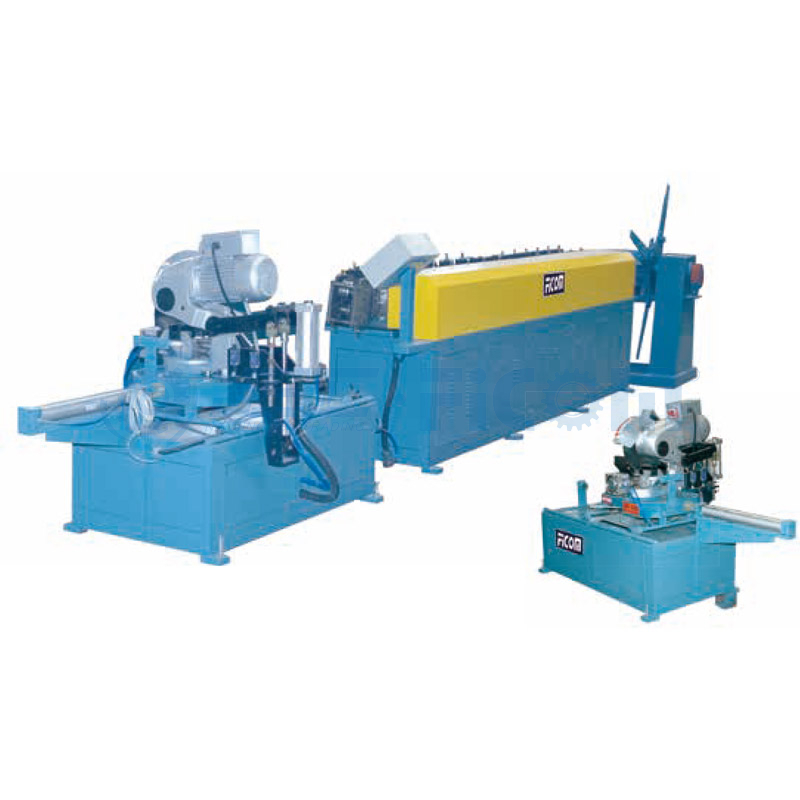

T-20 / T-25 / T-30 / T-35 / T-40 TDC2 Flange Machine

TDC2 Flange duct Machine(TDC2 Name German Flange) is mainly flange size in duct make flange. It can fit and pass main country duct install standard in the world.
The system is to make up of uncoiler, rollforming main machine, cutting system and product frame.
Cutting style: Hand cutting or automatic hydraulic&air punch cutting.

Quantity:
  • T-20 / T-25 / T-30 / T-35 / T-40
  • FICOM

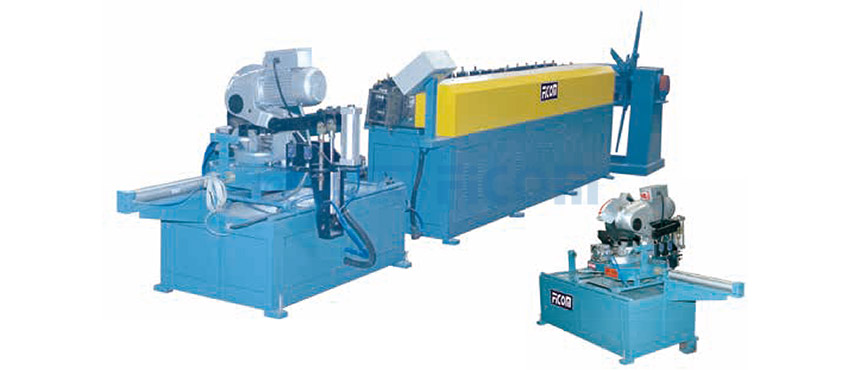

Overview


07-1

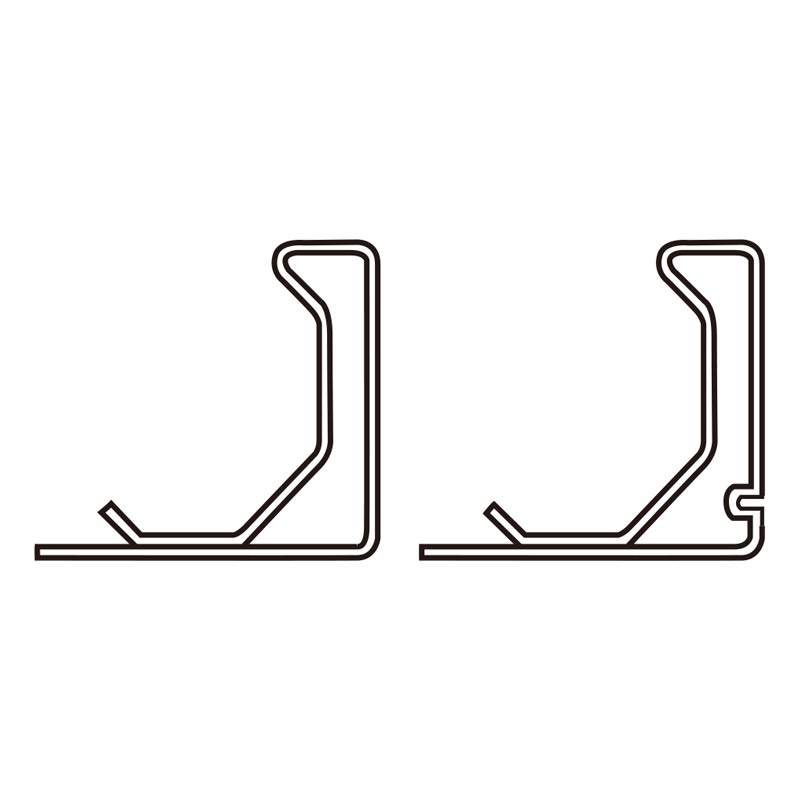

TDC2 Profile

07-2

Technical Parameters
Model

Flang Height

(mm)

Thickness

(mm)

Power

(Kw)

Weight

(Kg)

Dimension

(mm)

T-20 / T-20C 20 0.6-0.8 3 2200 3800×600×1250
T-25 / T-25C 25 0.6-0.8 3 2500 3800×600×1250
T-30 / T-30C 30 1.0 3 2700 4300×600×1250
T-35 / T-35C 35 1.0 4 3100 4300×600×1250
T-40 / T-40C 40 1.0-1.2 4 3300 4300×600×1250
