Surface Grinder: Precision Grinding for High-Quality Metal Finishing

Why Surface Grinding Matters in Modern Manufacturing

Precision is critical in industries where even small dimensional errors can affect assembly, performance, and product quality.

Traditional machining processes can leave machining marks, uneven surfaces, or dimensional variations. A surface grinder provides a controlled grinding process that removes small amounts of material and produces highly accurate, flat surfaces.

For manufacturers working with steel, cast iron, hardened materials, and other metals, surface grinding can be an important finishing process after milling, cutting, or heat treatment.

What Is a Surface Grinder?

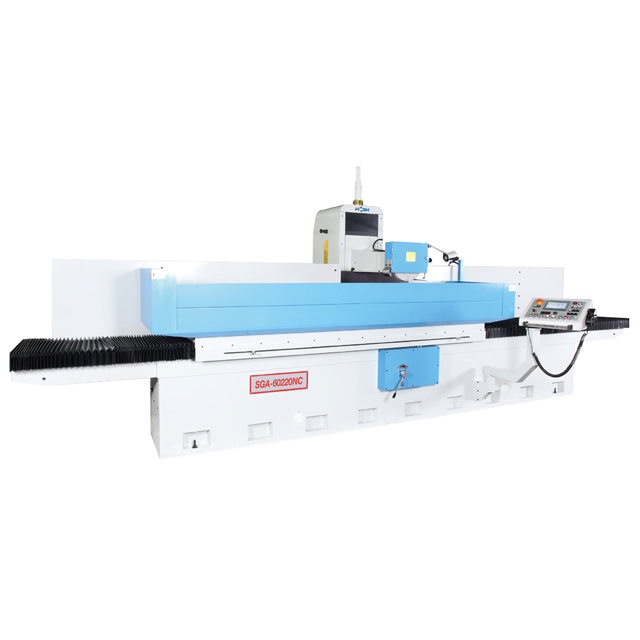

A surface grinder is a precision machine tool designed to grind the surface of a workpiece using a rotating abrasive grinding wheel.

The machine typically consists of:

· Grinding wheel and spindle

· Worktable

· Magnetic chuck or workholding system

· Longitudinal and cross-feed mechanisms

· Vertical grinding adjustment

· Coolant system

· Control system

During operation, the grinding wheel moves across the workpiece while removing a controlled amount of material. This allows manufacturers to achieve precise dimensions and improved surface finish.

Key Advantages of a Surface Grinding Machine

1. High Dimensional Accuracy

Surface grinding is suitable for applications requiring tight dimensional control. Small amounts of material can be removed gradually, helping operators achieve the required thickness and flatness.

2. Excellent Surface Finish

A properly selected grinding wheel and optimized grinding parameters can produce a much smoother surface than conventional milling or cutting processes.

3. Improved Flatness

Flatness is especially important for machine components, fixtures, molds, dies, guideways, and precision parts. Surface grinding helps correct minor unevenness left by previous machining operations.

4. Consistent Production Quality

For repeated production, a reliable grinding process helps maintain consistent dimensions and surface quality from one workpiece to another.

5. Efficient Finishing Process

A surface grinder can perform precision finishing after processes such as milling, sawing, cutting, and heat treatment, reducing the need for manual finishing.

Surface Grinder Applications

Surface grinding machines are widely used in different manufacturing industries, including:

Tool and Die Manufacturing
Grinding dies, molds, punches, plates, and precision tooling.

Automotive Manufacturing
Finishing engine components, machine parts, fixtures, and other precision components.

General Machinery
Producing flat and accurately sized machine components.

Aerospace Manufacturing
Supporting precision finishing requirements for selected metal components.

Steel Fabrication
Improving the dimensional accuracy and surface quality of machined steel parts.

Mold Manufacturing
Providing accurate and smooth surfaces for mold components and tooling.

Surface Grinder vs. Milling Machine

Although both machines can remove material, they are designed for different purposes.

A milling machine is generally used for material removal, profiling, slotting, drilling, and other machining operations. A surface grinder is primarily focused on precision surface finishing.

For example, a manufacturer may first use a milling machine to bring a component close to its final dimensions and then use a surface grinder to achieve the required flatness, thickness, and surface finish.

This combination can create a more efficient overall machining process.

How to Choose the Right Surface Grinder

When selecting a surface grinding machine, manufacturers should consider several important factors.

Workpiece Size

The working table size and grinding capacity should match the dimensions and weight of the components being processed.

Required Accuracy

Different applications require different levels of dimensional accuracy and flatness. The machine should be selected according to the final tolerance requirements.

Grinding Wheel

Grinding wheel material, hardness, grain size, and wheel specifications can significantly affect grinding performance and surface quality.

Spindle Performance

Stable spindle operation is important for achieving consistent grinding results and reducing vibration during machining.

Workholding System

Magnetic chucks are widely used for suitable ferrous workpieces, while other workholding methods may be required for non-magnetic materials or specialized components.

Production Volume

For high-volume production, manufacturers should consider machine rigidity, automation, feed control, coolant management, and ease of operation.

How to Improve Surface Grinding Performance

Good grinding results depend on more than machine specifications.

Operators should select the correct grinding wheel for the workpiece material, maintain proper wheel condition, control grinding depth, and use suitable coolant when required.

Regular inspection of the grinding wheel, spindle, table movement, and workholding system is also important.

Proper machine leveling and maintenance can further reduce vibration and help maintain long-term grinding accuracy.

Why Surface Grinding Is Important for Precision Manufacturing

As manufacturers face increasing demands for tighter tolerances and better surface quality, precision finishing has become an important part of modern production.

A high-quality surface grinding machine can help manufacturers:

· Improve dimensional accuracy

· Achieve better surface finish

· Reduce manual finishing

· Improve component consistency

· Reduce rework

· Support precision machining

· Increase overall production efficiency

For manufacturers producing precision components, choosing the right grinding equipment can directly influence machining quality and production reliability.

FAQ About Surface Grinders

What is a surface grinder used for?

A surface grinder is mainly used to produce accurate, flat, and smooth surfaces on metal workpieces.

What materials can be processed by a surface grinder?

Surface grinders are commonly used for materials such as steel, cast iron, hardened steel, and other suitable metal alloys.

Is surface grinding suitable for precision machining?

Yes. Surface grinding is widely used as a precision finishing process when tight dimensional tolerances and good surface quality are required.

What affects surface grinding accuracy?

Machine rigidity, spindle stability, grinding wheel selection, workholding, table movement, machine condition, and operating parameters can all affect grinding accuracy.

How often should a surface grinder be maintained?

Maintenance frequency depends on machine usage and working conditions. Regular inspection, cleaning, lubrication, grinding wheel maintenance, and accuracy checks are recommended.

Conclusion

A surface grinder provides an effective solution for manufacturers that need precise dimensions, excellent flatness, and high-quality metal surfaces.

From tool and die manufacturing to automotive, machinery, and general metalworking, surface grinding can improve the final quality and consistency of precision components.

Choosing a machine with suitable grinding capacity, stable performance, accurate movement, and reliable construction can help manufacturers build a more efficient and dependable precision machining process.

Looking for a surface grinding machine for your production requirements? Contact JSC to discuss suitable machine configurations and grinding solutions.
