Slotting Machine: Precision Machining for Keyways and Grooves

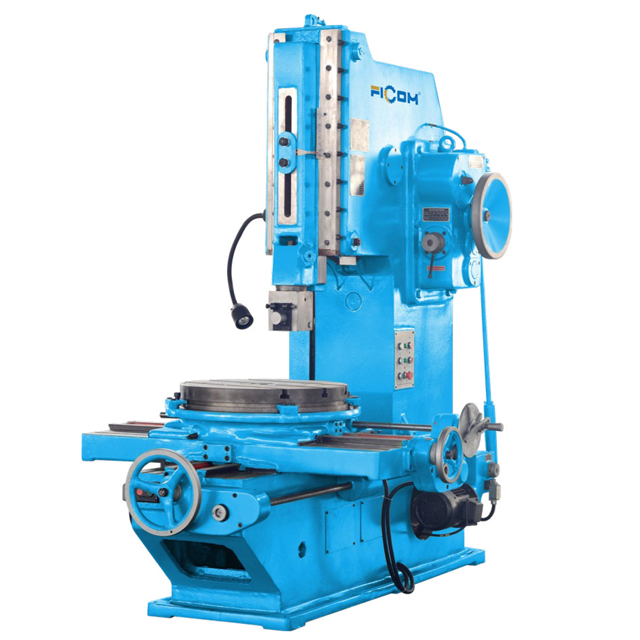

What Is a Slotting Machine?

A slotting machine is a metalworking machine designed primarily for cutting internal slots, keyways, grooves, and other vertical or internal profiles.

Unlike conventional milling machines, which generally use a rotating cutting tool, a slotting machine uses a reciprocating cutting tool. The tool moves vertically against the workpiece and removes material during the cutting stroke.

This machining principle makes slotting machines particularly useful for components where internal machining is difficult with standard equipment.

Common applications include:

· Internal keyways

· Internal grooves

· Square and rectangular slots

· Spline-related machining

· Gear components

· Machine shafts and hubs

· Bearing housings

· Industrial mechanical components

Why Use a Slotting Machine for Keyway Machining?

Keyways are essential mechanical features used to connect shafts, gears, pulleys, couplings, and other rotating components.

Producing an accurate keyway requires control over:

· Slot width

· Slot depth

· Position

· Surface finish

· Dimensional consistency

A slotting machine provides controlled cutting movement, making it suitable for producing keyways with consistent dimensions.

For workshops that frequently manufacture shafts, hubs, gears, and transmission components, a dedicated keyway slotting machine can simplify production and reduce dependence on manual machining methods.

Slotting Machine vs. Milling Machine

Both slotting machines and milling machines are widely used in metalworking, but they are designed for different machining requirements.

When the primary requirement is internal slotting or keyway machining, a slotting machine can provide a more direct machining method.

For workshops handling a combination of external milling, drilling, and internal slotting operations, the two machine types can complement each other.

Key Advantages of a Slotting Machine

1. Accurate Internal Slot Machining

The vertical reciprocating cutting movement allows operators to machine internal slots with controlled dimensions.

This is especially important for components that require accurate mating between shafts, keys, gears, and other mechanical parts.

2. Suitable for Keyway Production

Keyway machining is one of the most common applications of a slotting machine.

The machine can be used to produce keyways in hubs, gears, pulleys, couplings, and other components.

3. Flexible Machining Applications

Depending on the machine configuration and tooling, slotting machines can process different slot shapes and sizes.

This flexibility makes them suitable for both general machine shops and specialized manufacturing environments.

4. Reliable Metal Cutting

A rigid machine structure and stable cutting process can help maintain machining consistency during repeated production.

This is particularly useful when manufacturers need to produce multiple components with similar internal features.

5. Reduced Dependence on Manual Methods

Traditional internal keyway machining methods may require additional tools, fixtures, or manual operations.

A dedicated slotting machine provides a more systematic machining solution and can help improve production efficiency.

How Does a Slotting Machine Work?

The basic working process is relatively straightforward.

First, the workpiece is securely positioned on the machine table. The appropriate cutting tool is then installed and aligned with the required machining position.

During operation:

1. The cutting tool moves vertically.

2. The tool engages with the workpiece during the cutting stroke.

3. A small amount of material is removed.

4. The tool returns during the return stroke.

5. The cutting depth is gradually increased.

6. The process continues until the required slot dimensions are achieved.

Proper workpiece clamping and tool alignment are important for maintaining machining accuracy.

Applications of Industrial Slotting Machines

Slotting machines are used across many industrial sectors.

Automotive Manufacturing

They can be used for machining keyways and internal grooves in automotive transmission and powertrain components.

Gear and Transmission Manufacturing

Gears, hubs, couplings, and other transmission components often require accurately positioned internal slots or keyways.

General Machinery

Machine builders use slotting machines for various shafts, pulleys, mechanical housings, and custom components.

Industrial Equipment

Manufacturers of pumps, compressors, conveyors, and other industrial equipment may require internal keyways and grooves during component production.

Maintenance and Repair Workshops

A slotting machine can also be valuable for repair shops that need to reproduce or repair keyways in existing mechanical components.

How to Choose the Right Slotting Machine

Before purchasing a slotting machine, manufacturers should consider several technical factors.

Maximum Slotting Length

The available stroke length determines the maximum machining depth or working range of the machine.

Choose a model that can accommodate the dimensions of your typical workpieces.

Table Size

A larger worktable provides greater flexibility for positioning larger components and workholding fixtures.

Cutting Force

The machine should provide sufficient cutting capacity for the materials and dimensions of the components being processed.

Spindle or Tool Speed

Appropriate cutting speed and reciprocating frequency are important for achieving efficient machining and acceptable surface quality.

Machine Rigidity

A rigid structure helps minimize vibration and improves dimensional stability during machining.

Control System

Depending on production requirements, manufacturers can choose between conventional and CNC-controlled configurations.

For repetitive production, CNC control can provide greater process consistency and easier parameter management.

Slotting Machine for Modern Manufacturing

As manufacturers face increasing pressure to improve productivity while maintaining machining accuracy, selecting the right machine for each operation becomes increasingly important.

A slotting machine can provide a practical solution when internal keyways, grooves, and slots cannot be efficiently produced using conventional machining methods.

By combining appropriate machine capacity, tooling, workholding, and process parameters, manufacturers can build a more efficient machining workflow.

Maintenance Tips for Slotting Machines

Regular maintenance is essential for maintaining machine performance.

Important maintenance practices include:

· Inspecting cutting tools regularly

· Keeping guideways clean

· Checking lubrication systems

· Inspecting workholding components

· Checking machine alignment

· Removing metal chips from working areas

· Inspecting electrical and control components

· Following the manufacturer's maintenance schedule

Proper maintenance can help reduce unexpected downtime and extend machine service life.

Frequently Asked Questions

What is a slotting machine used for?

A slotting machine is mainly used for machining internal keyways, slots, grooves, and other vertical internal profiles in metal components.

Can a slotting machine cut keyways?

Yes. Keyway machining is one of the most common applications of slotting machines, particularly for shafts, hubs, gears, pulleys, and couplings.

What materials can a slotting machine process?

Depending on machine capacity and tooling, slotting machines can process various metals, including carbon steel, alloy steel, cast iron, and other engineering materials.

Is a slotting machine suitable for small batch production?

Yes. Its flexibility makes it suitable for prototype work, maintenance operations, small batches, and repeated industrial production.

What is the difference between a slotting machine and a shaping machine?

A slotting machine generally uses a vertical reciprocating cutting motion and is especially suitable for internal slots and keyways. A shaping machine typically uses a horizontal reciprocating motion and is more commonly used for external flat surfaces and profiles.

Conclusion

A slotting machine is an effective machining solution for producing internal keyways, slots, grooves, and other difficult-to-machine features.

Its controlled reciprocating cutting motion, flexible applications, and suitability for internal machining make it valuable for automotive, machinery, transmission, maintenance, and general metalworking applications.

For manufacturers looking to improve the efficiency and consistency of internal keyway and slot production, selecting a slotting machine with the appropriate stroke, table size, cutting capacity, rigidity, and control system is an important step toward building a reliable machining process.
