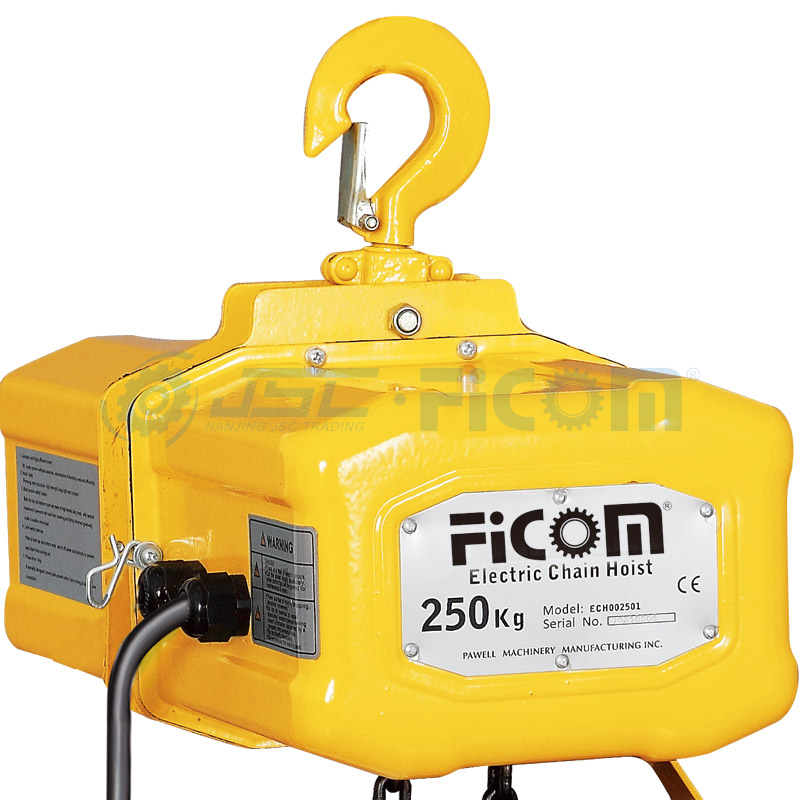

Single Phase Electric Chain Hoist Model: STD-S (Capacity:0.25 to 3 Ton)

125% SWL dynamic load test
Working voltage :220V50/60HZ 1 PH
Working duty:M3
Unique overloading safety protection
Electrical machine hot protection
Fast lifting speed,light selfweight
Convenient operation and beautiful appearance

Quantity:
  • STD-S
  • FICOM
Overview

Capacity:0.25 to 3 Ton

37

Technical Parameters

Capacity

(t)

Model


Lifting Speed

(m/min)

Motor Power

(Kw)

No. of Chai


Chain Size


Net Weight

(Kg)

0.25 STD-S-0.25-01S 3 8 1 5×15 22
0.5 STD-S-0.5-02L 3 4 2 5×15 25
0.5
STD-S-0.5-01S 3 7 1 7.1×21 55
1 STD-S-01-01S 3 6 1 7.1×21 60
2 STD-S-02-02S 3 3 2 7.1×21 65
3
STD-S-03-02S 3 2 3 7.1×21 70


Size Specification (mm)

37-5

Model H A B C D E F

STD--S-0.25-01S

430 210 210 116 104 262 24

STD-S-0.5-02L

450 210 210 92 128 262 24

STD-S-0.5-01S

500 245 245 158 142 350 34

STD--S-01-01S

520 245 245 158 142 350 34

STD-S-02-02S

630 245 245 124 176 350 40

STD-S-03-02S

710 245 245 124 176 350 45
