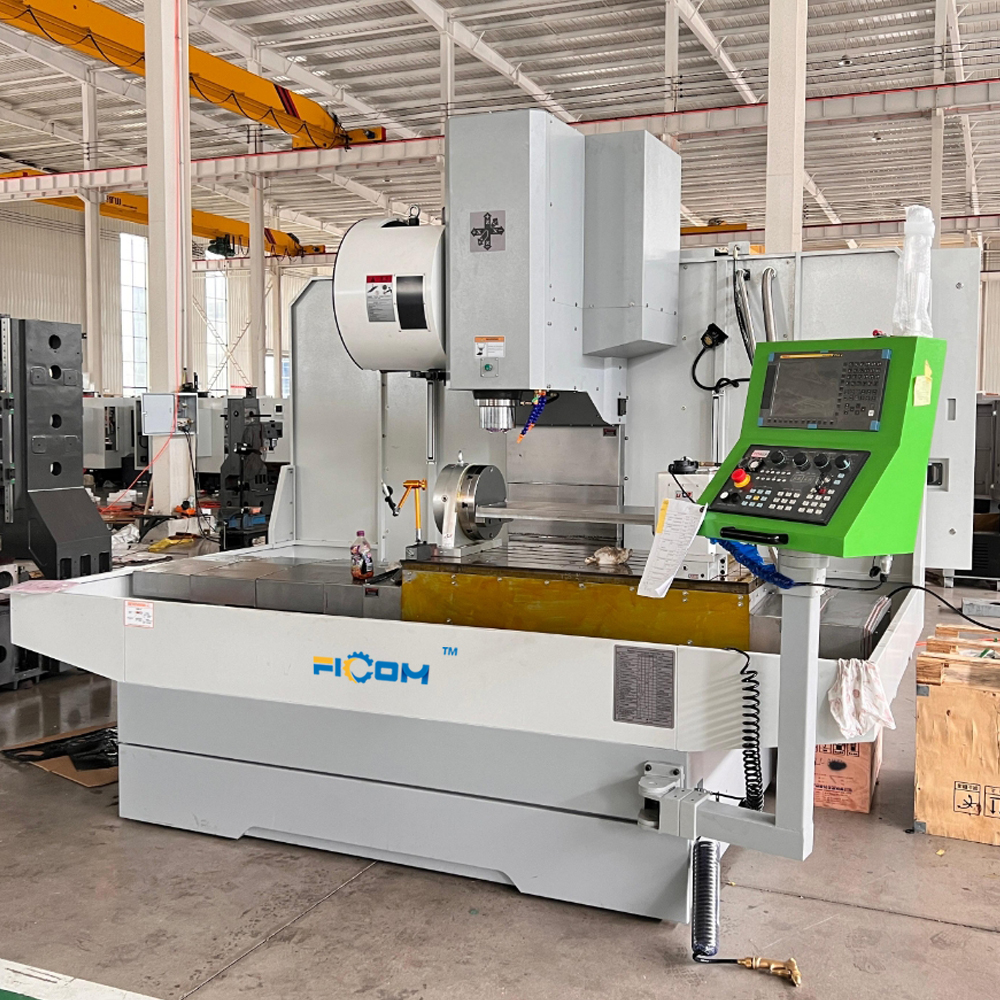

A Semi-Enclosed VMC is a vertical machining center equipped with a partial enclosure around the machining area. It combines the open accessibility of a conventional vertical machining machine with the containment benefits of an enclosed machining zone.
The spindle is vertically oriented, while the workpiece is secured on the machine table. Depending on the configuration, the machine can perform milling, drilling, tapping, boring, contouring, and other machining operations in a single setup.
The semi-enclosed design is particularly useful for manufacturers that need better chip and coolant control without completely enclosing the operator's working area.
Modern VMCs are widely used because their vertical spindle configuration provides convenient workpiece visibility and supports a broad range of machining operations.
The basic machining process is similar to other vertical machining centers:
1. Workpiece loading – The material is secured on the worktable using a vise, fixture, or other workholding system.
2. Program setup – The machining program defines tool paths, spindle speed, feed rate, and cutting movements.
3. Automatic tool selection – An automatic tool changer can select different tools according to the machining program.
4. Material removal – The spindle rotates the cutting tool while the machine controls X, Y, and Z-axis movement.
5. Chip and coolant management – The partial enclosure helps contain chips and coolant around the cutting area.
6. Inspection and unloading – The operator can access the work area efficiently for inspection, adjustment, or workpiece removal.
This combination of CNC control, automatic tooling, and vertical machining allows multiple operations to be completed with fewer manual interventions.
Machining steel, aluminum, stainless steel, and other materials generates chips and coolant splash. A semi-enclosed structure helps keep these materials within the immediate machining zone.
This can contribute to a cleaner working environment and reduce the amount of chips and coolant reaching surrounding equipment.
For higher-production applications, additional chip conveyors or chip removal systems can further improve housekeeping and machine utilization.
One of the major advantages of a semi-enclosed configuration is accessibility.
Operators can easily observe the cutting process, load workpieces, check fixtures, and perform measurements without dealing with a completely closed machine structure.
This is especially useful for job shops and manufacturers producing different parts in small or medium batches.
Vertical machining centers generally have a practical footprint compared with many larger machining systems. Their vertical spindle arrangement also provides a straightforward layout for workpiece loading and tool access.
For workshops where floor space is important, a Semi-Enclosed VMC Machine can provide a good balance between machining capability and space utilization.
A VMC is not limited to milling.
With appropriate tooling and programming, a single machine can perform:
· Face milling
· End milling
· Slot milling
· Drilling
· Tapping
· Boring
· Reaming
· Pocket machining
· Contour machining
· Chamfering
An automatic tool changer can reduce manual tool replacement and make it practical to combine several operations in one machining cycle.
The CNC system controls machine movements according to programmed coordinates and cutting parameters.
Once a machining process has been properly optimized, the same program can be reused for subsequent workpieces. This helps manufacturers maintain consistent dimensions and reduce variation between parts.
For batch production, repeatability can be especially valuable because setup and machining procedures can be standardized.
The choice between a semi-enclosed and fully enclosed VMC depends largely on production requirements.
Feature | Semi-Enclosed VMC | Fully Enclosed VMC |
Operator access | Very convenient | More restricted |
Workpiece visibility | Excellent | Good through viewing windows |
Chip containment | Good | Excellent |
Coolant containment | Good | Excellent |
Loading/unloading | Convenient | More controlled |
Manual inspection | Easy | Requires door opening |
Production environment | Flexible | Highly controlled |
Typical use | Job shops and varied production | Continuous production and heavy machining |
A semi-enclosed configuration is often attractive when accessibility and flexibility are important, while a fully enclosed machine may be preferable when coolant, chips, mist, and production automation require greater containment.
A reliable Semi-Enclosed Vertical Machining Center generally consists of several critical systems.
The base, column, saddle, and table provide the foundation for machining stability. A rigid structure helps minimize vibration and deformation during cutting.
The spindle determines important machining characteristics such as maximum speed, available torque, tool compatibility, and cutting performance.
The appropriate spindle specification should be selected according to the materials and machining operations involved.
High-quality guideways and ball screws support accurate and smooth axis movement.
Their performance directly affects positioning, repeatability, surface quality, and long-term machine stability.
An ATC allows the machine to automatically change tools according to the programmed machining sequence.
This reduces manual intervention and helps shorten non-cutting time.
The CNC controller coordinates spindle operation, axis movement, tool changes, feed rates, and machining cycles.
The control system should be selected according to the required programming functions, operator familiarity, automation requirements, and service support.
Coolant helps control cutting temperature, lubricate the cutting zone, and flush chips away from the workpiece.
For demanding applications, coolant capacity, flow rate, filtration, and chip removal should all be considered.
The guarding system provides a practical barrier around the machining zone while maintaining convenient access to the workpiece.
The exact enclosure design should be evaluated according to the machining process, chip volume, coolant usage, and required operator access.
A properly configured VMC can process a wide range of engineering materials.
Aluminum components benefit from high spindle speeds and appropriate cutting tools. VMCs are commonly used for brackets, housings, plates, fixtures, and lightweight structural parts.
For steel machining, machine rigidity, spindle torque, tooling, feed rate, and cutting depth become particularly important.
Stainless steel generally requires careful control of cutting speed, heat generation, tool selection, and coolant application.
VMCs can machine cast iron components when the machine structure, spindle, tooling, and chip-management system are properly matched to the application.
With suitable tooling and cutting parameters, VMCs can also be configured for copper, brass, and other non-ferrous materials.
The flexibility of vertical machining makes the machine suitable for many manufacturing environments.
Typical applications include:
· Brackets
· Housings
· Mounting plates
· Fixtures
· Engine-related components
· Transmission components
VMCs can machine mold bases, inserts, cavities, electrodes, and other precision components.
General machinery manufacturers can use semi-enclosed VMC machines to produce shafts supports, plates, brackets, flanges, housings, and custom mechanical components.
For appropriate machine configurations, VMCs can be used for precision structural parts and other components requiring controlled machining processes.
The accessibility and flexibility of a semi-enclosed machine make it useful for producing jigs, fixtures, tooling components, and prototypes.
VMCs are widely used across automotive, aerospace, mold, medical, and general precision manufacturing because they combine multiple machining operations with repeatable CNC control.
Selecting a VMC should begin with the parts you actually manufacture rather than simply choosing the largest available machine.
Check the maximum workpiece dimensions and weight.
The table must provide enough space for:
· Workpiece
· Fixture
· Vise
· Clamping devices
· Rotary equipment, if required
Axis travel determines the maximum machining envelope.
Choose sufficient travel for the largest workpiece while allowing enough clearance for tools, fixtures, and machining movements.
High spindle speed is useful for aluminum and finishing operations, while higher torque can be more important for heavier steel cutting.
The best spindle configuration depends on the material, tool diameter, cutting depth, and production requirements.
A larger tool magazine can be useful for complex components or production involving multiple tools.
For simpler machining jobs, a smaller tool magazine may provide a more economical solution.
Rigidity is critical for maintaining machining stability.
When comparing machines, consider the structural design, guideways, spindle support, table capacity, and overall machine construction rather than focusing only on advertised specifications.
If production volume is increasing, consider whether the VMC can support:
· Automatic tool changing
· Probing
· Rotary tables
· Chip conveyors
· Automatic workpiece loading
· Pallet systems
· Production monitoring
Automation can help reduce setup and non-cutting time and improve machine utilization.
For small and medium-sized manufacturers, equipment selection often involves balancing precision, flexibility, investment cost, floor space, and productivity.
A semi-enclosed VMC can be an attractive option when a workshop needs industrial CNC machining capability but still values convenient operator access.
It can be particularly suitable for:
· Prototype production
· Small-batch machining
· Job shops
· General mechanical components
· Fixtures and tooling
· Medium-volume production
· Customized OEM components
The key is to match the machine configuration to the actual workload rather than selecting features that will rarely be used.
Installing a VMC is only the first step. Productivity also depends on process planning and machine utilization.
Use appropriate tool geometry, coating, diameter, and material for each application.
Repeatable fixtures can reduce setup time and improve consistency between batches.
Organizing frequently used tools and standardizing machining programs can reduce non-cutting time.
Regular inspection of lubrication, coolant, guideways, spindle condition, tooling, and electrical systems can help prevent unexpected downtime.
Feed rate, spindle speed, cutting depth, and coolant application should be optimized according to the material and tooling.
A Semi-Enclosed VMC is a vertical machining center with partial guarding around the machining area. It provides improved chip and coolant containment while maintaining convenient operator access.
Yes. With an automatic tool changer, suitable workholding, optimized programs, and optional automation, a semi-enclosed VMC can support medium- and high-volume production. However, the optimal enclosure and automation configuration depends on the production process.
A conventional vertical milling machine generally requires more manual intervention, while a VMC uses CNC control and typically integrates features such as automatic tool changing, programmed axis movement, and automated machining cycles.
Yes. A properly configured VMC can machine carbon steel, stainless steel, and other engineering materials. Machine rigidity, spindle torque, tooling, coolant, and cutting parameters should be matched to the material.
Yes. Its flexibility, accessibility, and ability to perform multiple machining operations make it suitable for prototypes, customized components, and small- to medium-batch production.
Yes. Drilling and tapping are common VMC operations when the appropriate tools, spindle configuration, and machining programs are used.
A Semi-Enclosed VMC provides a practical combination of CNC machining capability, operator accessibility, chip control, and production flexibility.
For manufacturers producing mechanical components, fixtures, molds, automotive parts, tooling, and customized metal components, it can provide an effective balance between machining performance and operational convenience.
When choosing a Semi-Enclosed Vertical Machining Center, focus on the complete machining system—including machine rigidity, spindle performance, axis travel, worktable capacity, tool changing, coolant management, control system, and future automation requirements.
The right configuration is not simply the machine with the highest specifications. It is the machine that matches your workpieces, materials, tolerances, production volume, and long-term manufacturing goals.
