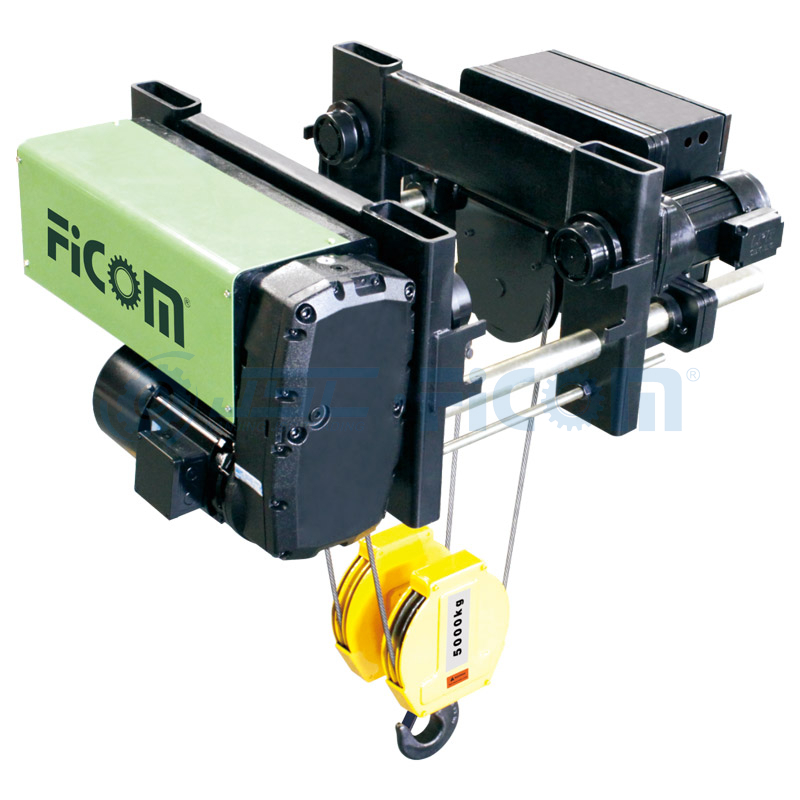

SHA XD
FICOM
| Mode | SHA2XD | SHA3XD | SHA4XD | ||||||
| Capacity (t) | 1.6 | 3.2 | 2.5 | 5 | 5 | 6.3 | 10 | 12.5 | |
| Classification | M5 | M5 | M5 | M5 | M5 | M4 | M5 | M4 | |
| Rope Reeving | 2/1 | 4/1 | 2/1 | 4/1 | 2/1 | 4/1 | |||
| Lifting Speed (m/min) | 8/1.2 | 4/0.6 | 8/1.2 | 4/0.6 | 10/1.6 | 5/0.8 | |||
| Lifting Motor (kw) | 2.5/0.37 | 4.9/0.8 | 12.5/2 | ||||||
| Traveling Speed (m/min ) | 20/6.7 | ||||||||
| Traveling Motor (kw) | 2x0.2/0.07 | 2x0.4/0.13 | 2x0.75/0.25 | ||||||
| Suitable for rail C (mm) | I | 94-180 | 116-180 | 142-180 | |||||
| H | 180-400 | 180-460 | 180-460 | ||||||

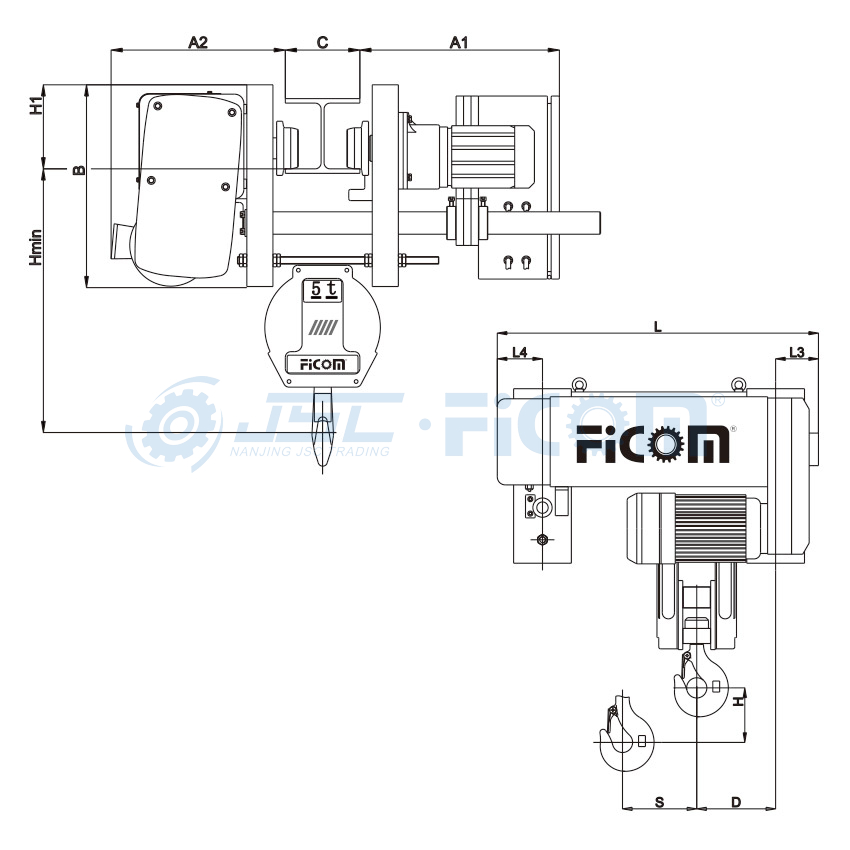

| A1 (mm) | 475 | 538 | 562 | ||||||
| A2 (mm) | 395 | 467 | 550 | ||||||
| B (mm) | 495 | 545 | 670 | ||||||
| H1 (mm) | 225 | 225 | 275 | ||||||
| Hmin (mm) | 575 | 560 | 765 | 700 | 940 | 850 | |||
| L3 (mm) | 137 | 134 | 158 | ||||||
| L4 (mm) | 137 | 141 | 160 | ||||||
| D (mm) | 133 | 204 | 141 | 246 | 175 | 287 | |||
| S (mm) | 0.0198H | 0.0212H | 0.0192H | ||||||
L (mm) Lifting height (H) | 6m | / | 971 | / | 1002 | / | 1053 | ||
| 9m | / | 1901 | / | 1256 | / | 1231 | |||
| 12m | 971 | 1429 | 1002 | 1151 | 1053 | 1462 | |||
| 15m | / | 1668 | / | 1766 | / | 1693 | |||
| 18m | 1901 | / | 1256 | / | 1231 | / | |||
| 24m | 1429 | / | 1151 | / | 1462 | / | |||
| 30m | 1668 | / | 1766 | / | 1693 | / | |||
