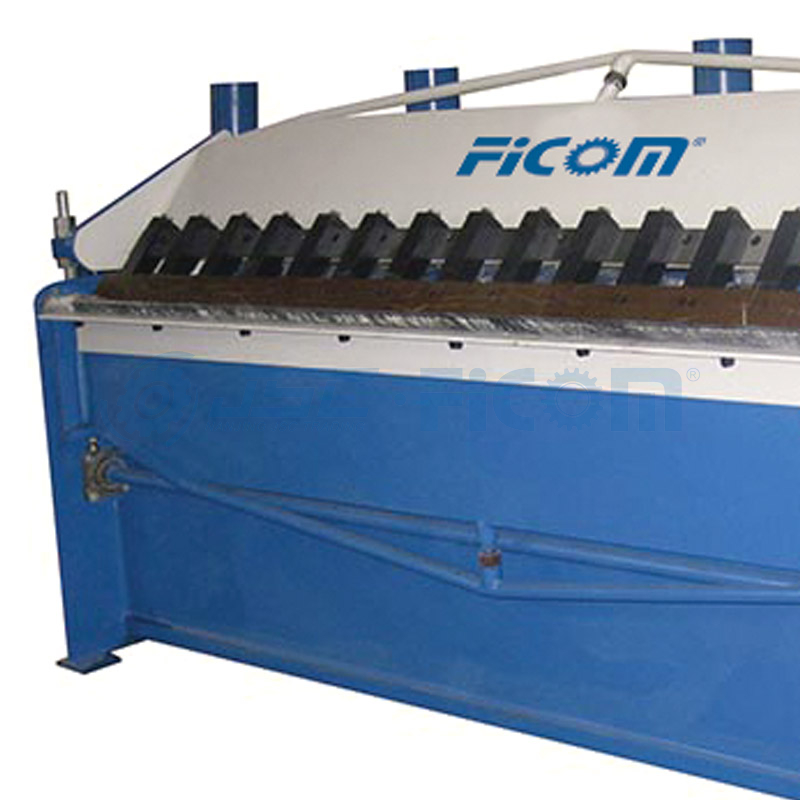

SH Semi-Hydraulic Pan Folder

· Heavy duty steel fabricated frame provides accurate bends.
· Hydraulic bending with manual material clamp.
· With foot pedal.
· Extended fingers allows bending of pans or boxes to a depth of 230mm.
· Ground segmented fingers can be repostioned to suit many applications.
· Easy to use single angle programmable controller incorporating digital readout for angles from 0-130°.
· Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position.
· Safety top beam support stop lever located on right side of machine.
· Quick action beam adjustment for varying material thickness.
· Includes rear manual back gauge.

Quantity:
  • SH
  • FICOM
Overview

SH-Semi-Hydraulic-Pan-Folder

Technical Parameters
Model No. SH-2×2500
folder length 2500mm
folder thickness 0.5~2.0mm
max. lift of the upper beam 240mm
angle of the bending beam 0~130°
size(L×W×H) 3000×920×1500mm
G.W. 1800Kg
main motor 4Kw
