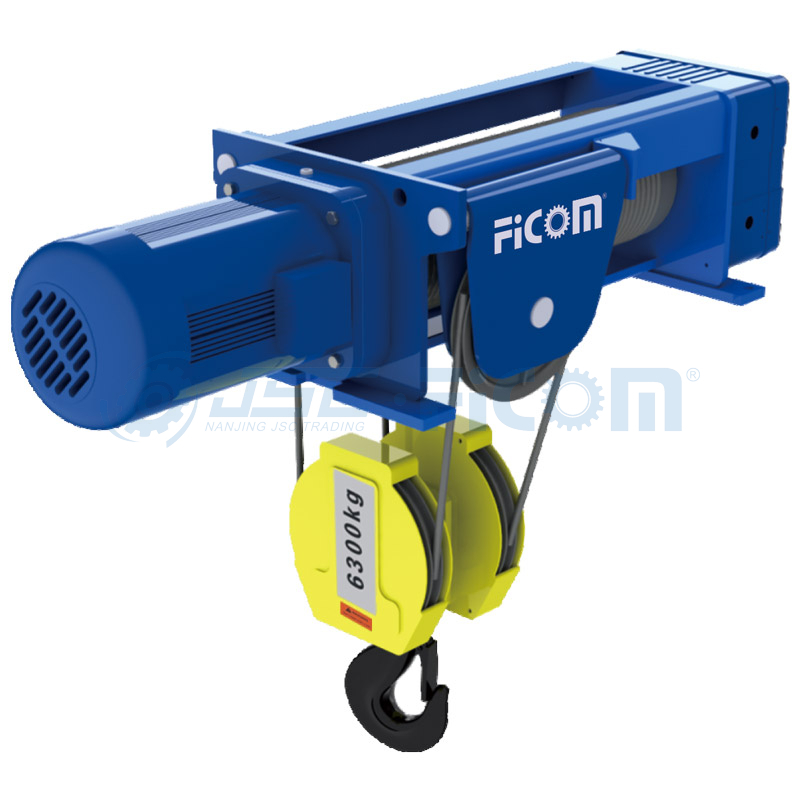

SH
FICOM
| Mode | SH4 | SH5 | SH6 | SH7 | SH8 | ||||||
| Capacity (t) | 3.2 | 6.3 | 10 | 16 | 20 | ||||||
| Classification | M4 | M4 | M4 | M4 | M4 | ||||||
| Rope Reeving | 4/1 | 4/1 | 4/1 | 4/1 | 4/1 | ||||||
| Lifting Speed (m/min) | 3.6 3.6/1.2 | 3.5 3.5/0.8 | 3.8 3.8/0.9 | 4 4/1 | 3.2 3.2/0.8 | ||||||
Lifting Motor (kw) | 3 3/1 | 4.5 4.5/1.1 | 7.5 7.5/2.0 | 13 13/3.4 | 13 13/3.4 | ||||||
| Traveling Speed (m/min) | 20 20/6.7 | 20 20/6.7 | 20 20/6.7 | 20 20/6.7 | 20 20/6.7 | ||||||
| Traveling Motor (kw) | 0.37 0.37/0.12 | 0.55 0.55/0.18 | 0.75 0.75/0.25 | 2x0.75 2x0.75/0.25 | 2x0.75 2x0.75/0.25 | ||||||

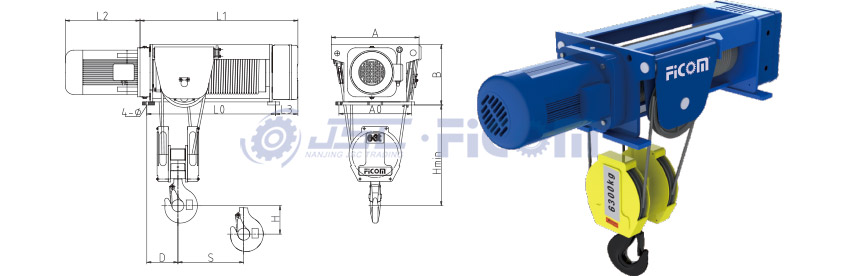

L2 (mm) | Singl Speed | 350 | 380 | 460 | 520 | 520 | |||||
Double Speed | 535 | 600 | 645 | 620 | 620 | ||||||
Suitable for rail C (mm) | I | 110-180 | 130-180 | 140-180 | 150-180 | 150-180 | |||||
| H | 180-420 | 180-420 | 180-450 | 180-300 | 180-300 | ||||||
| L5 (mm) | 375 | 429 | 434 | 434 | 434 | ||||||
| L4 (mm) | 282 | 278 | 308 | 186 | 186 | ||||||
| H1 (mm) | 121 | 151 | 179 | 179 | 179 | ||||||
| Hmin (mm) | 1105 | 1225 | 1314 | 1412 | 1412 | ||||||
| L3 (mm) | 147 | 161 | 194 | 250 | 250 | ||||||
| D (mm) | 142 | 157 | 175 | 208 | 208 | ||||||
| S (mm) | 0.0174H | 0.0182H | 0.0191H | 00.0194H | 0.0194H | ||||||
Lifting Standard (H) | 6m | 716 | 925 | 757 | 986 | 832 | 1101 | 885 | 1201 | 885 | 1201 |
| 9m | 924 | 1133 | 975 | 1204 | 1061 | 1330 | 1118 | 1434 | 1118 | 1434 | |
| 12m | 1132 | 1341 | 1193 | 1422 | 1290 | 1559 | 1351 | 1667 | 1351 | 1667 | |
| 15m | 1340 | 1549 | 1411 | 1640 | 1519 | 1788 | 1584 | 1900 | 1584 | 1900 | |
| Size | L0 | L1 | L0 | L1 | L0 | L1 | L0 | L1 | L0 | L1 | |
