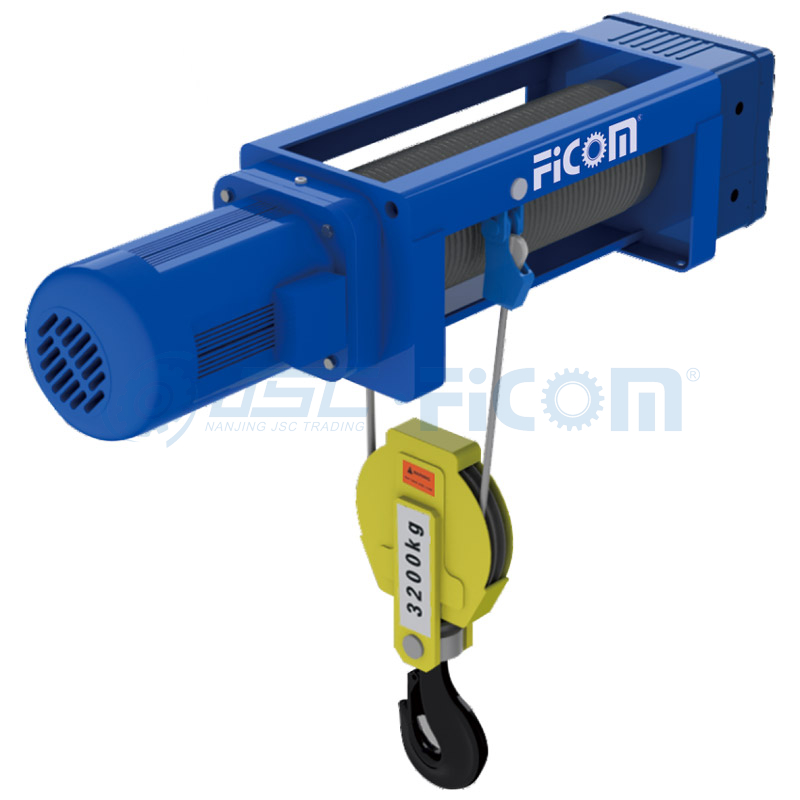

SH(2/1 Rope Reeving) Foot-mounted Hoist

Availability:
Quantity:
Inquire Add to Basket

  • SH

  • FICOM

Overview


SH


Technical Parameters
Mode SH3 SH4 SH5 SH6 SH7 SH8
Capacity (t) 1 2 3.2 5 8 10
Classification M4 M4 M4 M4 M4 M4
Rope Reeving 2/1  2/1 2/1 2/1 2/1 2/1
Lifting Speed (m/min)

8.4

8.4/2.1

7.2

7.2/2.4

7

7/1.6

7.6

7.6/1.8

8

8/2

6.4

6.4/1.6

Lifting Motor

(kw)

1.5

1.5/0.4

3

3/1

4.5

4.5/1.1

7.5

7.5/2.0

13

13/3.4

 13

13/3.4

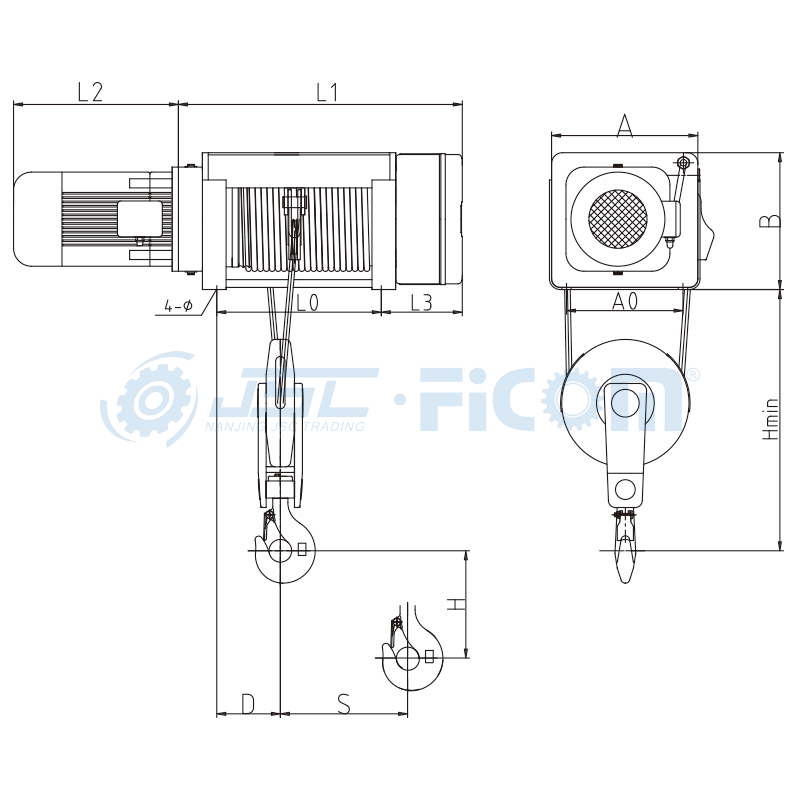

L2

(mm)

Singl

Speed

 300 350 380 460 520 520

Double

Speed

 500 535 600 645 620 620
Φ (mm) 13 18 18
 26
 26
 26
A (mm) 278 335
 370
 408
 480
 480
A0 (mm) 215 265 300 325 370 370
B (mm) 253
 310 346 381 455 455
Hmin (mm) 455 578 649 739 799 799
L3 (mm) 163 181 198 226 249 249
S (mm)
 0.0161H 0.0174H 0.0182H 0.0191H 0.0194H 0.0194H

Lifting

height (H)

 9m 431 681 113 494 771 148 524
 827 161 574 907 178 612 1005 204 612 1005 204
12m 528 778 113 648 925 198 683 986 211 768 1101 258 808 1201 284 808 1201 284
18m 722 972 113 1064 1341 198 1119 1422 211 1226 1559 258 1274 1667 284 1274 1667 284
24m 916 1166 113 1064 1341 198 1119 1422 211 1226 1559 258 1274 1667 284 1274 1667 284
30m 1110 1360 113 1272 1549 198 1337 1640 211 1455 1788 258 1597 1900 284 1597 1900 284
Size
 L0 L1
 D L0 L1
 D L0 L1
 D L0 L1
 D L0 L1
 D L0 L1
 D
