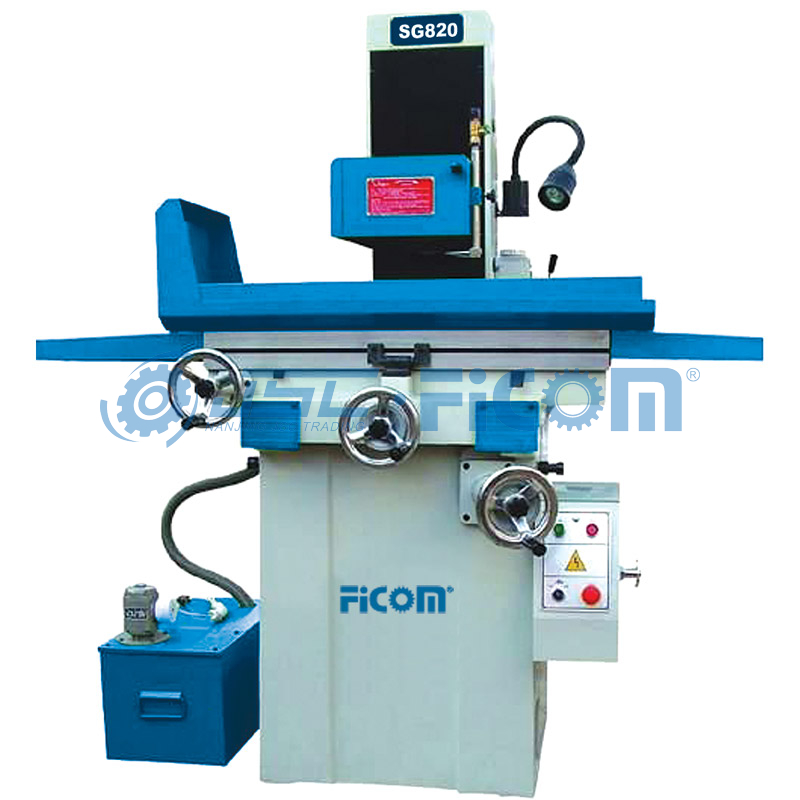

SG618/SG820
FICOM
| Model No. | SG618 | SG820 |
| max. worktable travel | 500x190x335mm | 520x220x490mm |
| worktable size(LxW) | 500x190mm | 530x220mm |
| working size(LxW) | 460x180mm | 480x200mm |
| distance between worktable surface to spindle center | 335mm | 490mm |
| max. loading capacity | 100kgs | 200kgs |
| cross feed | 0.02mm/Graduation 2.5mm/revolution | 0.02mm/Graduation 2.5mm/revolution |
| vertical feed | 0.01mm/Graduation 1.25mm/revolution | 0.01mm/Graduation 1.25mm/revolution |
| wheel size(Dia x W x Bore) | 180x12x31.75mm | 200x16x31.75mm |
| spindle speed | 2850rpm | 2850rpm |
| main motor | 1.1Kw | 1.1Kw |
| coolant pump | 0.24Kw | 0.24Kw |
| packing size | 1100x1020x1800mm | 1350x1160x1960mm |
| N.W./G.W. | 700Kg/800Kg | 800Kg/900Kg |
