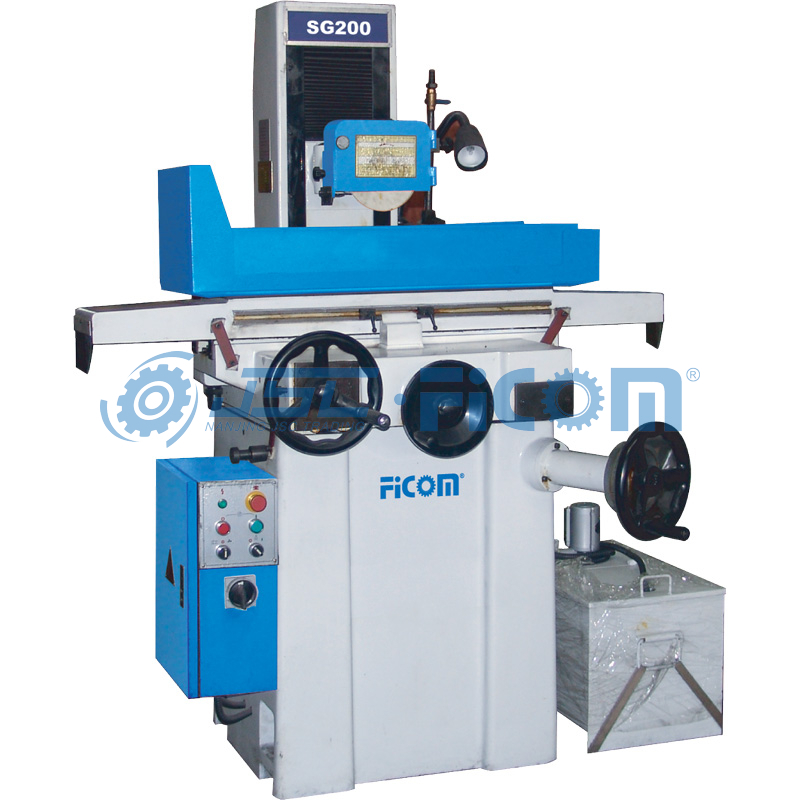

SG200/SG250
FICOM
· Widely useful, grind various surface.
· Rolling ball guideway is used on longitudinal direction.
· Double V type guideways.
· Vertical handwheel is fixed on bed.
· Manual oil pump lubricates all moveable parts.
| Model No. | SG200 | SG250 |
| max. width to be ground | 165mm | 220mm |
| max. length to be ground | 470mm | 520mm |
| max. height to be ground | 350mm | 350mm |
| work table size | 155×460mm | 200×520mm |
| permanent magnetic chuck size | 150×400mm | 200×450mm |
| max. longitudinal travel | 500mm | 570mm |
| max. cross travel | 200mm | 250mm |
| max. distance from spindle to table surface | 450mm | 450mm |
| feed of vertical handwheel | 2per rev. | 2per rev. |
| grinding wheel size(OD×W×ID) | 200×20×31.75mm | 200×20×31.75mm |
| spindle speed | 3450(60Hz)2850(50Hz) r/min | 3450(60Hz)2850(50Hz) r/min |
| power of spindle head | 1.5Kw | 1.5Kw |
| max. load capacity | 92Kg | 140Kg |
| packing size | 1670×1557×1930mm | 1670×1700×1985mm |
| N.W. | 1000Kg | 1120Kg |
| wheel | balancing arbor | hoisting set | spanner |
| wheel chuck | wheel dresser | levelling screw and block | tool box and special wrench |
| halogen lamp | coolant system |
| permanent magnetic chuck | dust collector | wheel balancing stand | cooling and dust collecting equipment |
