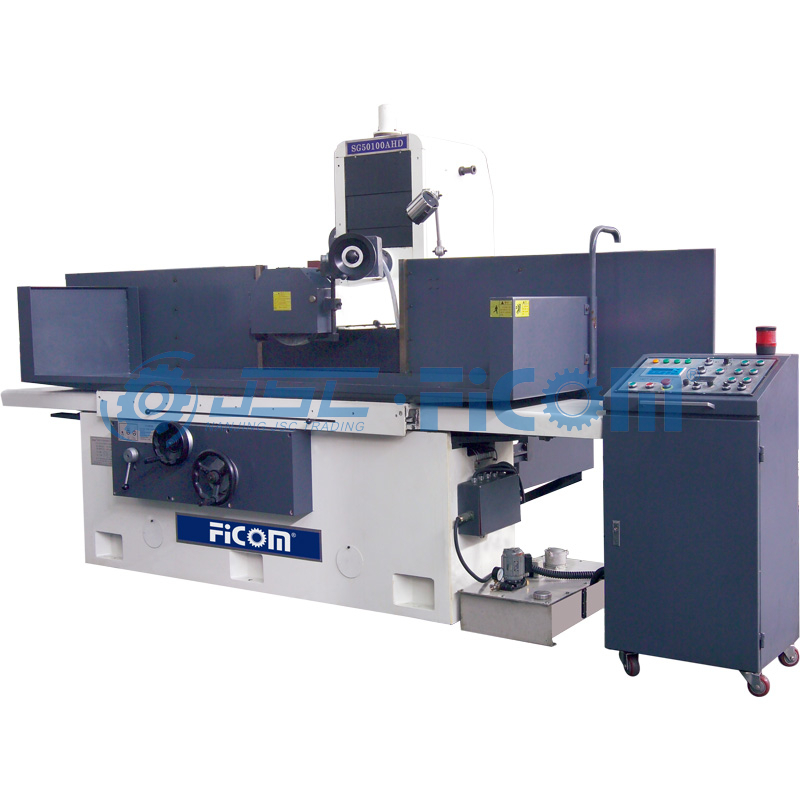

SG Series Column Moving Surface Grinder

Quantity:
  • SG
  • FICOM
Overview

· AHR: With rapid up & down, but without auto-feed.

· AHD: With rapid up & down and auto-feed.

SG


Technical Parameters
Model No.
Unit SG50100AHR/AHD SG50160AHR/AHD SG60120AHR/AHD SG60160AHR/AHD SG60220AHR/AHD
work table size mm 500×1000 500×1600 610×1200 610×1600 610×2200
max. grinding(W×L) mm 500×1000 500×1600 610×1200 610×1600 610×2200
max. distance from table to spindle center mm 600 600 600 600 600
magnetic chuck size(optional equipment) mm 500×1000×1 500×800×2 600×1000×1 600×800×2 600×1000×2
speed of table longitudinal movement m/min 5~25 5~25 5~25 5~25 5~25

wheelhead

cross

movement

auto feed mm/t 0.5~20 0.5~20 0.5~20 0.5~20 0.5~20
rapid speed m/min 1.25 1.25 1.25 1.25 1.25
feed of handwheel mm/div 0.02 0.02 0.02 0.02 0.02

wheelhead

cross

movement

auto feed mm/t -/ 0.005、0.01、0.015、0.02、0.03、0.04(only for AHD model)
rapid feed mm/min 230
feed of handwheel mm/div 0.002
wheel speed rpm 1450(50Hz)、1740(60Hz)
size(OD×W×ID) mm 355×(20~50)×127
motor of spindle Kw 7.5 7.5 7.5 7.5 7.5
max. loading capacity of table(include chuck) Kg 700 800 970 1230 1690
total rated power Kw 12 12 14 14 14
height of machine mm 2390(include the packing base)
floor space(L×W) mm 4700×2550 7120×2550 4740×2750 5340×2750 6740×2750
G.W. Kg 5500 6000 6500 7000 8000


Standard Accessories
coolant tank wheel dresserbase(without diamond pen) flange and wheel extractor standard grinding wheel
balancing arbor balancing stand working lamp leveling wedge and founation bolt

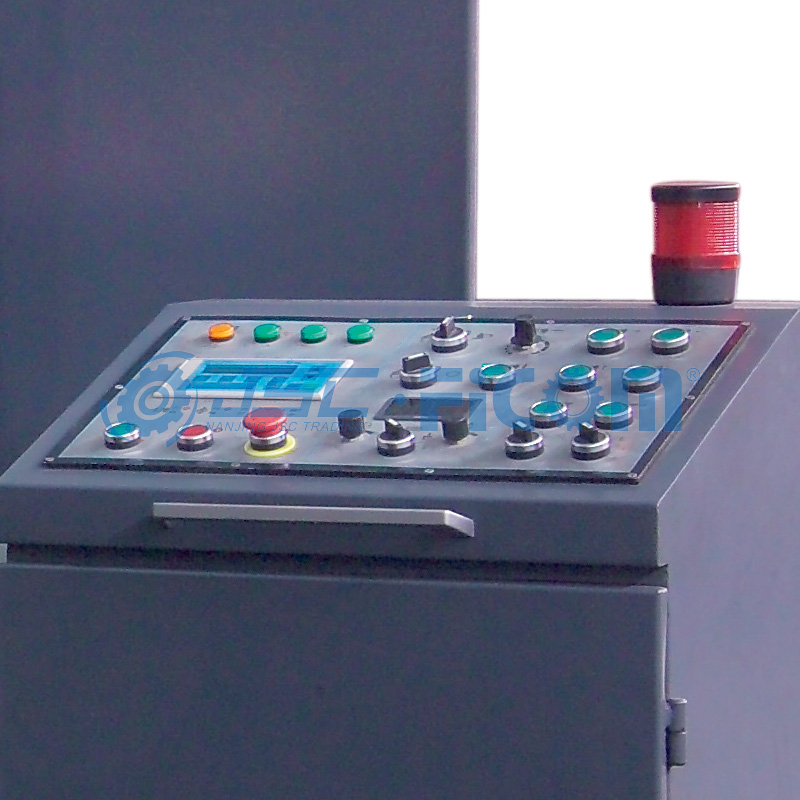

luxurious electro magnetic chuck controller PLC auto grinding controller(only for AHD model)


Optional Accessories
electro magnetic chuck manual parallel wheel dresser coolant tank with magnetic separator coolant tank with paper filter
coolant tank with paper filter and magnetic separator
