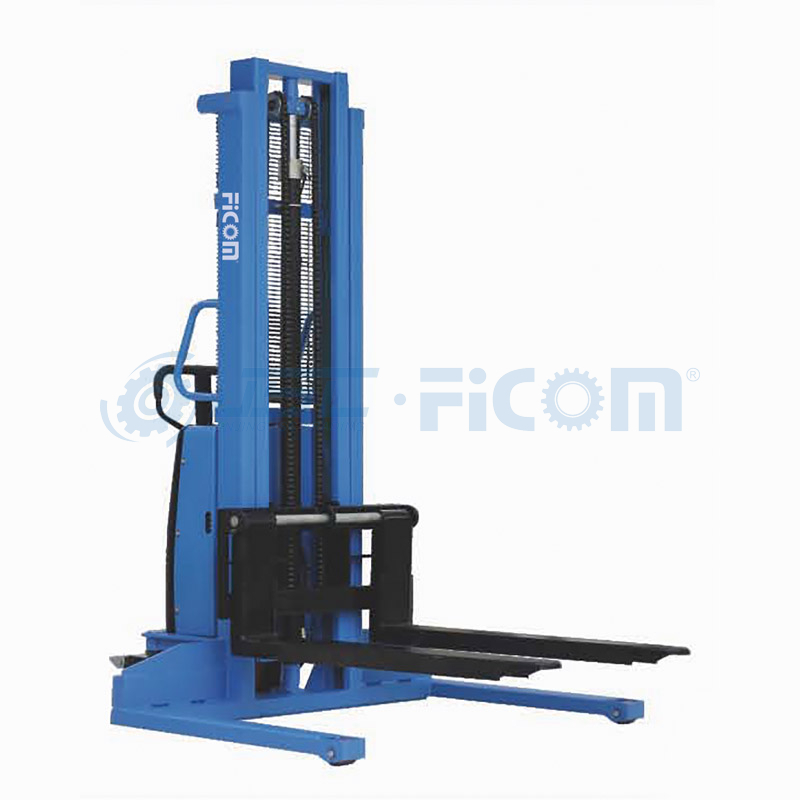

S10W / S15W / S15A
FICOM
·Air spring makes steering easier and more convenient.
·Battery indicator and emergency stop button on the control box can remind the operator to charge battery in time and stop machine any time under the emergent situation.
·Explosion-proof valve ensures the smooth fork-down in emergency.

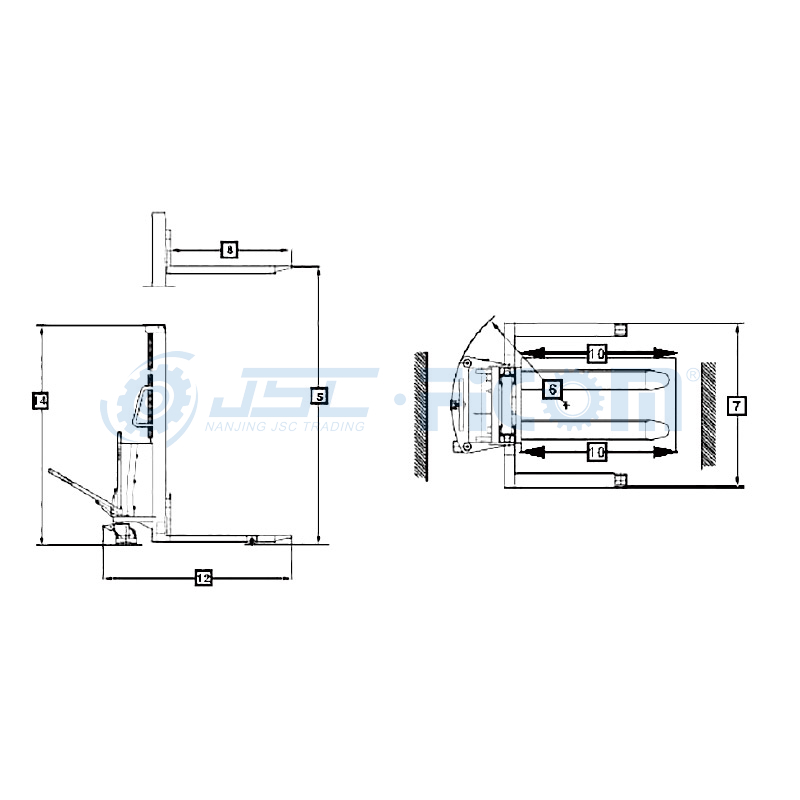

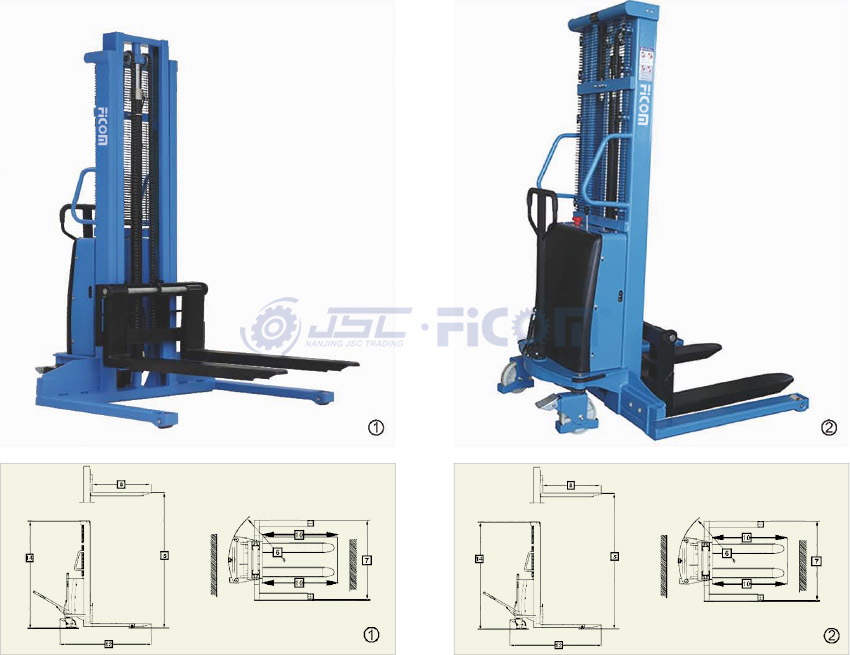

Model | Unit | S10W / S15W (1) | S15A (2) |
Rated Capacity | (kg) | 1000/1500 | 1000/1500 |
Max. Fork Height | (mm)(5) | 1600/2500/3000/3500 | 1600/2500/3000/3500 |
Min. Fork Height | (mm) | 85 | 85 |
Fork Length | (mm)(8) | 1150 | 1150 |
Fork Width (adjustable/fixed) | (mm)(10) | 330-830/540 | 330/830/540 |
Turning Radius | (mm)(6) | 2200-2300 | 2200-2300 |
Overall Length | (mm)(12) | 1857 | 1857 |
Overall Width | (mm)(10) | 850 | 850 |
Inner Width of Legs | (mm) | 1200/1300 | 900-1200 |
Outer Width of Legs | (mm)(7) | 1400/1500 | 1100-1400 |
Lowered Mast Height | (mm)(11) | 2025/1525/175/2025/2275 | 2025/1525/1775/2025/2275 |
Battery | V/Ah | 12/120 | 12/120 |
