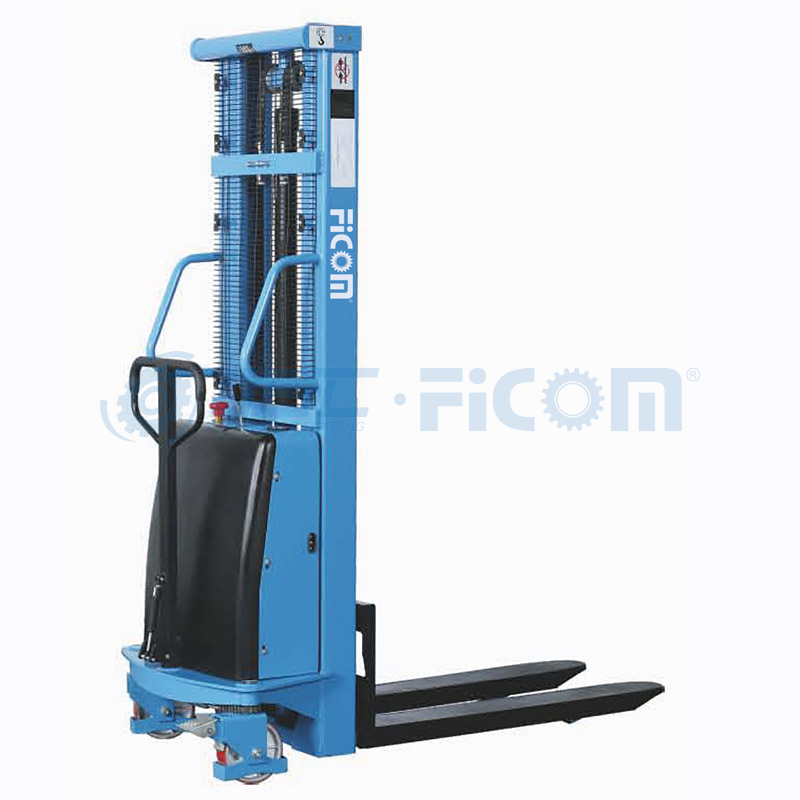

S10 / S15
FICOM
·C type steel is used on the frames, it has higher strength, especially for double mast series, and it is more stable when lifting.
·All series trucks are equipped with stretched safety grid, the grid and mounting screws are integrated, it is no easy to fall, and keeps more safer and convenien. Widened rear wheel frame can better protect the operator from being injured.
·Adjustable fork is opted.

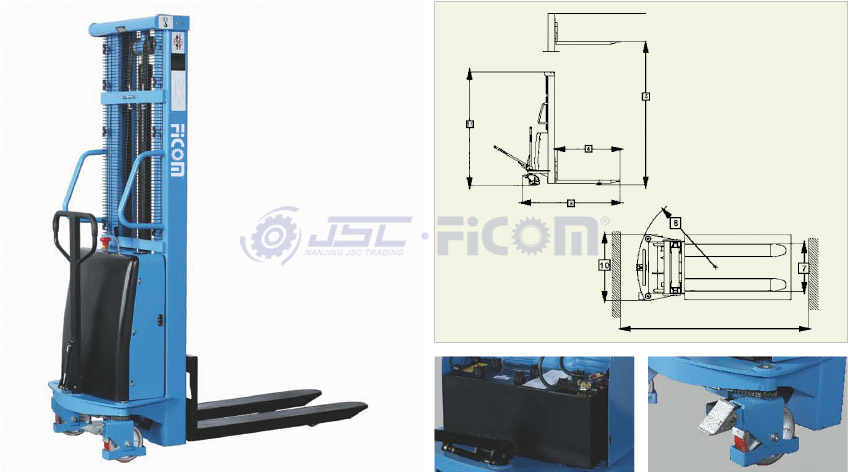

| Model | Unit | S10 / S15 |
| Rated Capacity | (kg) | 1000/1500 |
| Max. Fork Height | (mm)(5) | 1600/2500/3000/3500 |
| Min. Fork Height | (mm) | 85 |
| Fork Length | (mm)(6) | 1150 |
| Fork Width (adjustable/fixed) | (mm)(7) | 330-840/550 |
| Turning Radius | (mm)(8) | 1350 |
| Overall Length | (mm)(9) | 1790 |
| Overall Width | (mm)(10) | 850/745 |
| Lowered Mast Height | (mm)(11) | 2080/1800/2080/2350 |
| Battery | V/Ah | 12/120 |
·C type steel is used on the frames, it has higher strength, especially for double mast series, and it is more stable when lifting.
·All series trucks are equipped with stretched safety grid, the grid and mounting screws are integrated, it is no easy to fall, and keeps more safer and convenien. Widened rear wheel frame can better protect the operator from being injured.
·Adjustable fork is opted.
| Model | Unit | S10 / S15 |
| Rated Capacity | (kg) | 1000/1500 |
| Max. Fork Height | (mm)(5) | 1600/2500/3000/3500 |
| Min. Fork Height | (mm) | 85 |
| Fork Length | (mm)(6) | 1150 |
| Fork Width (adjustable/fixed) | (mm)(7) | 330-840/550 |
| Turning Radius | (mm)(8) | 1350 |
| Overall Length | (mm)(9) | 1790 |
| Overall Width | (mm)(10) | 850/745 |
| Lowered Mast Height | (mm)(11) | 2080/1800/2080/2350 |
| Battery | V/Ah | 12/120 |
