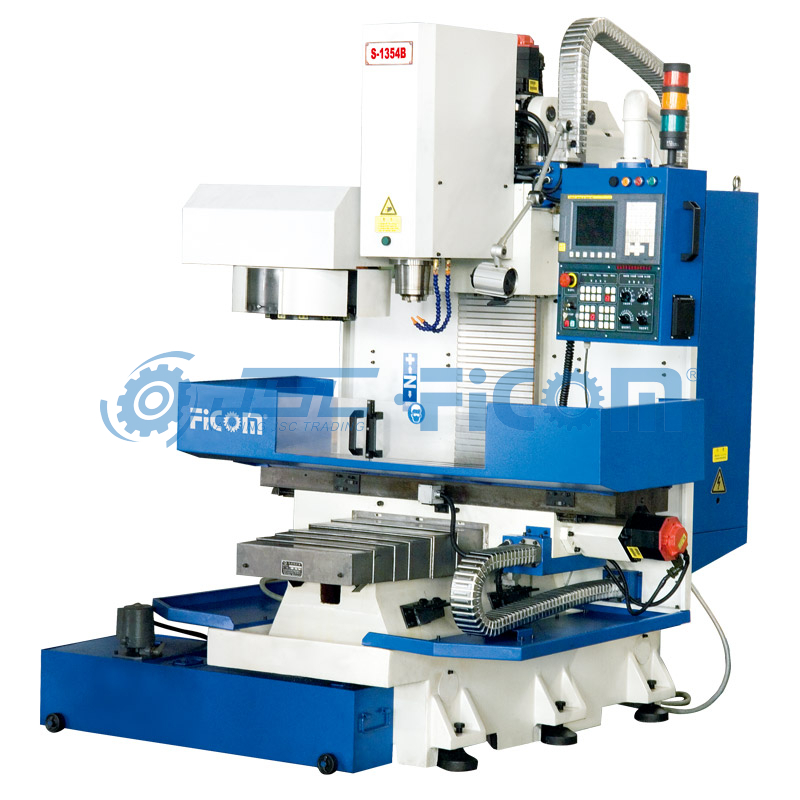

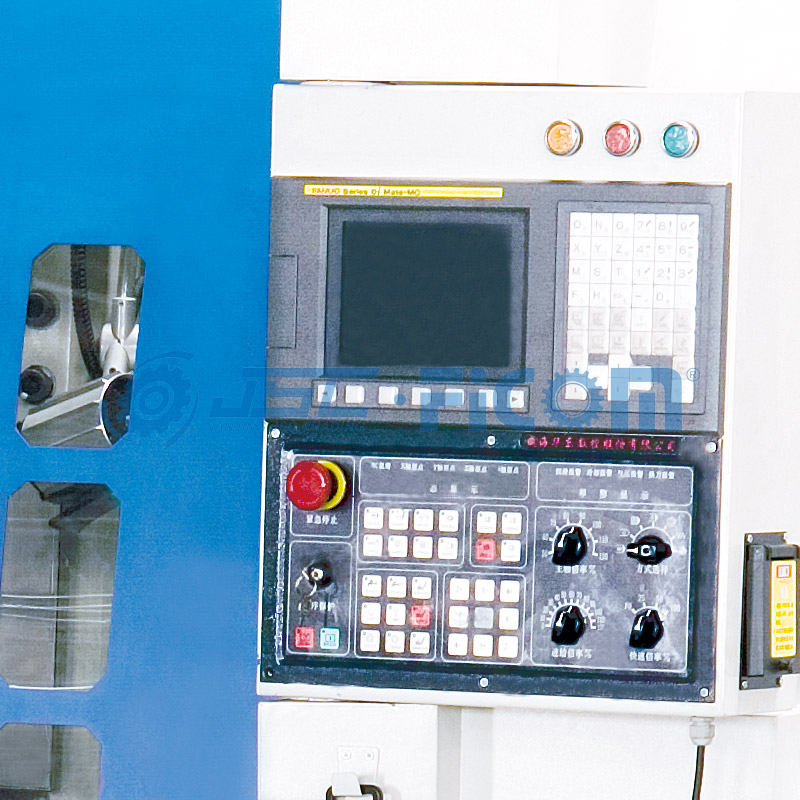

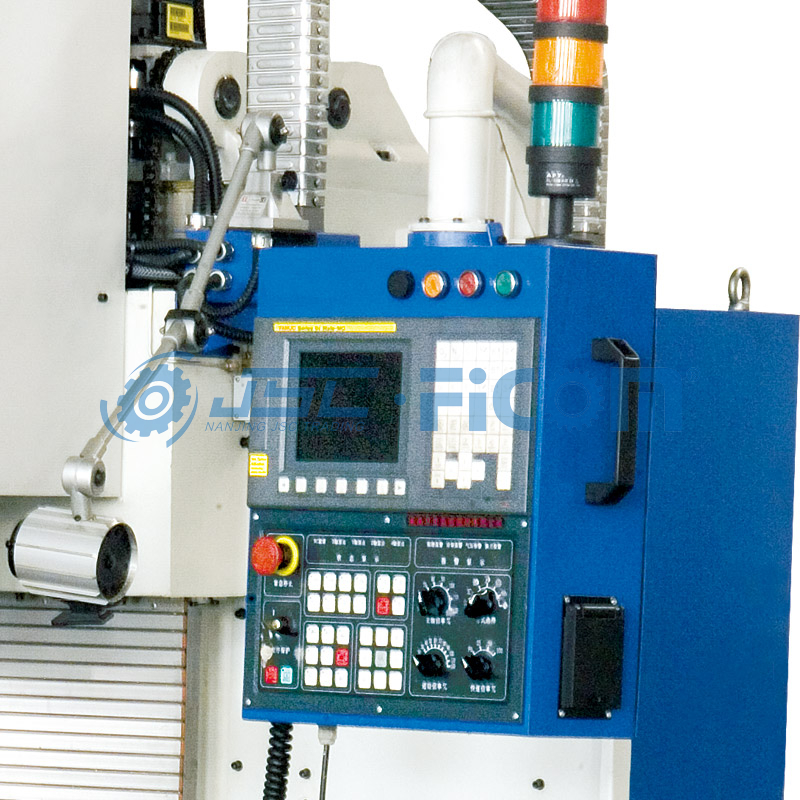

S Series Bed Type NC Milling Machine

Quantity:
  • S
  • FICOM
Overview



S


Technical Parameters
Model No. Unit S-1354B S-1654 S-2063 S-2063A S2473
work table table size(L×W) mm 1370×330 1370×406 1600×510 1600×510 1854×610
table loading capacity Kg 400 800 1200 1200 1500
T-slots W/mm×No 16×3 16×5 18×5 18×5 18×5
travel X-axis mm 800 1000 1200 1200 1500
Y-axis mm 450 480 700 800 740
Z-axis mm 480 600 600 740 700
max. move speed mm/min 10000 10000 10000 10000 10000
max. feed speed mm/min 3000 3000 4000 4000 4000
spindle spindle speed rpm/min RANGE:40~6000 RANGE:40~6000 RANGE:40~6000 RANGE:40~6000 RANGE:40~6000
spindle nose
BT40 BT40 BT40/BT50 BT40/BT50 BT40/BT50
spindle motor Kw 5.5 7.5 7.5 7.5 7.5
servo motor Kw X/Y:1.0, Z:1.5 X/Y/Z:1.5 X/Y/Z:2.0 X/Y/Z:2.0 X/Y/Z:2.0
spindle quill diameter mm φ120 φ150 φ150/φ160 φ150/φ160 φ150/φ160
distarce from spindle to column surface mm 160-640 20-620 60-660 60-800 80-780
ball screws X-axis mm φ32×5 P4 Double nuts φ32×5 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts
Y-axis mm φ32×5 P4 Double nuts φ40×5 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts
Z-axis mm φ32×5 P4 Double nuts φ40×5 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts φ40×10 P4 Double nuts
three axis accuracy positioning accuracy mm ±0.015 ±0.015 ±0.015 ±0.015 ±0.015
repeatability mm ±0.008 ±0.008 ±0.008 ±0.008 ±0.008
packing dimension servi-closure guard mm 2250×2280×2450 2500×2280×2650 2900×2280×2800 2900×2280×2900 2900×2280×2900
full-closure guard mm 2950×2280×2450 3300×2280×2650 4500×2750×2800

G.W. servi-closure guard Kg 2600 3800 5000 5400 6000
full-closure guard Kg 3400 4720 6400
