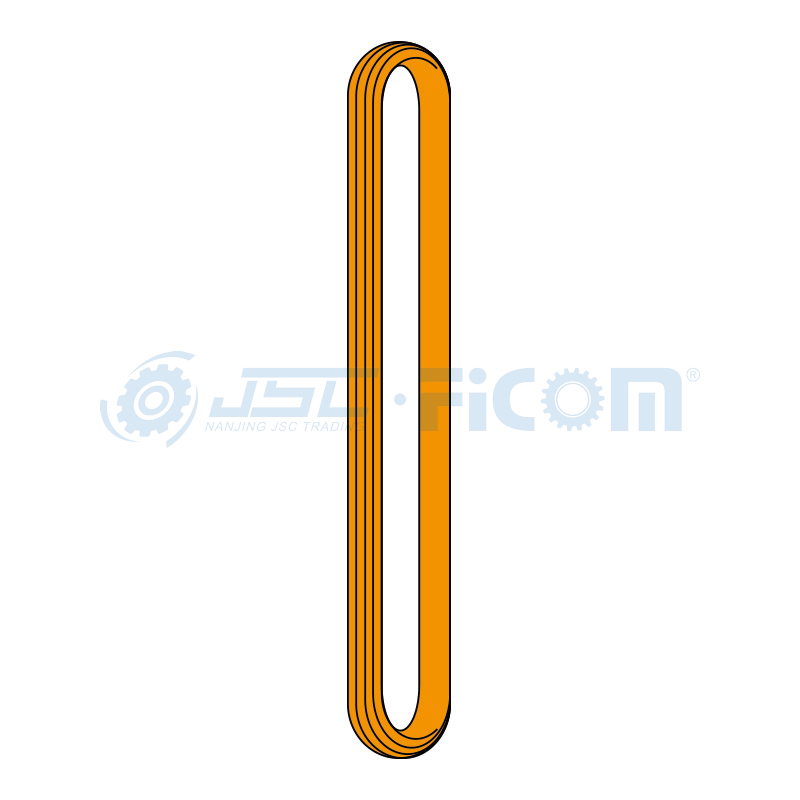

Round Slings, Item Code: 201###

Material: 100% high-strength polyester yarn.
With two ply woven heavy duty out sleeve.
Low elongation.

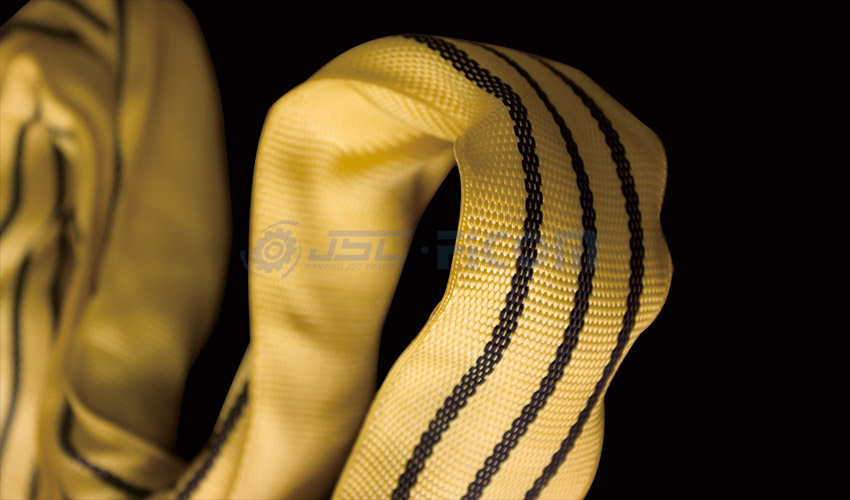

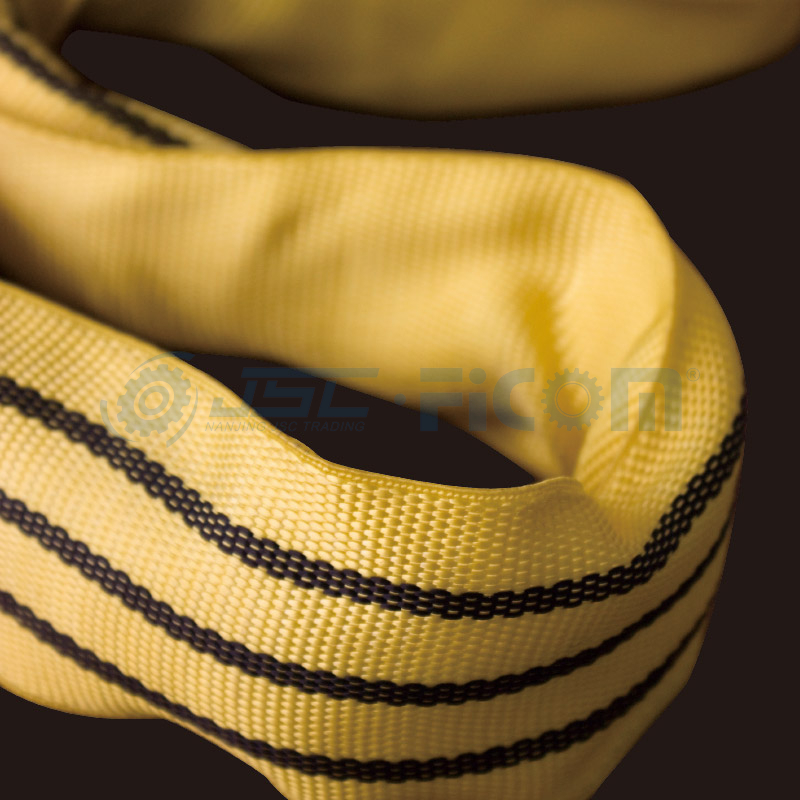

Each stripe is equal to 1 ton capacity.
Safety available: 1m-10m 1m to 10m.
Standard: European: EN1492-2:2000 Australian:AS1353-1-1997.

Quantity:
  • 201###
  • FICOM
Overview

Made from polyester according to EN 1492-2, with double stichless protection sleeve, with capacity label.

  • Color coding of the protective sleeve.

  • Low weight allows easy handling.

  • Protection against hand injuries.

  • Protection against cargo surface damage.

  • Heat resistant up to +100℃.

79



Item

Code

Colourcoded

Accoring to

En 1492-1

Working Load Limit With 1 Webbing Slings Working Load Limit With 2 Webbing Slings

Straight

Lift

Choked

Lift

β

Straight

Lift

45°

Choked

Lift

45°

Straight

Lift

45-60°

Choked

Lift

45-60°

0-7° 7-45° 45-60° up to 45° 45-60°
01 02 03 04 05 06 07 08 09 10 11
1.0 0.8 2.0 1.4 1.0 0.7 0.5 1.4 1.12 1.0 0.8
201010 WLL 1 T 1,000 800 2,000 1,400 1,000 700 500 1,400 1,120 1,000 800
201020 WLL 2 T 2,000 1,600 4,000 2,800 2,000 2,000 1,000 2,800 2,240 2,000 1,600
201030 WLL 3 T 3,000 2,400 6,000 4,200 3,000 2,100 1,500 4,200 3,360 3,000 2,400
201040 WLL 4 T 4,000 3,200 8,000 5,600 4,000 2,800 2,000 5,600 4,480 4,000 3,200
201050 WLL 5 T 5,000 4,000 10,000 7,000 5,000 3,500 2,500 7,000 5,600 5,000 4,000
201060 WLL 6 T 6,000 4,800 12,000 8,400 6,000 4,200 3,000 8,400 6,720 6,000 4,800
201080 WLL 8 T 8,000 6,400 16,000 11,200 8,000 5,600 4,000 11,200 8,960 8,000 6,400
201100 WLL 10 T 10,000 8,000 20,000 14,000 10,000 7,000 5,000 14,000 11,200 10,000 8,000
201200 WLL 12 T 12,000 9,600 24,000 16,800 12,000 8,400 6,000 16,800 13,440 12,000 9,600


Cautions


Do not exceed Working Load Limitied.

Prevent shock-loading.

When selecting a sling it is very important consider the angles at which the sling will be used.

Sling are subject to cutting when lifting items with sharp edges.In this case always use wear sleeves.

Do not use a damaged sling.

Never drag s sling from underneath a load that is resting on it.

Chemical active environents can effect the is strength of slings.

Operating temperrature range: -40°C to +100°C.

Inspect slings weekly or more frequently dependingon sling use.

Always store slings in a cool dry and dark place when they are not in use for prolonged penriods.

Always read and understand the operating instructions before us.
