Forged suspension and load hooks ,manufactured from non-aging,high alloy tempering steel,yield under overload instead of breaking.
The chain guide is integrated into the housing to eliminate fouling and jamming of the chain on the load sheave.
Robust chain stop.
The standard free chaining device serves to quickly attach the load.
Erogonomic handlever with rubber grip.
Hard chromium plated hand wheel.
Automatic screw-and-disc type load brake with corrosion protected compoments.
Sturdy bottom block with encapsulated bolt connections.
Due to optimized gearing a minimum effort is required to operate the short hand lever.
Quantity: | |
---|---|
Capecity: 500-6000kg
The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions.

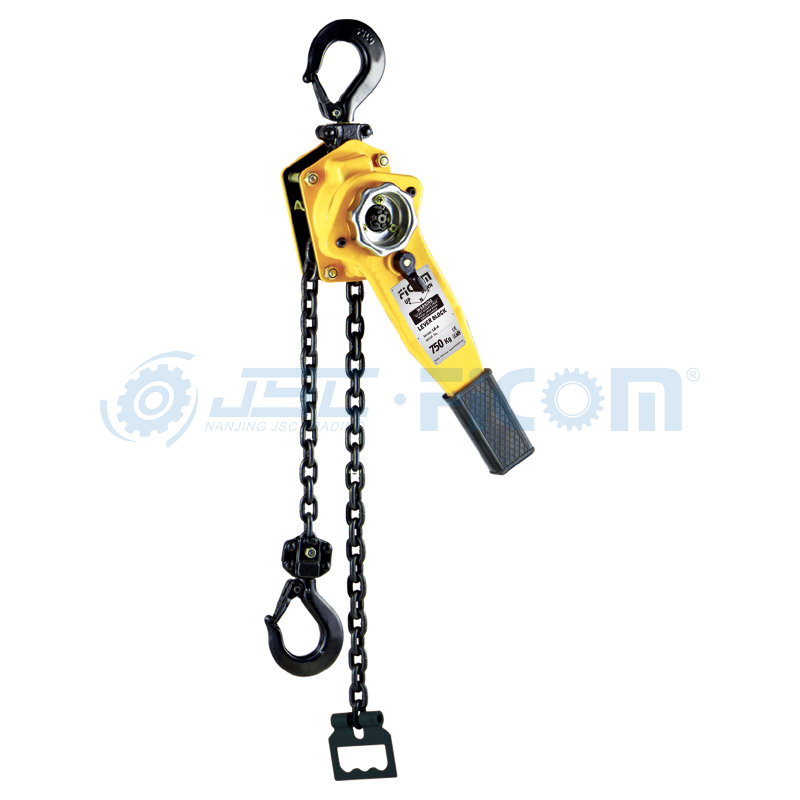

A hand lever hoist with a robust stamped steel construction and compact design.
The low tare weight and a smooth free chaining device make theLY a handy,universal tool.
Capacity (kg) | Model | No. of chain | Test Load (Ton) | ChainSize (mm) | Pull on Hand Chain at Wll N | Net Weight at Standard 3m Lift (kg) |
500 | LY0.5 | 1 | 750.00 | 5×15 | 98 | 5.9 |
750 | LY0.75 | 1 | 1125.00 | 6×18 | 137 | 6.6 |
1000 | LY01 | 1 | 1500.00 | 6×18 | 157 | 6.6 |
1500 | LY1.5 | 1 | 2250.00 | 8×24 | 216 | 10.8 |
2000 | LY02 | 1 | 3000.00 | 8×24 | 255 | 11.1 |
3000 | LY03 | 1 | 4500.00 | 10×30 | 314 | 18.2 |
6000 | LY06 | 2 | 9000.00 | 10×30 | 333 | 28.1 |

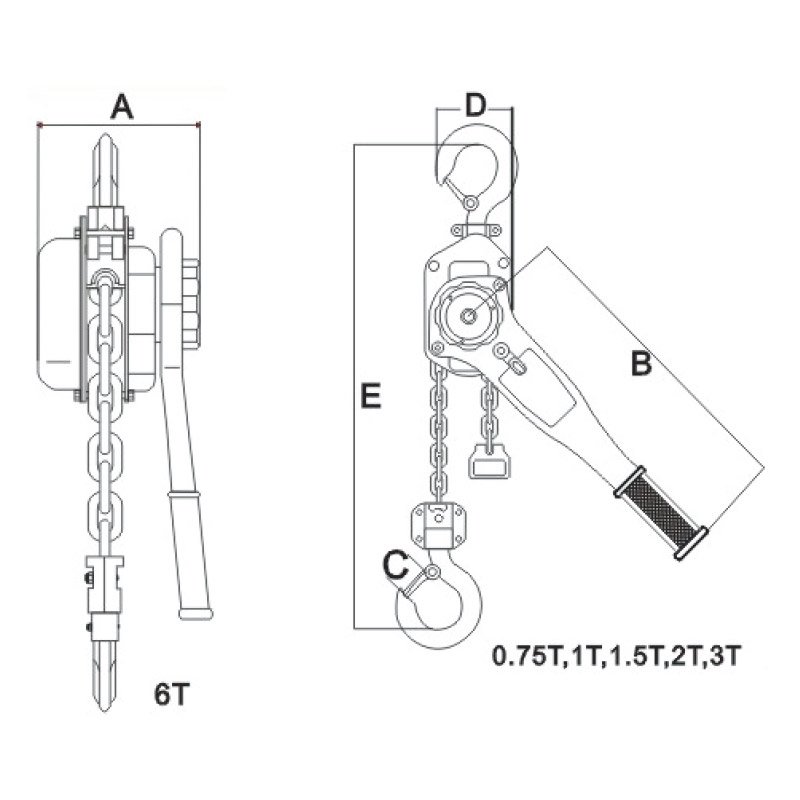

Model | Hmin | A | B | C | D |
LY0.5 | 325 | 148 | 280 | 45 | 96 |
LY0.75 | 325 | 148 | 280 | 45 | 96 |
LY01 | 325 | 148 | 280 | 48 | 96 |
LY15 | 380 | 172 | 410 | 52 | 110 |
LY02 | 380 | 172 | 410 | 60 | 110 |
LY03 | 480 | 195 | 410 | 66 | 145 |
LY06 | 480 | 195 | 410 | 80 | 145 |
