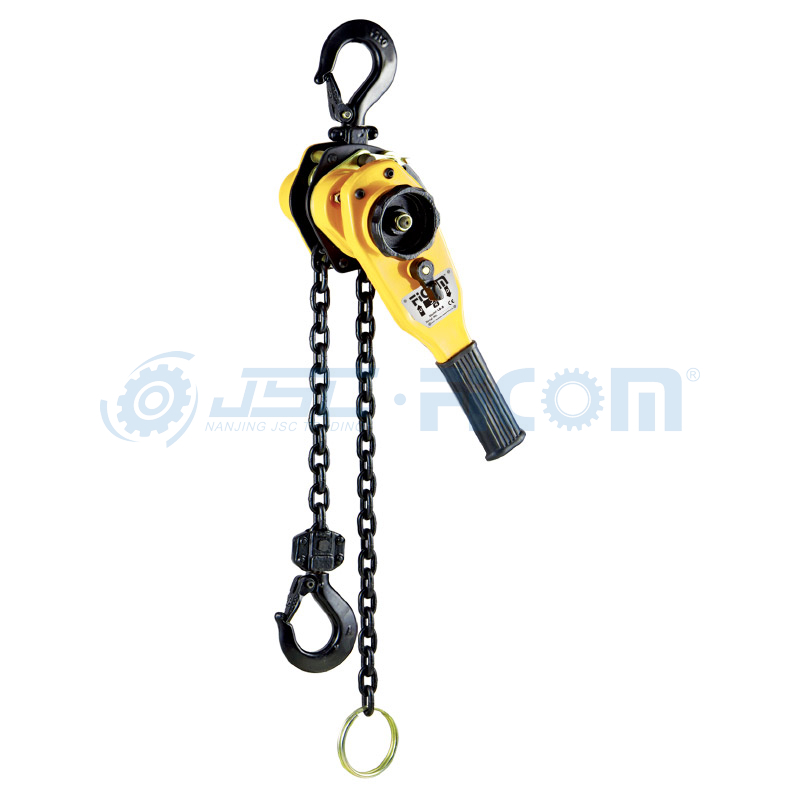

Ratchet Lever Hoist Model: LV (Capecity: 500-6000kg)

Lighter weight,higher efficiency and more compact size,these hoist are valuable in lifting application
The enclosed robust stamped steel housing protects all internal components even in the toughest conditions.
Chain guide and gearbox are almost totally enclosed.Even under the toughest conditions the internal gearbox remains protected.
The hardened load sheave with four precision machined pockets ensures accurate movement of the load chain.
Drop forged load and suspension hooks that yield under overload instead of breaking,are made of high tensile steel.
The hooks are fitted with robust safety latches and rotate 360°.

Quantity:
  • LV
  • FICOM
Overview

Capecity: 500-6000kg

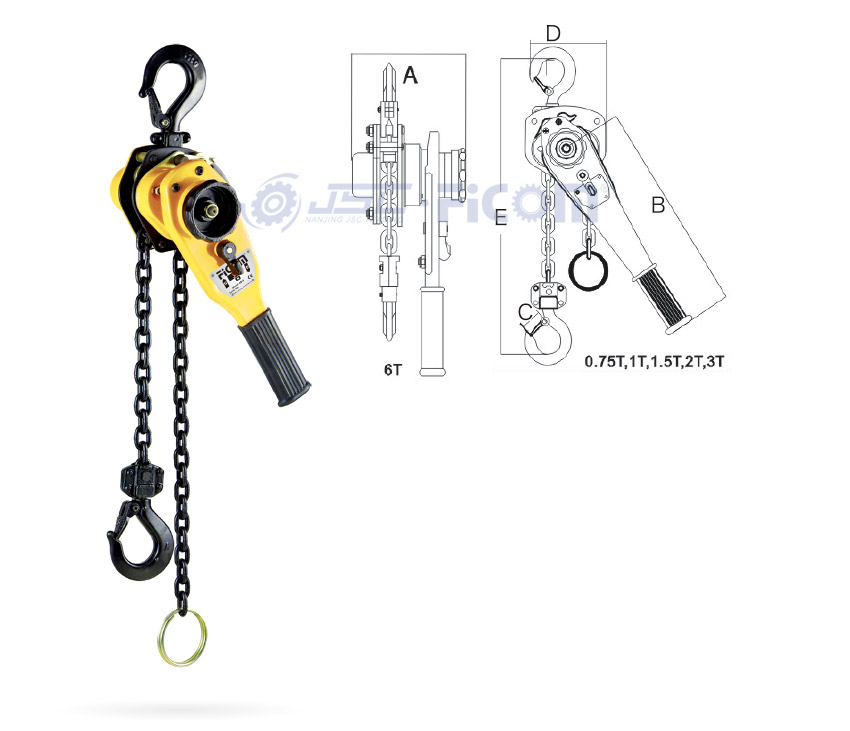

46

The LV model hand lever hoist results from the application of high technology with emphasis on overall performance required in a quality chain hoist.

Technical Parameters

Capacity

(kg)


Model



No.

of chain


Test Load

(Ton)


ChainSize

(mm)


Pull on Hand

Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

500 LV0.5 1 750.00 5×15 108 6.1
750 LV0.75 1 1125.00 6.3×19 147 6.9
1000 LV01 1 1500.00 6.3×19 196 7
1500 LV1.5 1 2250.00 7.1×21 176 9.6
2000 LV02 1 3000.00 8×24 235 10.1
3000 LV03 1 4500.00 9×27 372 15.9
6000 LV06 2 9000.00 9×27 382 25.7

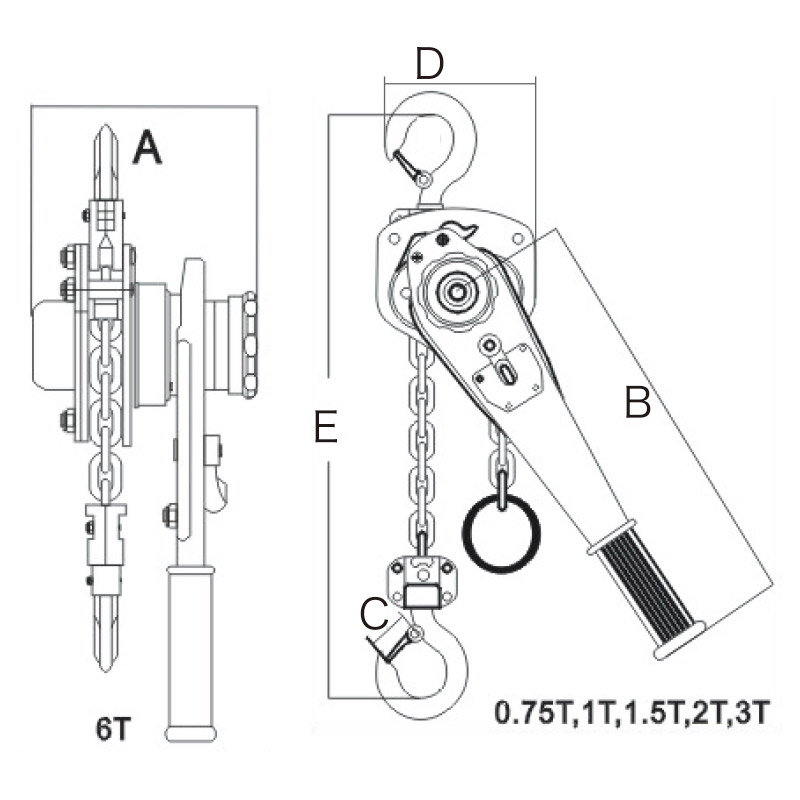

Size Specification (mm)

46-4

Model Hmin A B C D

LV0.5

295 148 256 45 128

LV0.75

295 148 256 45 128
LV01 310 152 256 48 128
LV1.5 335 161 368 52 148

LV02

350 168 368 60 148
LV03 405 191 368 66 180

LV06

550 191 368 80 180
