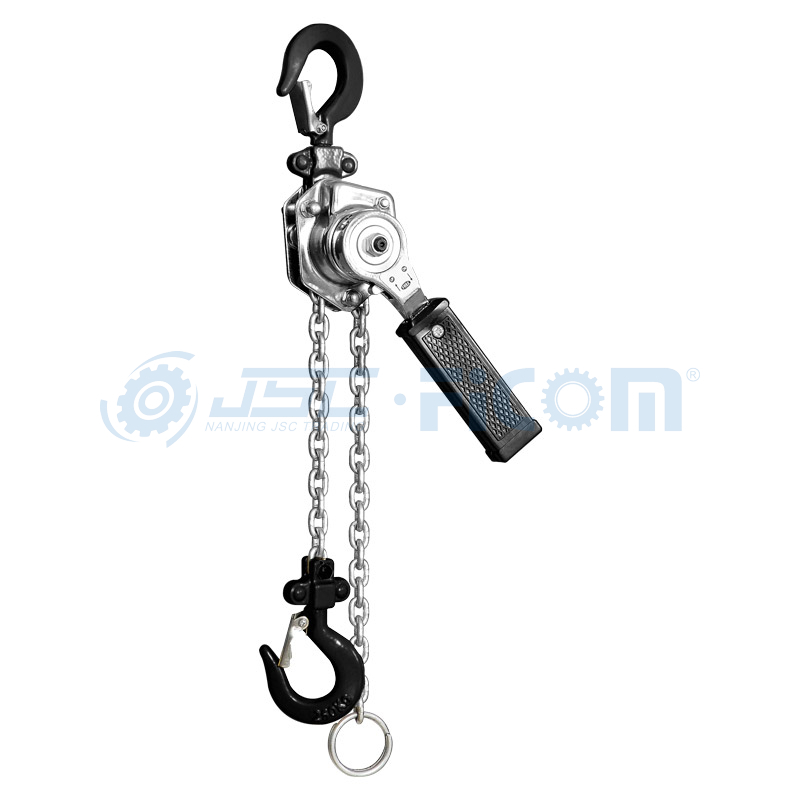

Ratchet Lever Hoist Model: LM (Capcity: 250-500kg)

The drop forged suspension and load hooks,that yield under overload instead of breaking,are made from non-aging,high tensile alloy steel.
The hooks are fitted with robust safety latched and arefree to rotate 360°。
The short and ergonomic hand lever makes the hoist easy to operate.
The enclosed design protects the internal parts from contamination.
All parts of the disc type load brake are manufactured from high quality materials and are corrosion protected.
Availability:
Quantity:
  • LM

  • FICOM

Overview

Capcity: 250-500kg

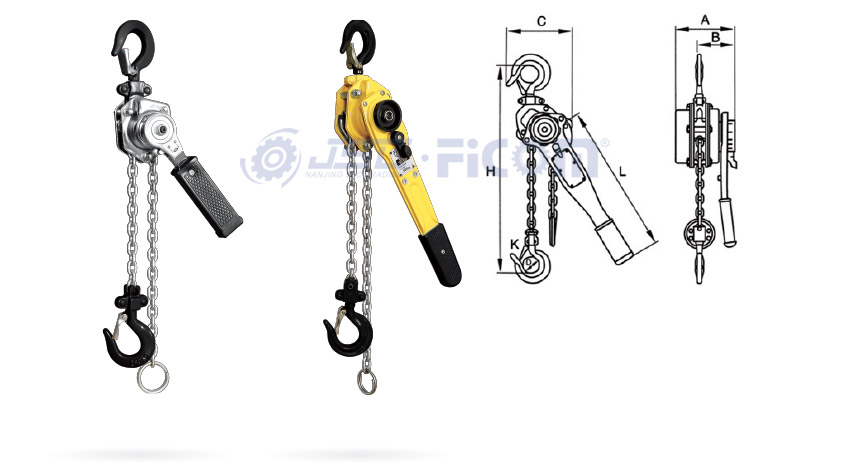

48

This hoist is the smallest,lightest for professional applications.

The extreme low tare weight and the very compact design make the hoist easy to use even in confined working conditions.

Technical Parameters

Capacity

(kg)


Model



No.

of chain


ChainSize

(mm)


Pull on Hand

Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

250 LM0.25 1 4 250 1.8
500 LM0.5 1 5 340 4

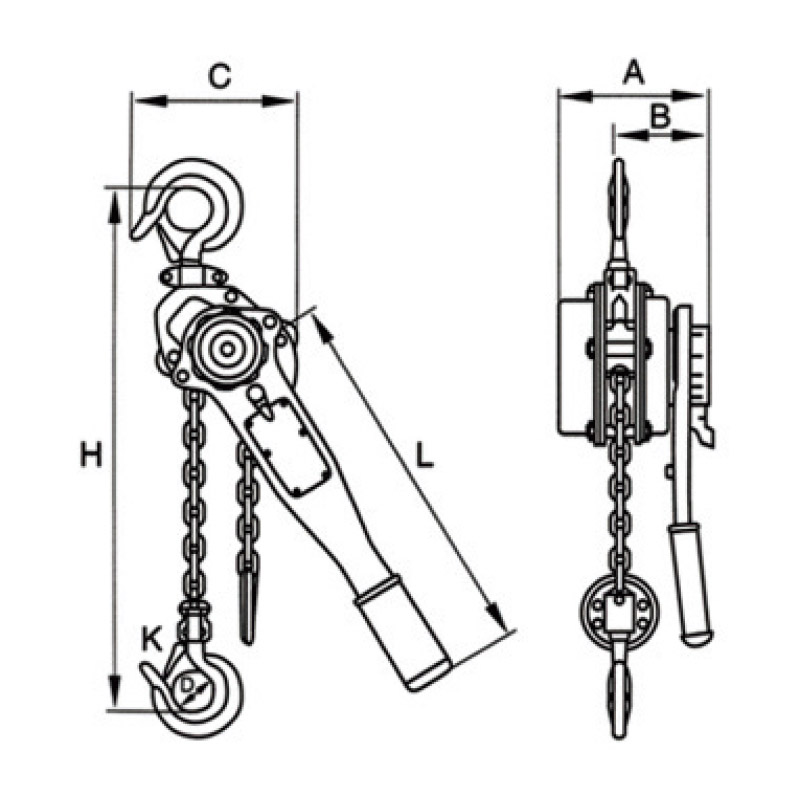

Size Specification (mm)

48-6

Model Hmin A B C D L K

LM0.25

230 92 72 85 30 160 25

LM0.5

260 105 78 80 35 300 25
