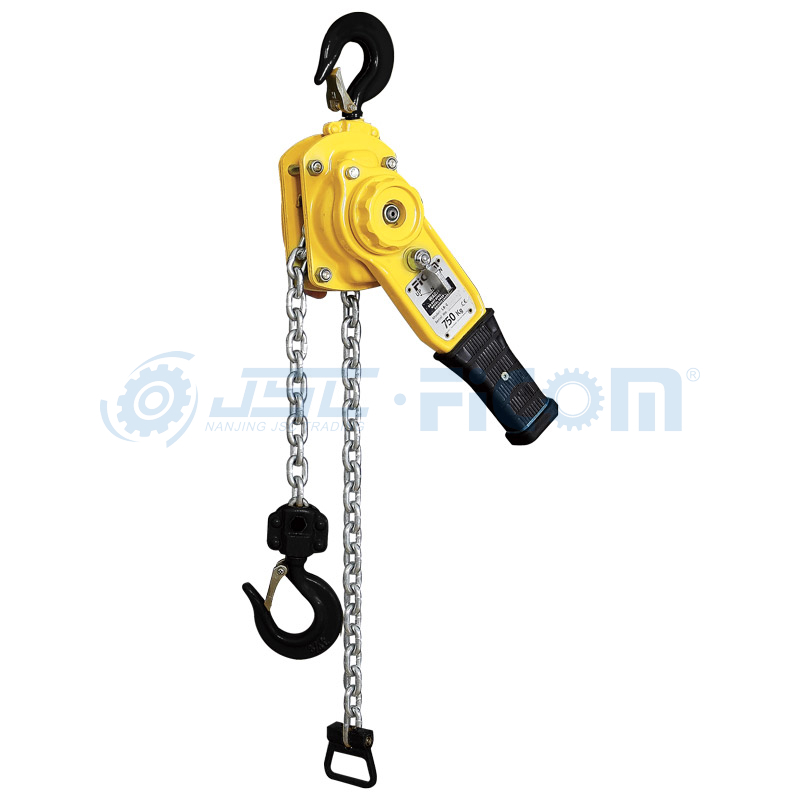

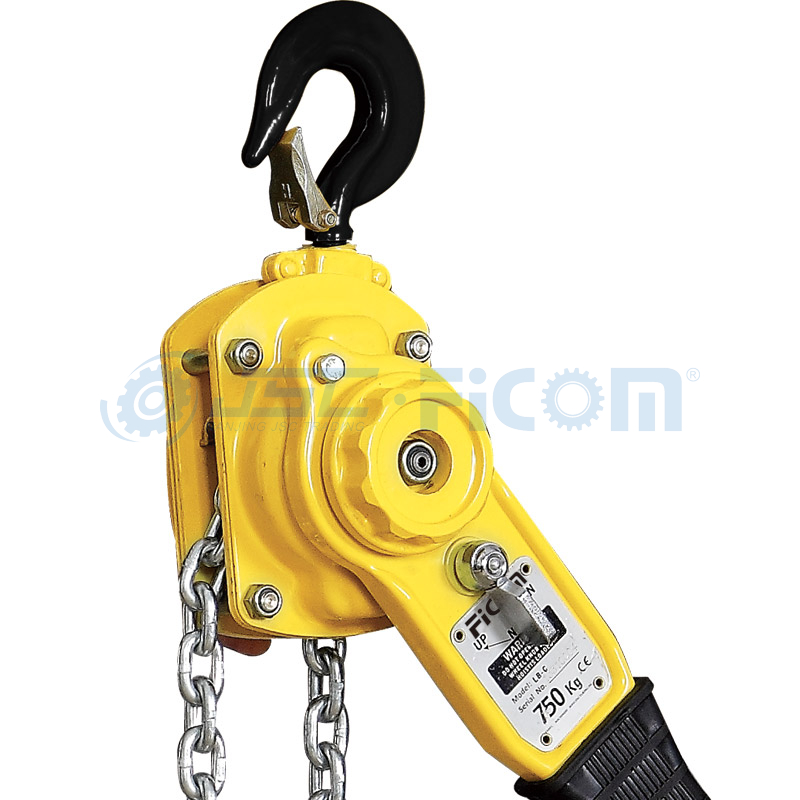

Ratchet Lever Hoist Model: LK (Capcity: 800-9000kg)

Forged suspension and load hooks,manufactured from non-aging,high alloy tempering steel,yield under overload instead of breaking.
The chain guide is integrated into the housing to eliminate fouling and jamming of the chain on the load sheave.
Robust chain stop.
The standard free chaining device serves to quickly attach the load.
Ergonomic handlever with rubber grip.
Hard chromium plated hand wheel.
Automatic screw-and-disc type load brake with corrosion protected components.
Sturdy bottom block with encapsulated connections.
Due to optimized gearing a minimum effort is required to operate the short hand lever.
Availability:
Quantity:
  • LK

  • FICOM

Overview

Capcity: 800-9000kg

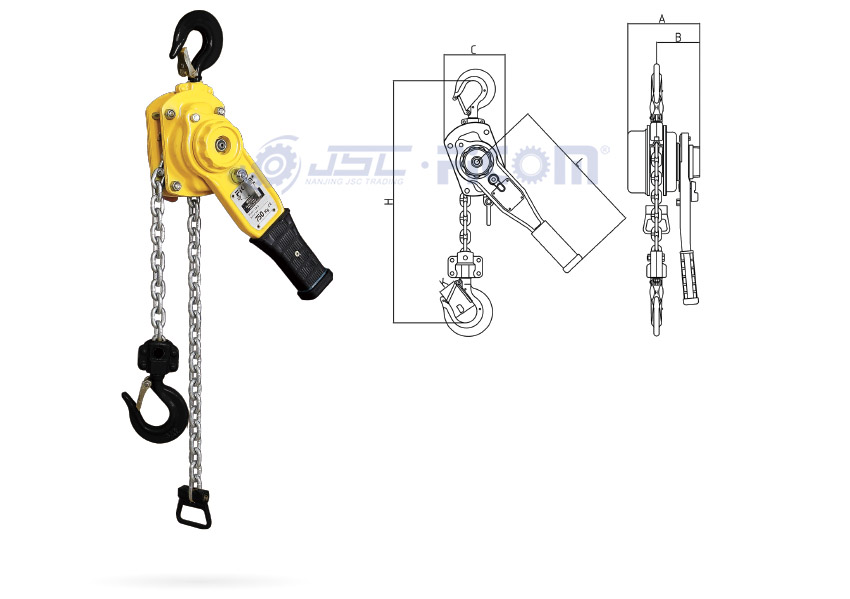

47

The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions.

A hand lever hoist with a robust stamped steel construction and compact design.

The low tare weight and a smooth free chaining device make the LK a handy,universal tool.

Technical Parameters

Capacity

(kg)


Model



No.

of chain


ChainSize

(mm)


Pull on Hand

Chain at Wll

N

Net Weight at Standard 3m Lift

(kg)

800 LK0.8 1 6×18 180 7.4
1600 LK1.6 1 8×24 380 11.6
3200 LK3.2 1 10×30 450 19.9
6300 LK6.3 2 10×30 500 29.4
9000 LK09 3 10×30 550 41

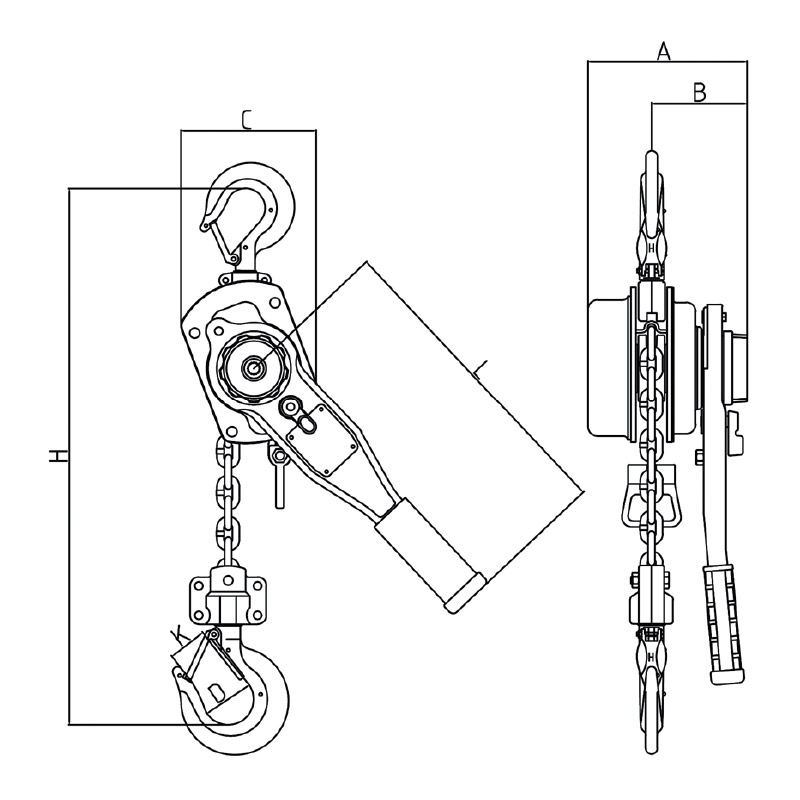

Size Specification (mm)

47-4

Model Hmin A B C D L K

LK0.8

320 148 90 136 40 250 28

LK1.6

380 172 98 160 52 300 38
LK3.2 480 200 115 180 60 375 42
LK6.3 600 200 115 235 68 375 50

LK09

740 200 115 235 85 375 55
