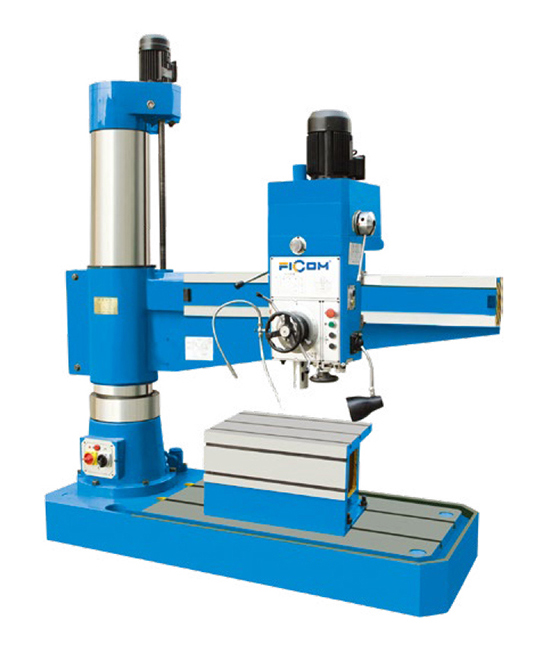

Radial Drilling Machine: Key Features and Technical Insights

The Radial Drilling Machine is a versatile and efficient tool widely used in manufacturing and fabrication industries. Known for its ability to handle large and heavy workpieces with precision, it offers unmatched flexibility in drilling operations.

Key Features of Radial Drilling Machine

1. High Precision and Stability

The robust construction of radial drilling machines ensures minimal vibrations during operation, leading to precise drilling outcomes. The arm and spindle movement can be locked securely, maintaining accuracy even for complex tasks.

2. Swiveling and Adjustable Arm

The radial arm can swivel around the column and move vertically, allowing for drilling at multiple angles and positions. This design provides flexibility when working on irregular or large workpieces.

3. Heavy-Duty Spindle Drive

Radial drilling machines come equipped with high-torque spindle drives, capable of handling heavy loads and ensuring smooth drilling operations in hard materials.

4. Wide Range of Speeds and Feeds

Operators can select from various speed and feed settings to match the material properties and desired hole dimensions, optimizing productivity and tool life.

5. Durability and Robust Construction

Constructed from high-grade cast iron and steel, these machines are designed to withstand rigorous industrial use, offering long-term reliability.

Applications of Radial Drilling Machine

1. Heavy-Duty Fabrication

Widely used in shipbuilding, aerospace, and automotive sectors for drilling large and thick components.

2. Metalworking Industries

Ideal for creating precision holes in cast iron, steel plates, and non-ferrous metals.

3. Maintenance and Repair Operations

Frequently employed in maintenance workshops for repairing machinery parts.

4. Tool and Die Making

Essential in the manufacturing of molds and dies, where accurate and deep drilling is required.

Advantages of Radial Drilling Machine

1. Enhanced Flexibility

The ability to move the spindle to various positions without repositioning the workpiece saves time and increases efficiency.

2. Increased Productivity

With adjustable speed and feed options, operators can quickly adapt to different materials and job requirements.

3. User-Friendly Operation

The ergonomic design and intuitive controls make it easy for operators to achieve high-quality results.

4. Cost-Effective Solution

Despite its advanced features, the radial drilling machine remains a cost-effective investment for industrial applications.

Maintenance Tips for Radial Drilling Machine

Lubrication: Regularly apply lubricant to moving parts to reduce friction and wear.

Alignment Checks: Periodically inspect the spindle and arm alignment to maintain accuracy.

Electrical Components: Ensure all wiring and connections are secure and free from damage.

Cleaning: Keep the machine clean and free from metal chips and debris.

Routine Inspections: Schedule preventive maintenance to detect and address potential issues early.

FAQs

1. How does the radial arm improve drilling efficiency?

The radial arm allows the operator to position the drill over large workpieces without moving them, reducing setup time and ensuring precise drilling at different angles.

2. What materials can be drilled using a radial drilling machine?

Radial drilling machines can handle a wide variety of materials, including mild steel, stainless steel, cast iron, aluminum, and other non-ferrous metals.

3. How do you ensure accurate hole placement with a radial drilling machine?

Accurate hole placement can be achieved by properly locking the arm and spindle in position, using layout markings, and ensuring correct alignment before drilling.

4. What safety measures should be followed when using a radial drilling machine?

Operators should wear appropriate PPE, secure workpieces properly, and ensure all guards are in place. Regular machine maintenance also contributes to safe operation.

5. Can radial drilling machines handle high-production environments?

Yes, high-end models are designed for continuous operation and can handle high-production environments efficiently with minimal downtime.

The radial drilling machine stands out as an indispensable tool in various industrial sectors due to its versatility, precision, and efficiency. By understanding its technical features and applications, businesses can optimize their drilling processes and achieve superior results.
