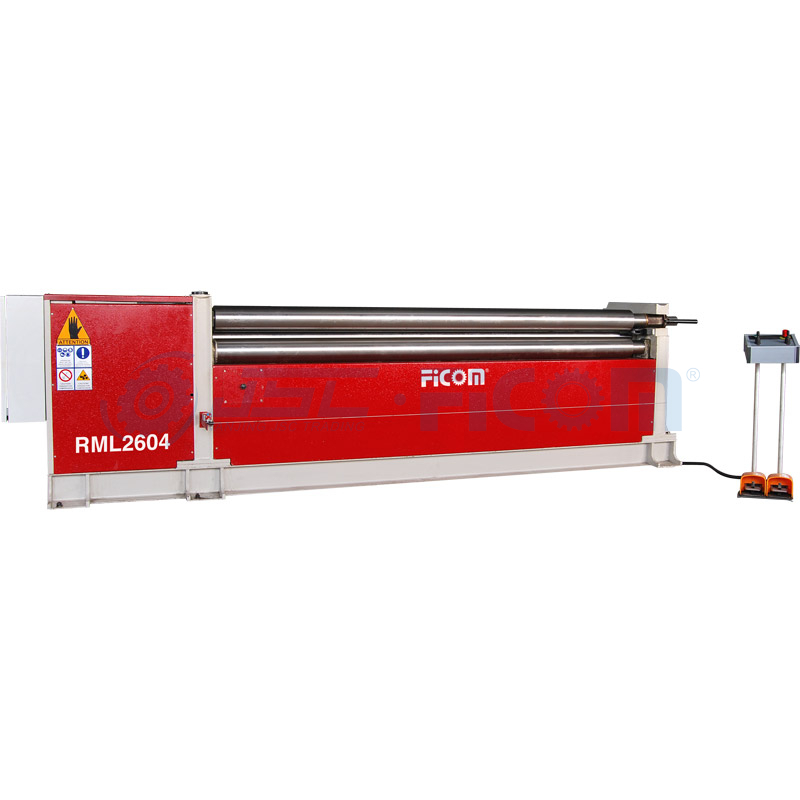

RML Series Rolling Machine

· RML model is made of complete steel construction, strong and powerfull. The top and lower rolls are driven by motor + gears system.

Quantity:
  • RML
  • FICOM
Overview

Standard Equipment
·
Induction hardened rolls.
· Backroll with motor.
· Cone bending device.
· Body steel construction.
· Rolls are produced by special steel.
· Machine designed in asymetrical working principle.
· Central rollers powered with electric motor + gear system.
· Upper roll is openable by side.
· Seperate control panel.


Special Equipment
· Digital display for backroll
· Lower roll with motor
· Extended rolls
· Profile rolls


RML

Technical Parameters
Model No. RML1606 RML2604 RML1608 RML2106 RML2605 RML3104
working length 1600mm 2600mm 1600mm 2100mm 2600mm 3100mm
pre-bending 5mm 3mm 7mm 5mm 4mm 3mm
max. thickness 6mm 4mm 8mm 6mm 5mm 4mm
top rollφ 140mm 140mm 170mm 170mm 170mm 170mm
min. bendingφ 210mm 225mm 255mm 255mm 255mm 255mm
motor power 2.2Kw 2.2Kw 4Kw 4Kw 4Kw 4Kw
bending speed 6m/min. 6m/min. 4.5m/min. 4.5m/min. 4.5m/min. 4.5m/min.
length 2800mm 3150mm 3150mm 3650mm 4150mm 4650mm
width 750mm 820mm 820mm 820mm 820mm 820mm
height
1060mm 1130mm 1130mm 1130mm 1130mm 1130mm
G.W.
1450Kg 1900Kg 1900Kg 2300Kg 2750Kg 3200Kg


Model No. RML2107 RML2606 RML3105 RML2108 RML2607 RML3106
working length 2100mm 2600mm 3100mm 2100mm 2600mm 3100mm
pre-bending 6mm 5mm 4mm 7mm 6mm 5mm
max. thickness 7mm 6mm 5mm 8mm 7mm 6mm
top rollφ 190mm 190mm 190mm 200mm 200mm 200mm
min. bendingφ 285mm 285mm 285mm 300mm 300mm 300mm
motor power 4Kw 4Kw 4Kw 5.5Kw 5.5Kw 5.5Kw
bending speed 5m/min. 5m/min. 5m/min. 5m/min. 5m/min. 5m/min.
length 3900mm 4400mm 4650mm 3900mm 4400mm 4650mm
width 920mm 920mm 920mm 950mm 950mm 950mm
height
1200mm 1200mm 1200mm 1250mm 1250mm 1250mm
G.W.
3600Kg 4200Kg 4600Kg 3800Kg 4400Kg 4800Kg


· Data based upon steel 240 N/mm2 yield point.
· For cone bending, all bending values must be reduced 50%.
· All specifications are subject to change without notice.
