RM4011/RM4014/RM5016 Radial Drilling Machine

Quantity:
  • RM4011/RM4014/RM5016
  • FICOM
Overview

· Mechanical driven

· Mechanical clamping

· Mechanical changing speed

· Up & down by power

· Auto feeding

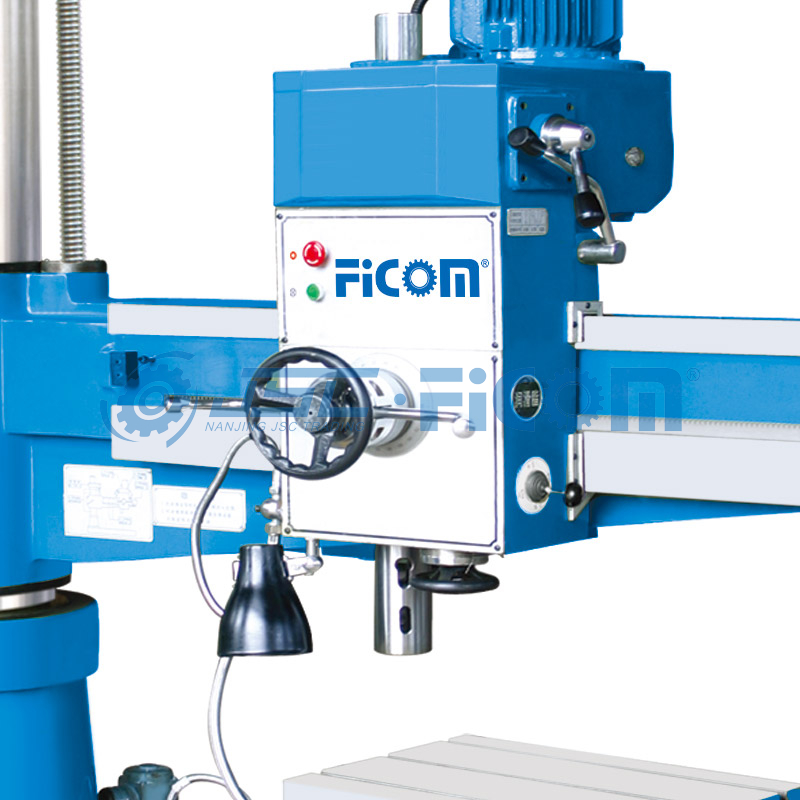

RM4011


Technical Parameters
Model No. RM4011 RM4014 RM5016
max drilling capacity 40mm 40mm 50mm
distance between spindle surface to work table 260-1050mm 260-1150mm 260-1150mm
distance between spindle center to column center 360-1/1100mm 360-1400mm 360-1600mm
spindle travel 200mm 200mm 220mm
spindle taper MT4 MT4 MT5
spindle speed range 75,130,240,380,660,1200r.p.m 75,130,240,380,660,1200r.p.m 78,135,240,350,590,1100r.p.m
spindle steps 6 6 6
spindle feed range 0.10-0.25r.p.m 0.10-0.25r.p.m 0.10-0.56r.p.m
spindle feed steps 3 3 3
spindle rotary angel 360°
360° 360°
main motor power 2.2Kw 2.2Kw 4Kw
up & down motor power 0.75Kw 1.5Kw 1.5Kw
packing size 1500×705×2200mm 1800×810×2300mm 2170×950×2450mm
G.W. 1600Kg 2200Kg 2800Kg


Standard Accessories
rise block taper sleeve tool releasing wrench drift
eyelet bolts box work table


Optional Accessories
quick instead chuck tapping chuck angle work table
