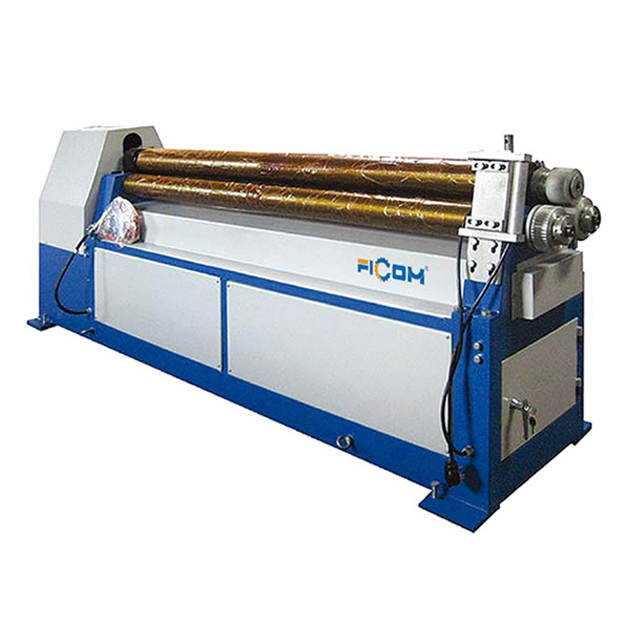

RM Series 3-Roller Bending Machine with Prebend

· The up and down parts of RM series three roller bending machine utilizes a machine construction. The transportation parts being machine driven. The upper roller can be moved up and down by the motor to discharge the workpiece. The machine can be according to customer's requirement to be supplied with specific rollers to work angle and steel pipe.

Availability:

Quantity:



Inquire Add to Basket

Model:
RM
Brand:
FICOM

Product Description

Overview

-1-大

Technical Parameters

Model No.	RM-3×1600	RM-3×2000	RM-3×2500	RM-4×2000
maximum thickness	3mm	3mm	3mm	4mm
maximum width	1600mm	2000mm	2500mm	2000mm
yield limit	245mm	245mm	245mm	245mm
minimum coil diameter	200mm	200mm	400mm	200mm
top roller diameter	155mm	155mm	200mm	155mm
bottom roller diameter	165mm	165mm	165mm	165mm
motor	2.2/1.1Kw	2.2/1.1Kw	5.5/3Kw	2.2/1.1Kw
G.W.	1450Kg	1650Kg	2800Kg	1900Kg
size(L×W×H)	2500×900×1100mm	2900×900×1100mm	4100×900×1100mm	3600×900×1100mm

Model No.	RM-4×2500	RM-6×2500	RM-8×2000	RM-10×1300
maximum thickness	4mm	6mm	8mm	10mm
maximum width	2500mm	2500mm	2000mm	1300mm
yield limit	245mm	245mm	245mm	245mm
minimum coil diameter	400mm	400mm	400mm	400mm
top roller diameter	200mm	200mm	200mm	200mm
bottom roller diameter	165mm	165mm	165mm	165mm
motor	5.5/3Kw	5.5/3Kw	5.5/3Kw	5.5/3Kw
G.W.	3500Kg	3800Kg	3300Kg	2800Kg
size(L×W×H)	4100×900×1100mm	4100×900×1100mm	3600×900×1100mm	2500×860×950mm

3-Roller Bending Machine JSC Trading 3-Roller Bending Machines RM Series Prebend

RM Series 3-Roller Bending Machine with Prebend
